Atlas

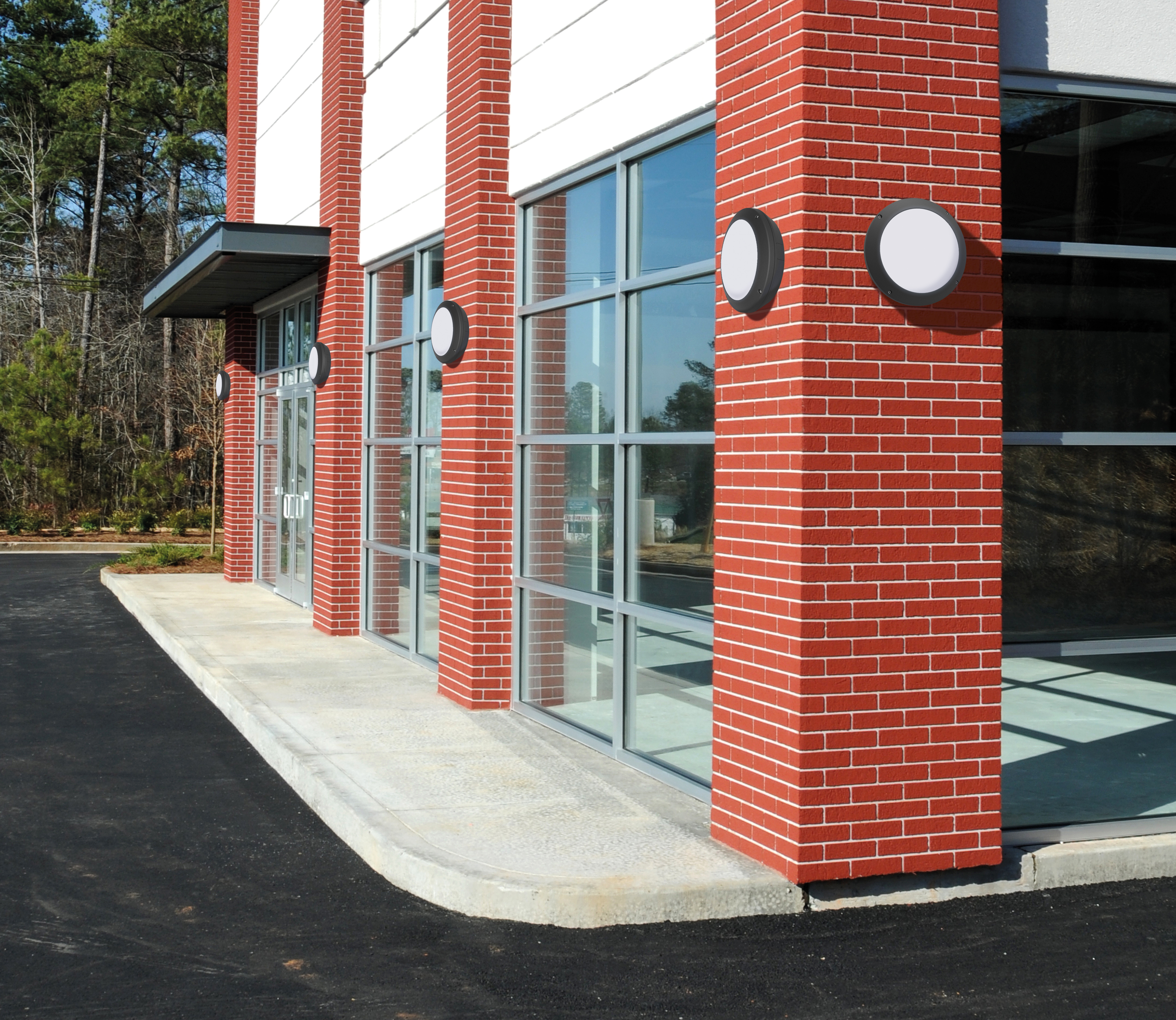

Decorative bulkhead family that can be used for internal or external applications

The Atlas is a decorative bulkhead that can be used for internal or external applications, with a range of optional accessories. The Polycarbonate housing is high-impact and features a unique LED module built into the opal diffuser.

A bulkhead suitable for use indoors and outdoors. 1250 and 2100 lumens with microwave sensor & emergency control gear options10% corridor function available as standard via dip switch on microwave versions

High impact polycarbonate housing with unique LED module built into the opal diffuse

Rear and four-side conduit entry points for ceiling or wall mounting

Additional Product Options

We offer additional product options to give ultimate control and flexibility to match any application

3000K Colour Temperature

3000K light provides a warmer more comforting effect that can be preferred in many of applications including certain public areas and domestic settings. Insert 3, eg. LBH213K

Self-Test Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations. Insert 3MST, eg. LBH214K3MST

DALI Dimmable Driver

Dimmable functionality provides a brilliant energy saving option to almost all industrial and commercial applications ensuring the correct light levels are maintained whilst only using the power that is needed to achieve this. Insert D, eg. LBH214KD

DALI Addressable Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations. Insert D3M, eg. LBH214KD3M

Code	Driver Type	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code LBH154K	Driver Type Fixed Output	Lumen Output (lm) 1250	Max Wattage (W) 12.5	Efficacy (Lm/W) 100	Add to Spec Remove from Spec Processing
Code LBH154K3M	Driver Type Fixed Output + Emergency	Lumen Output (lm) 1250	Max Wattage (W) 12.5	Efficacy (Lm/W) 100	Add to Spec Remove from Spec Processing
Code LBH154KMW	Driver Type Corridor Function	Lumen Output (lm) 1250	Max Wattage (W) 12.5	Efficacy (Lm/W) 100	Add to Spec Remove from Spec Processing
Code LBH154KMW3M	Driver Type Corridor Function + Em	Lumen Output (lm) 1250	Max Wattage (W) 12.5	Efficacy (Lm/W) 100	Add to Spec Remove from Spec Processing
Code LBH214K	Driver Type Fixed Output	Lumen Output (lm) 2100	Max Wattage (W) 21	Efficacy (Lm/W) 100	Add to Spec Remove from Spec Processing
Code LBH214K3M	Driver Type Fixed Output + Emergency	Lumen Output (lm) 2100	Max Wattage (W) 21	Efficacy (Lm/W) 100	Add to Spec Remove from Spec Processing
Code LBH214KMW	Driver Type Corridor Function	Lumen Output (lm) 2100	Max Wattage (W) 21	Efficacy (Lm/W) 100	Add to Spec Remove from Spec Processing
Code LBH214KMW3M	Driver Type Corridor Function + Em	Lumen Output (lm) 2100	Max Wattage (W) 21	Efficacy (Lm/W) 100	Add to Spec Remove from Spec Processing
