LuxPanel Connect

High-performance panel lighting with advanced Bluetooth NLC technology, providing smart, energy-efficient illumination, perfect for any commercial environment.

View Product Family

Provides smart, high-performance LED lighting for offices and commercial spaces. With Bluetooth NLC integration, it optimises energy use, enhances control, and supports sustainability, while ensuring easy installation and scalability.

Integrated Bluetooth NLC PIR sensor provides adjustable motion sensitivity, daylight control, remote access, scheduling, and scene setting for fully automated lighting.

Dynamic lighting automation minimises energy waste, reduces running costs, and enhances sustainability. Ideal for office and commercial environments.

Emitting up to 4200lm (15W) of neutral white light (4000K) with OSRAM LED driver

TPa rated, UGR19 compliant, 70k hour lifetime, backed with 5-year warranty

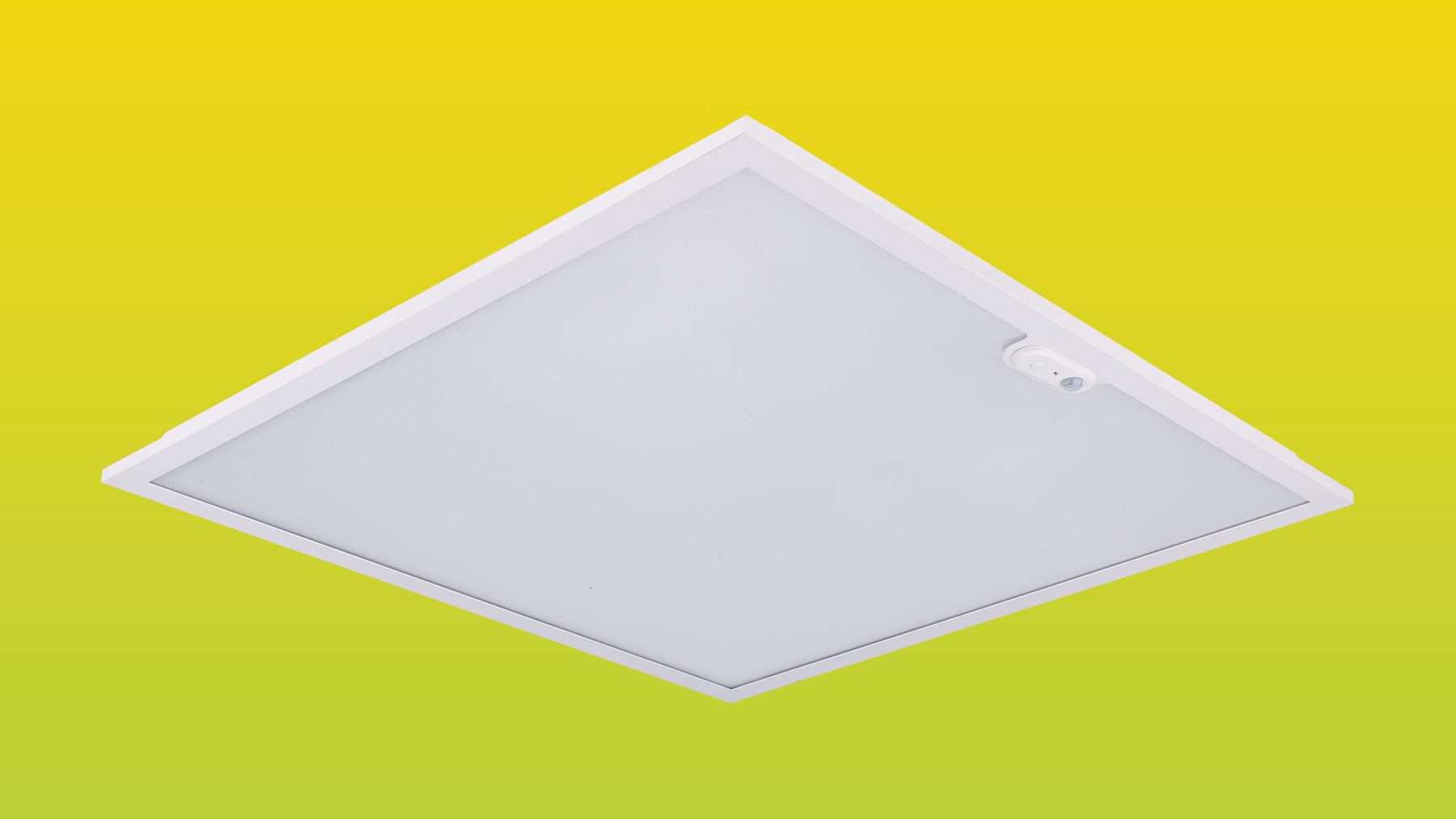

Backlit LED technology with a 34mm slimline depth - ideal for 15mm/24mm standard exposed ceiling grids

Next-Gen Lighting with Motion Sensing and Platform App

With motion sensitivity adjustment, default un-provisioned behaviour, integration with DALI emergency modules, and a CRI Ra over 90, It provides seamless system inter-operability, energy efficiency, and enhanced user control via the Platform App. Delivering smarter, adaptable lighting systems based on globally recognised open standards. With motion sensing and open-standards support, it delivers smart, efficient, and adaptable lighting via the Platform App.

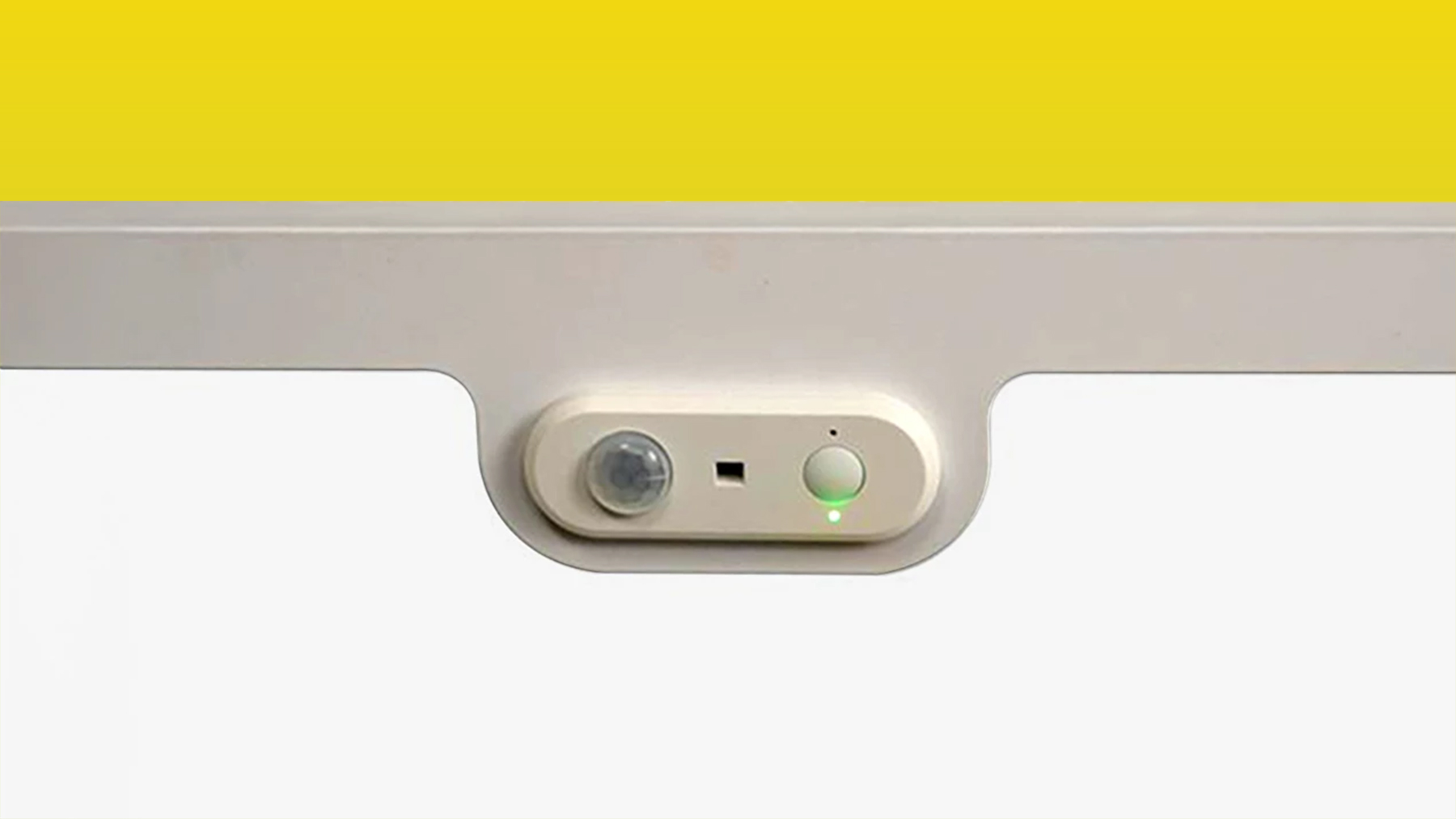

Integral D4i Bluetooth NLC compliant PIR Sensor

Integral D4i Bluetooth NLC compliant Platform Sensor - A D4i certified Bluetooth NLC PIR sensor is installed in the LuxPanel Connect to allow for seamless integration into any Bluetooth NLC ecosystem (such as Luceco Platform). Adjustable motion sensitivity allows the user to tailor the sensitivity of the PIR to suit the space and aids in reducing false triggering.

Get Platform ELT with just a remote DALI EM conversion kit

Integral D4i Bluetooth NLC compliant PIR Sensor

Code	Driver Type	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Standard Deviations of Colour Matching	L/B at Life	Add to Spec
Code LPBC66W28LPW940PIR	Driver Type Digital Dimmable	Lumen Output (lm) 2800	Max Wattage (W) 21.5	Efficacy (Lm/W) 130	Standard Deviations of Colour Matching <3	L/B at Life L70-B50	Add to Spec Remove from Spec Processing
Code LPBC66W35LPW940PIR	Driver Type Digital Dimmable	Lumen Output (lm) 3500	Max Wattage (W) 27.5	Efficacy (Lm/W) 127	Standard Deviations of Colour Matching <3	L/B at Life L70-B50	Add to Spec Remove from Spec Processing
Code LPBC66W42LPW940PIR	Driver Type Digital Dimmable	Lumen Output (lm) 4200	Max Wattage (W) 35	Efficacy (Lm/W) 120	Standard Deviations of Colour Matching <3	L/B at Life L70-B50	Add to Spec Remove from Spec Processing
