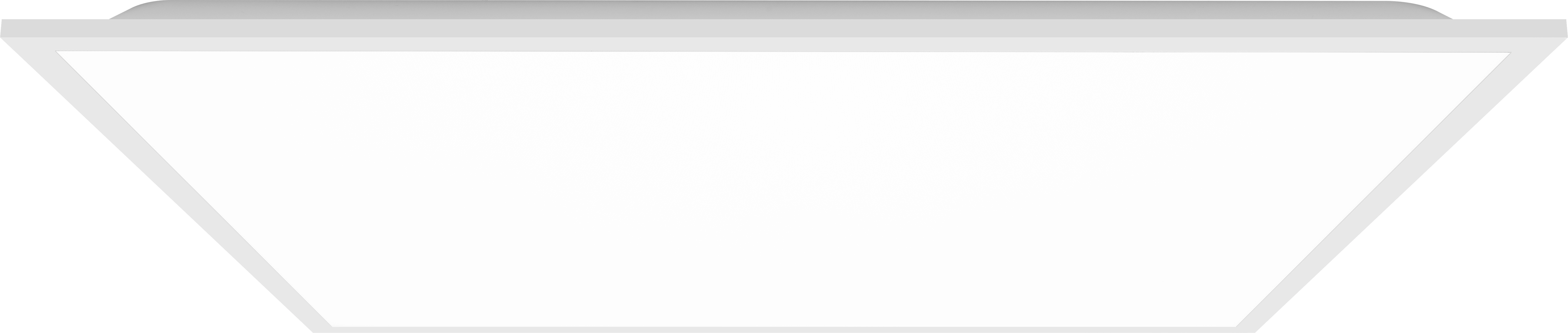

All sizes are manufactured in a white aluminium frame with a TPb UGR19-compliant diffuser. The Luxpanel Essence range offers an impressive 50,000-hour lifetime and a 5-year standard warranty.

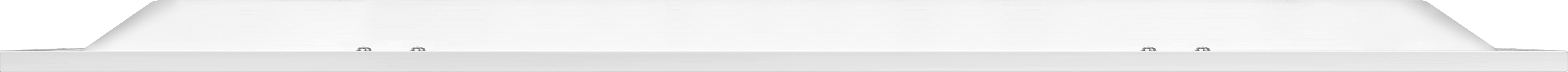

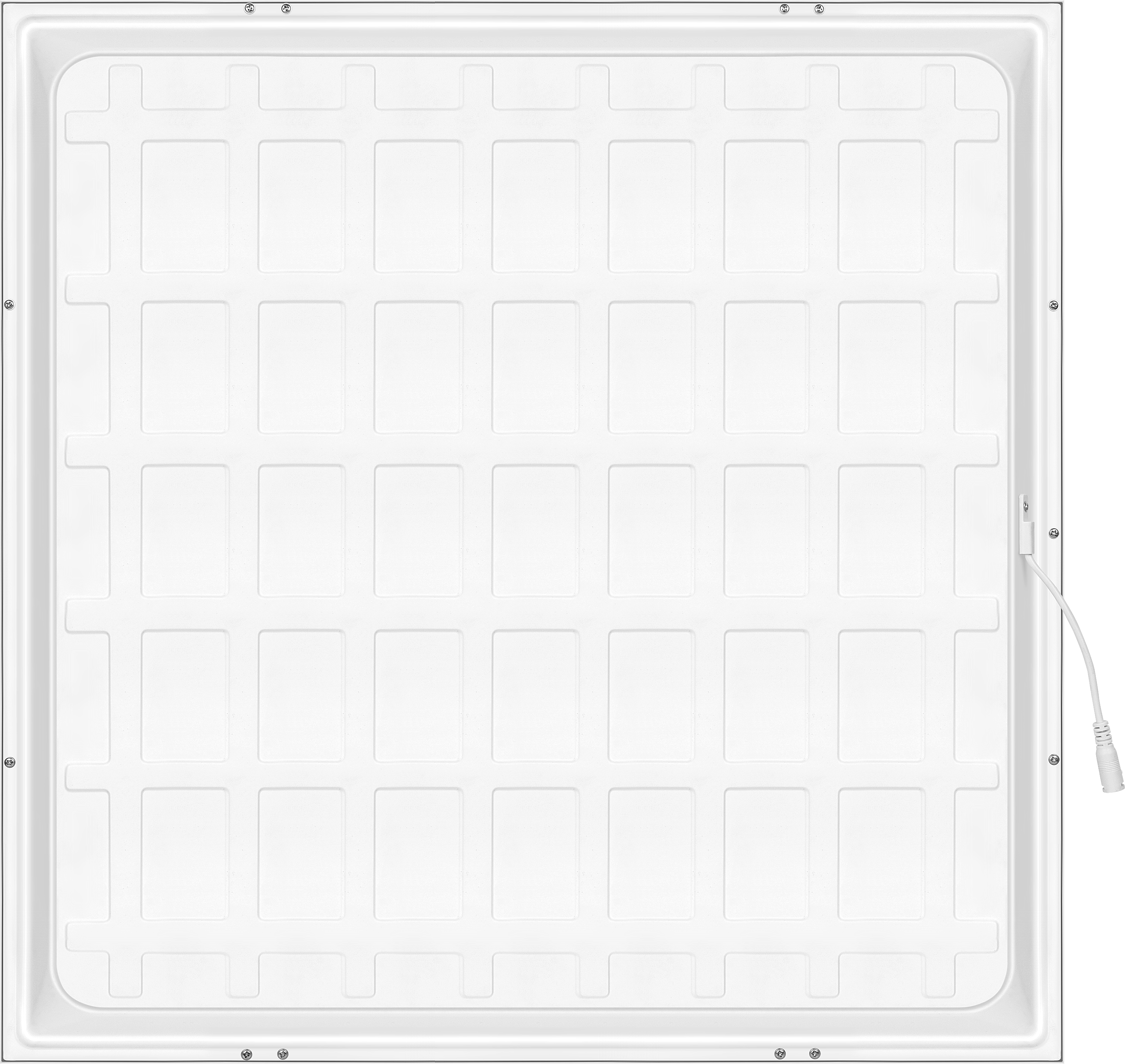

Backlit LED technology with slimline 27mm depth
600 x 600 or 1200 x 600 white aluminium frame with TPb UGR 19 compliant diffuser
Recessed mounted suitable for use in 15mm or 24mm standard exposed ceiling grids
Producing a 4000K pure white CCT
Accessories include Luceco Remote Emergency Packs, Surface Frames and Suspension kits
| Code | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Standard Deviations of Colour Matching | L/B at Life | Add to Spec |
|---|---|---|---|---|---|---|---|
|
Code
LES66W28L40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2800
|
Max Wattage (W)
25.5
|
Efficacy (Lm/W)
110
|
Standard Deviations of Colour Matching
<6
|
L/B at Life
L70-B50
|
|
|
Code
LES66W28D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2800
|
Max Wattage (W)
25.5
|
Efficacy (Lm/W)
110
|
Standard Deviations of Colour Matching
<6
|
L/B at Life
L70-B50
|
|
|
Code
LES66W28L30
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2800
|
Max Wattage (W)
25.5
|
Efficacy (Lm/W)
110
|
Standard Deviations of Colour Matching
<6
|
L/B at Life
L70-B50
|
|
|
Code
LES66W28L60
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2800
|
Max Wattage (W)
25.5
|
Efficacy (Lm/W)
110
|
Standard Deviations of Colour Matching
<6
|
L/B at Life
L70-B50
|
|
|
Code
LES66W35L40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
3500
|
Max Wattage (W)
32
|
Efficacy (Lm/W)
109
|
Standard Deviations of Colour Matching
<6
|
L/B at Life
L70-B50
|
