LBDL6D40-03

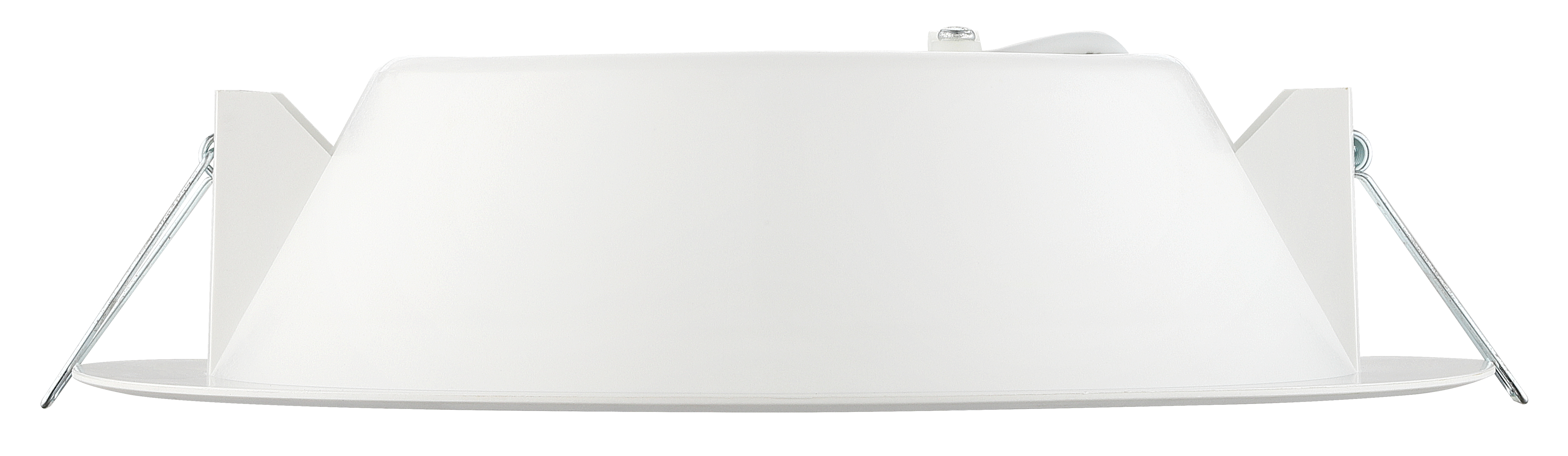

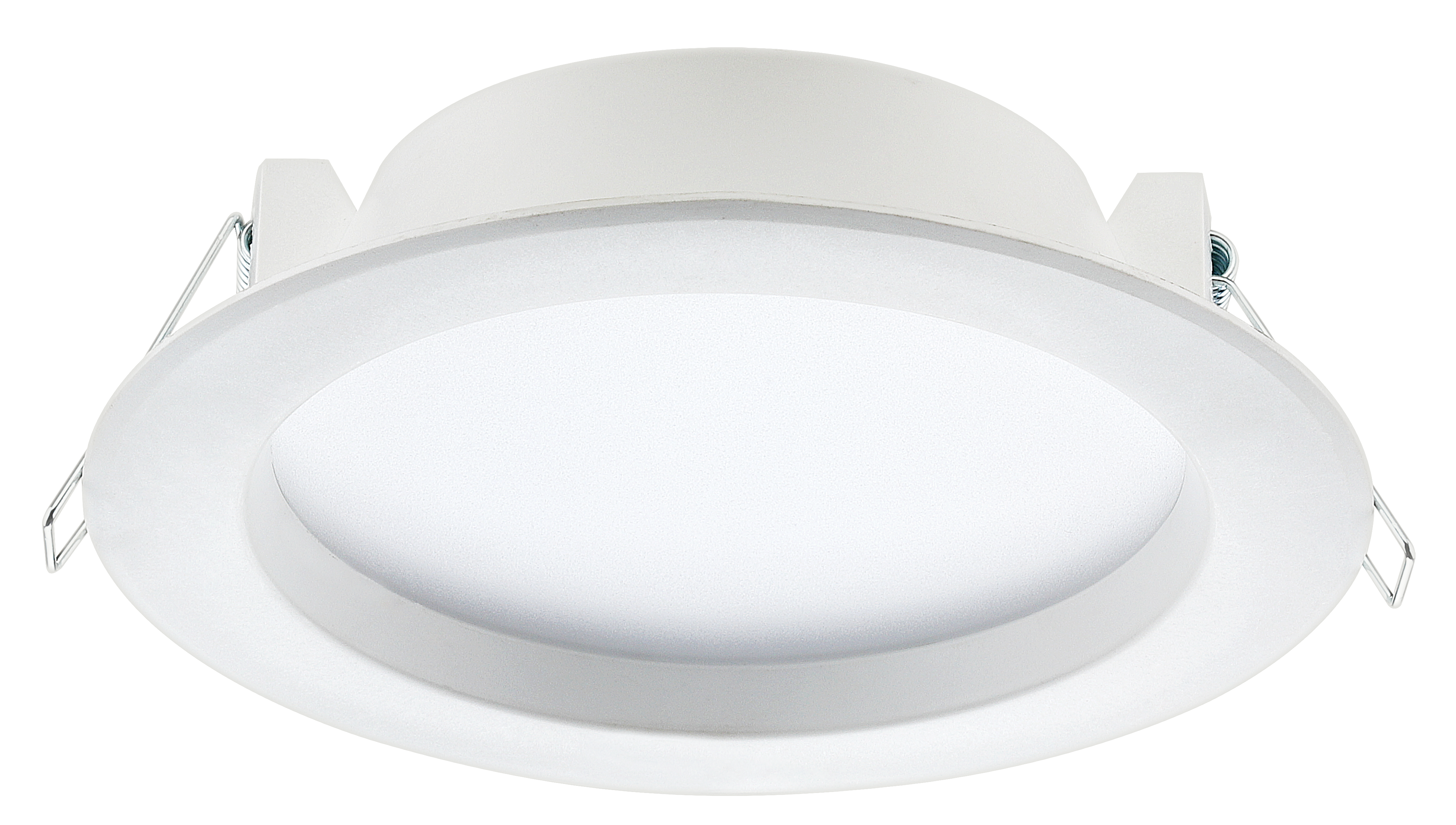

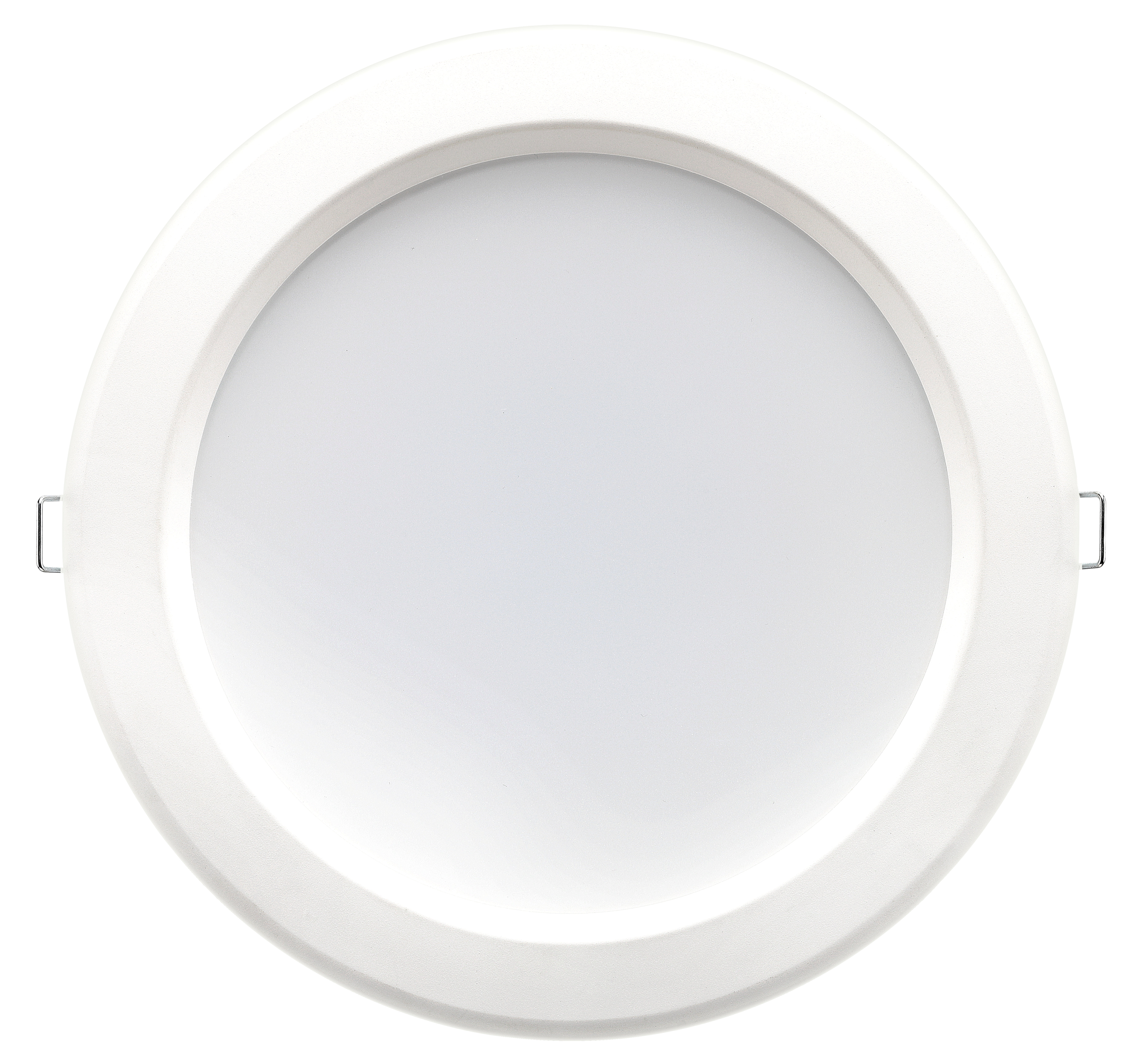

Carbon downlight 197mm 1500 lumens and DALI driver
Technical Data
| Code | LBDL6D40 |
| Driver Type | Digital Dimmable |
| Lumen Output (lm) | 1500 |
| Max Wattage (W) | 13.5 |
| Efficacy (Lm/W) | 111 |
| Colour Temp (CCT) (K) | 4000 |
| Beam Angle (degrees) | 100 |
| CRI | >80 |
| Base Colour | White - RAL 9016 (Traffic White) |
Dimensions and Installation
| Cutout (mm) | 175 |
| Unpacked Depth (mm) | 197 |
| Unpacked Width (mm) | 0 |
| Unpacked Height (mm) | 47 |
| Unpacked Net Weight (kg) | 0.38 |
Performance & Safety
| Lifetime (h) | 100000 |
| L/B at Life | L70-B10 |
| L70 Hours (h) | 132000 |
| Operating Temperature (C) | -20°C to +25°C |
| E-Class | Class2 |
| Power Factor | >0.5 |
| IK Rating | IK04 |
| Fire Rating | TPB |
