Element Fire Rated Downlights
The Element Fire Rated Downlights are specially designed lighting fixtures that offer a compact design suitable for shallow ceiling depths.

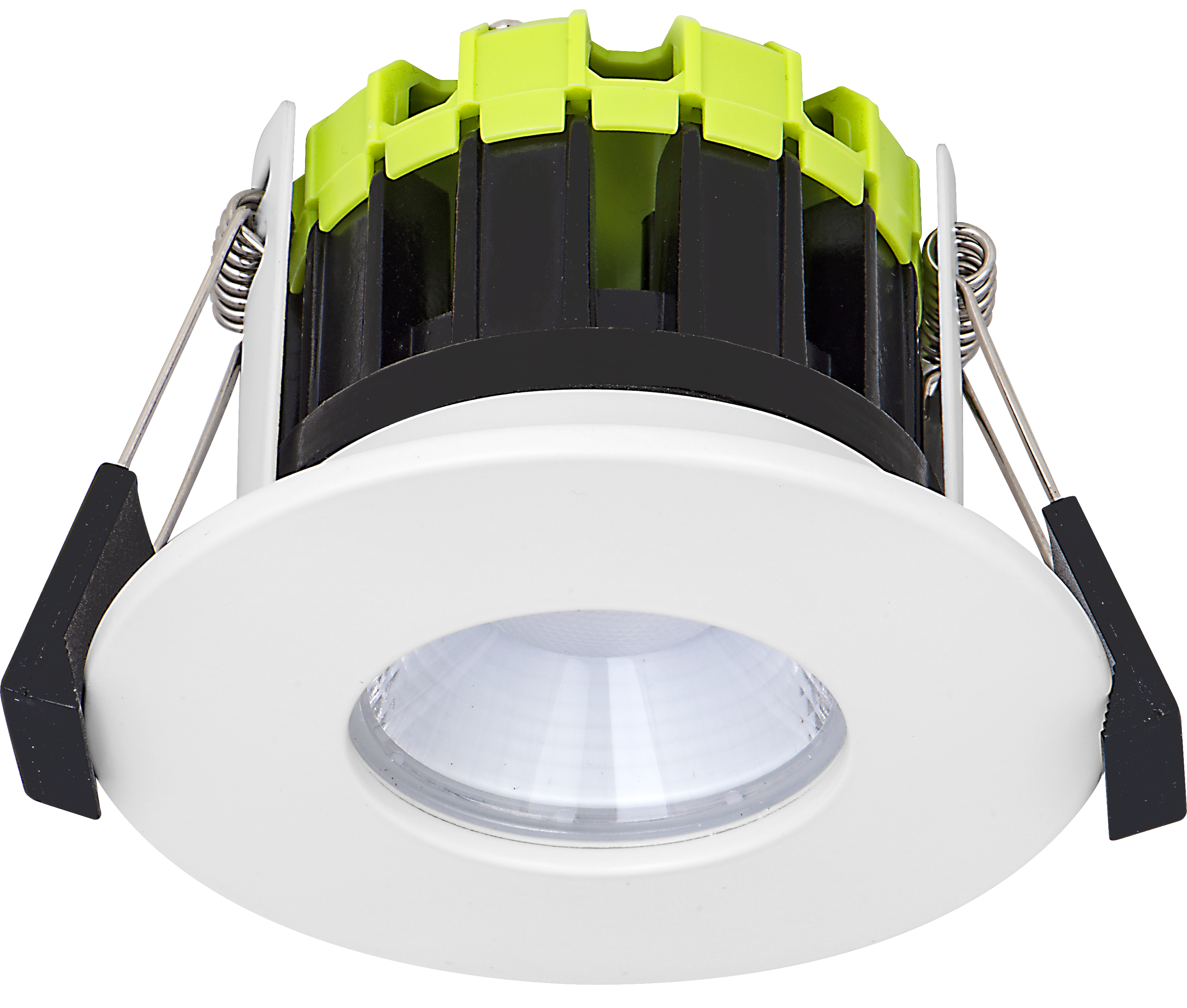

The Luceco Element Fire Rated Downlights are compact lighting fixtures designed for shallow ceilings. They feature twist and lock bezel accessories for easy customisation. With secure spring clips and innovative thermal rod™ technology, these downlights maximise thermal transfer and air circulation, increasing the lifespan of the LED chips
Fire rated downlight suitable for residential and commercial applications with shallow ceiling voids of 40mm

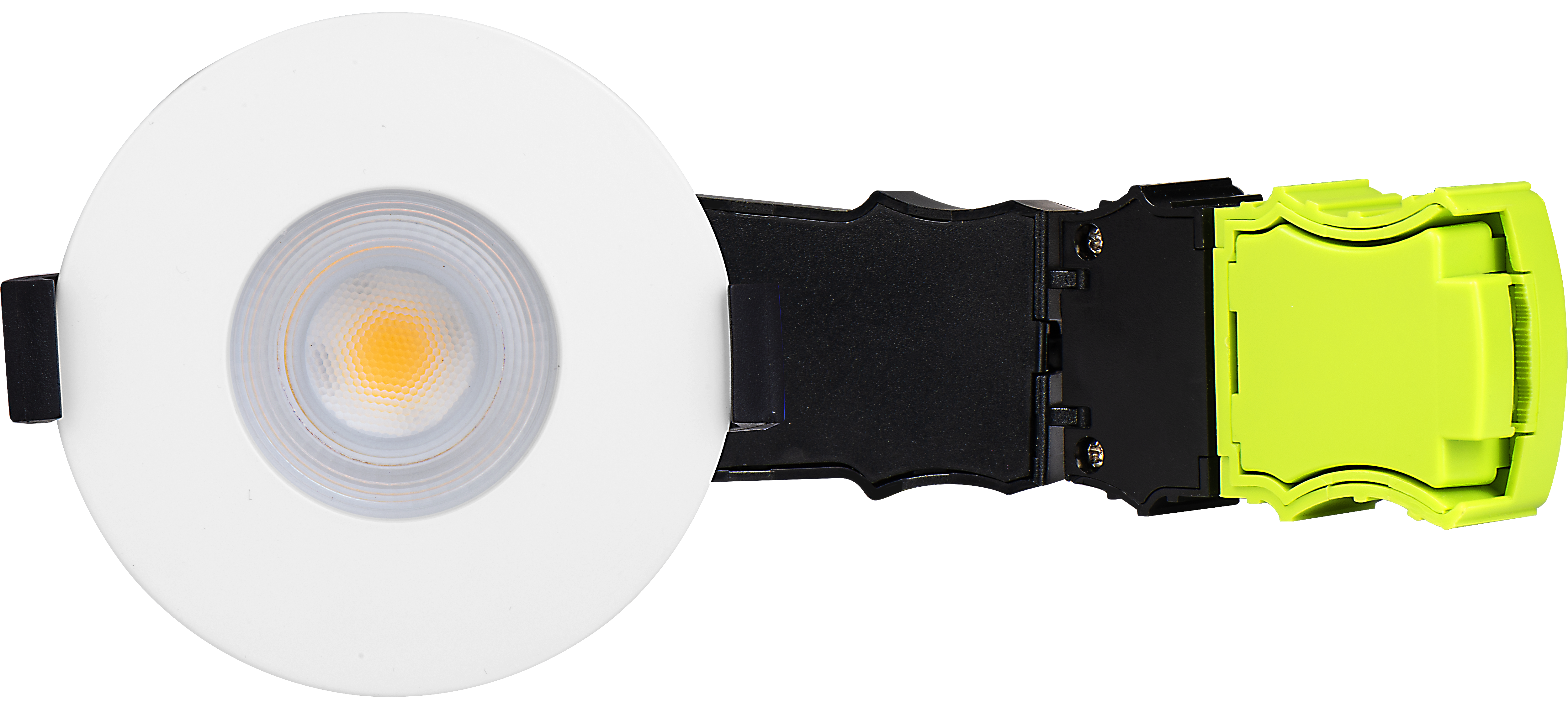

Plug and play connector, specifically designed for the first fix and then second fix electrical installations

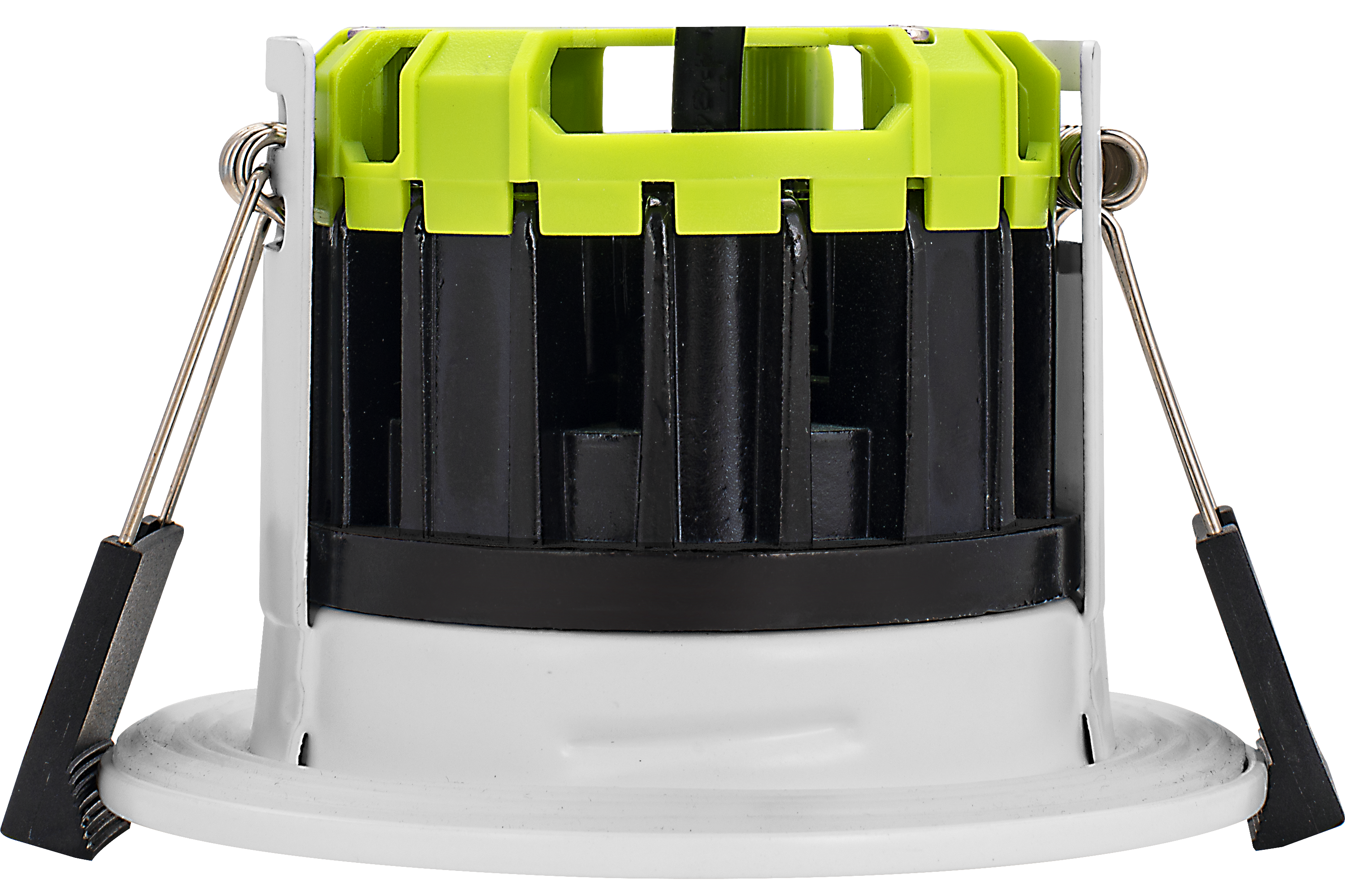

Efficient heat sink design for optimum performance, 600 – 800 lumens, efficacy 100Llm/cW

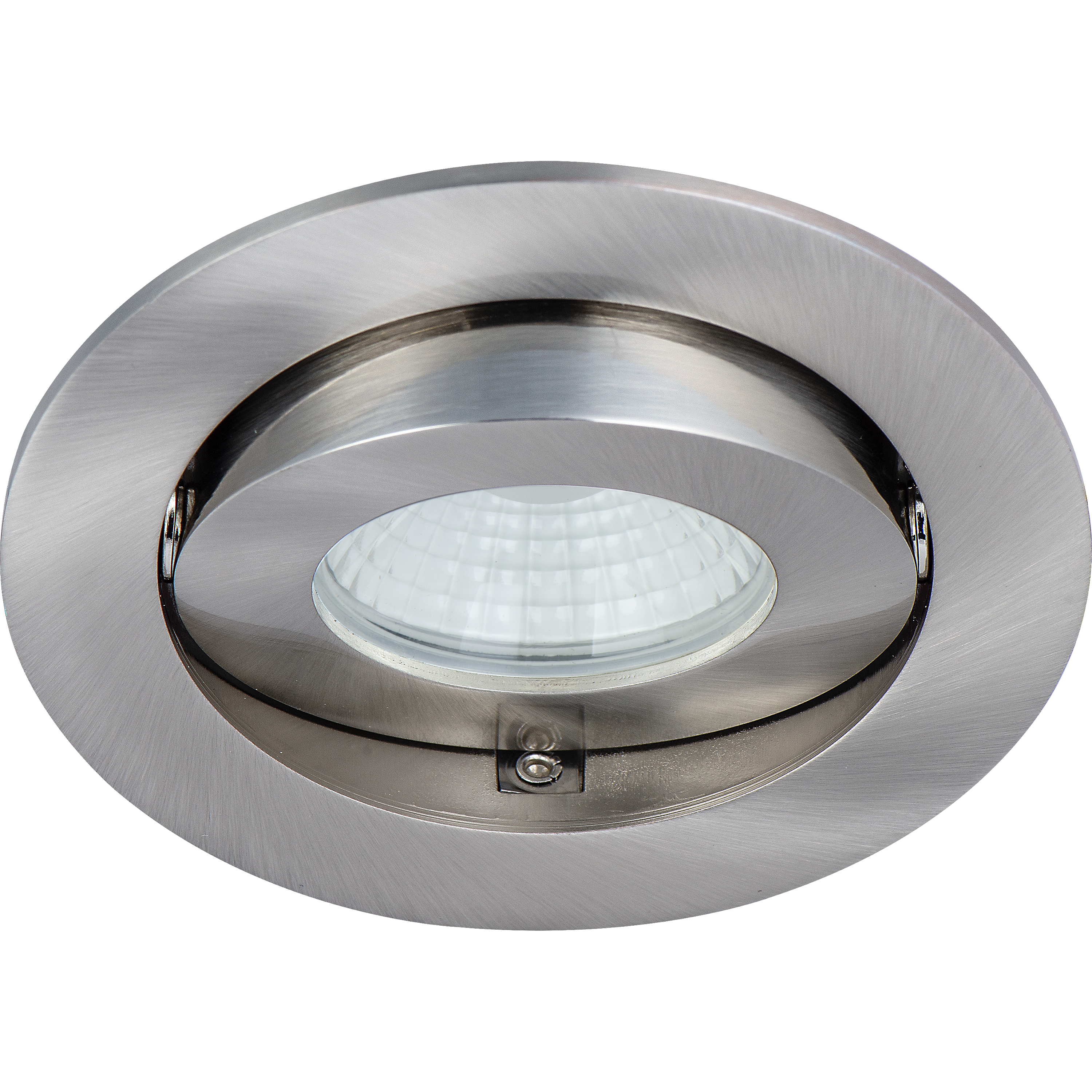

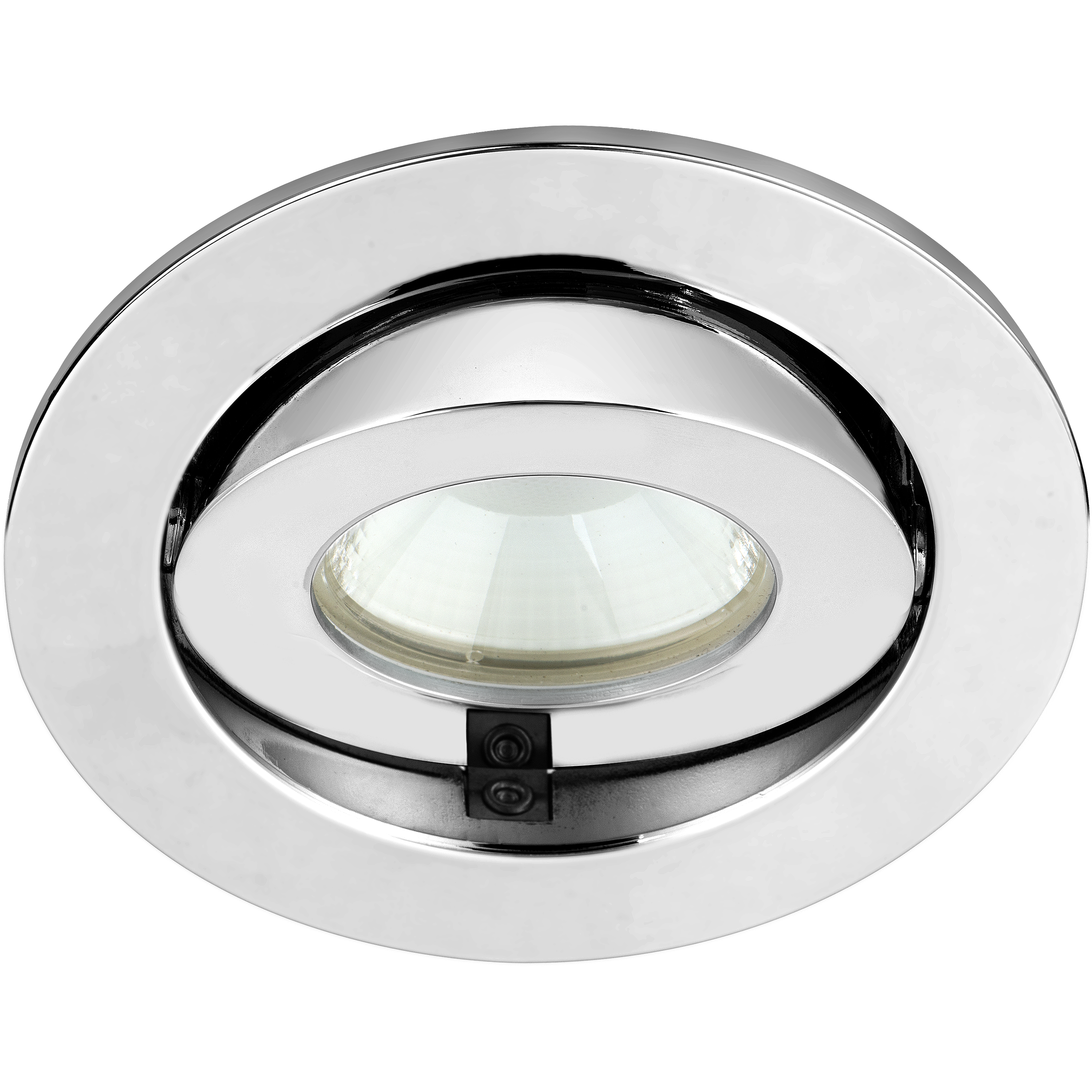

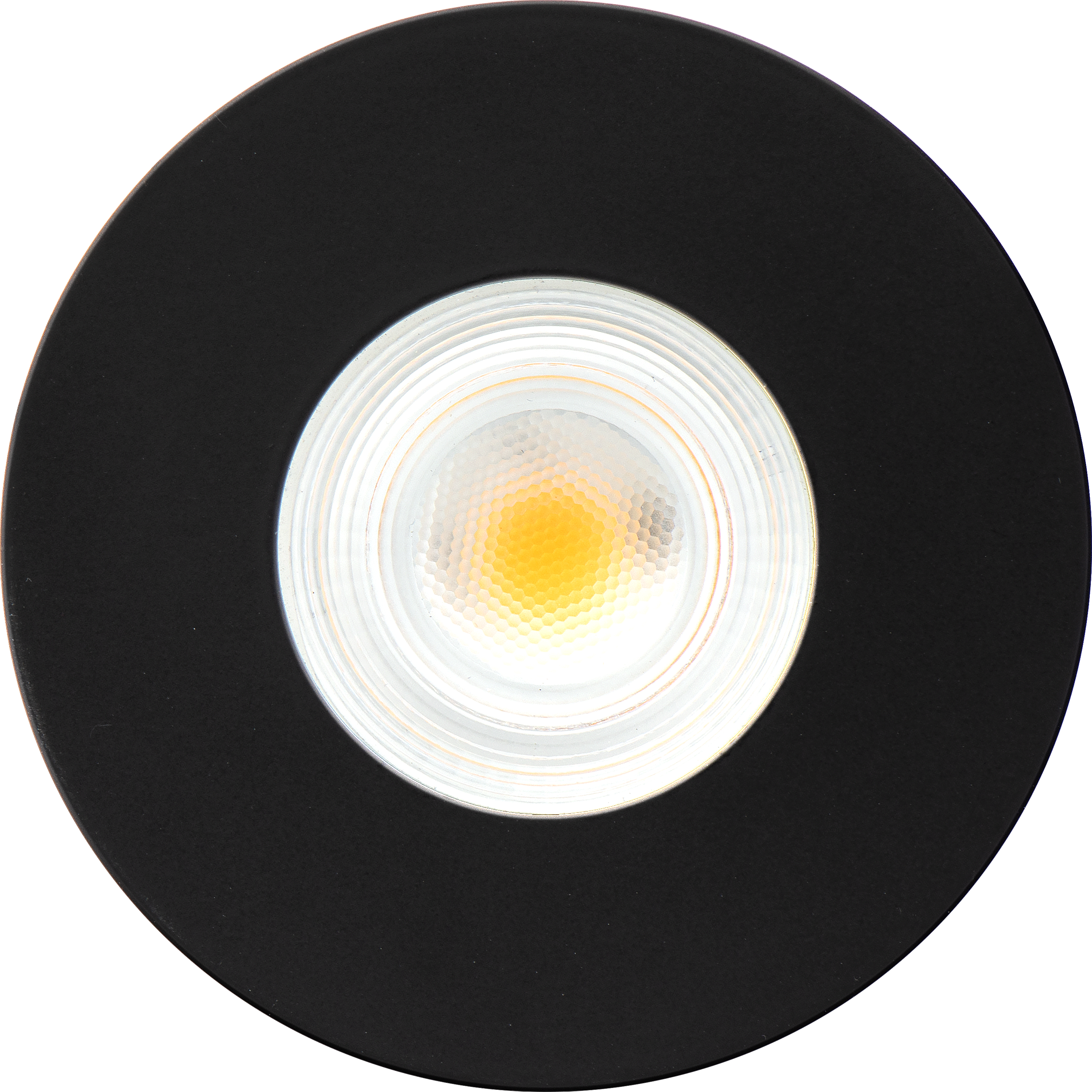

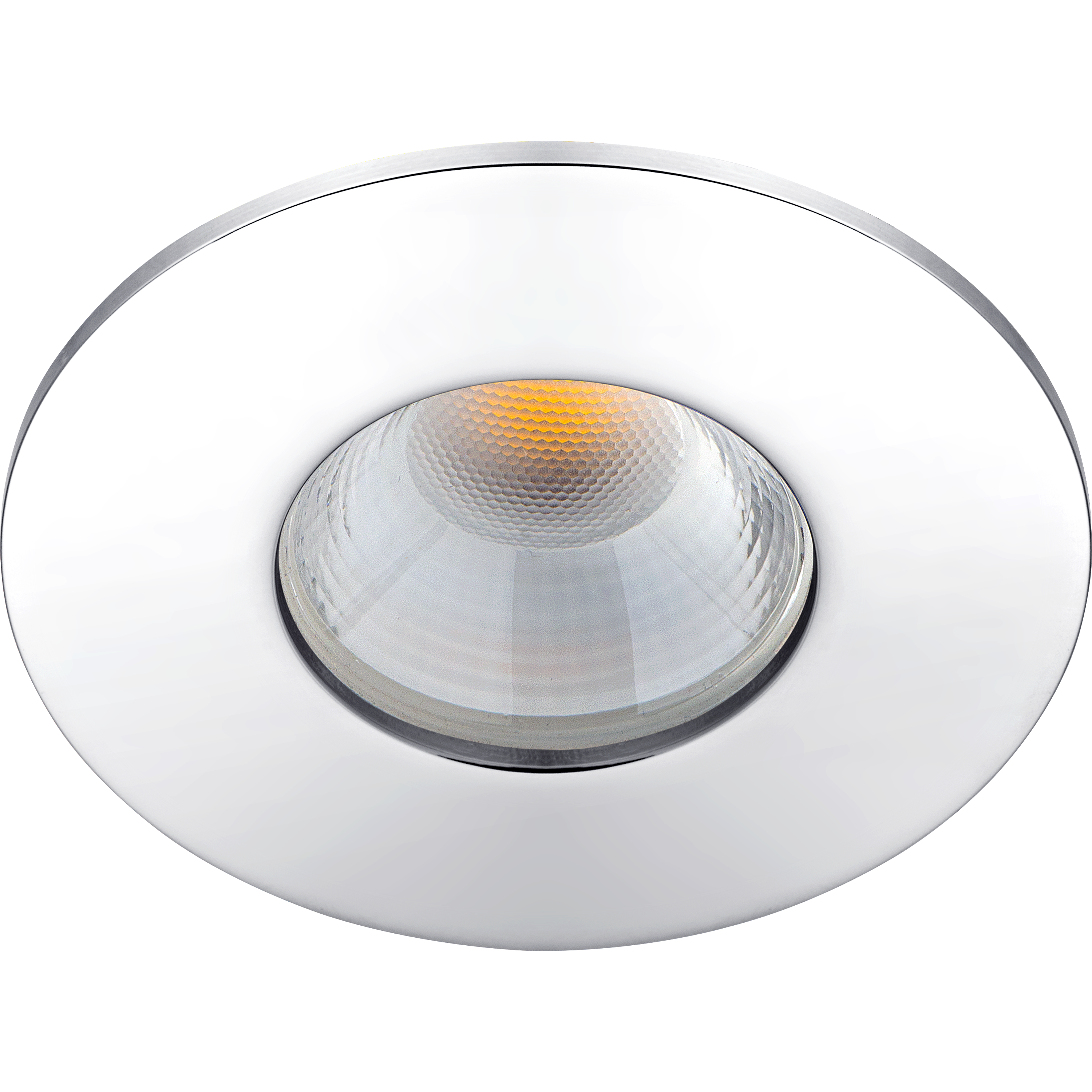

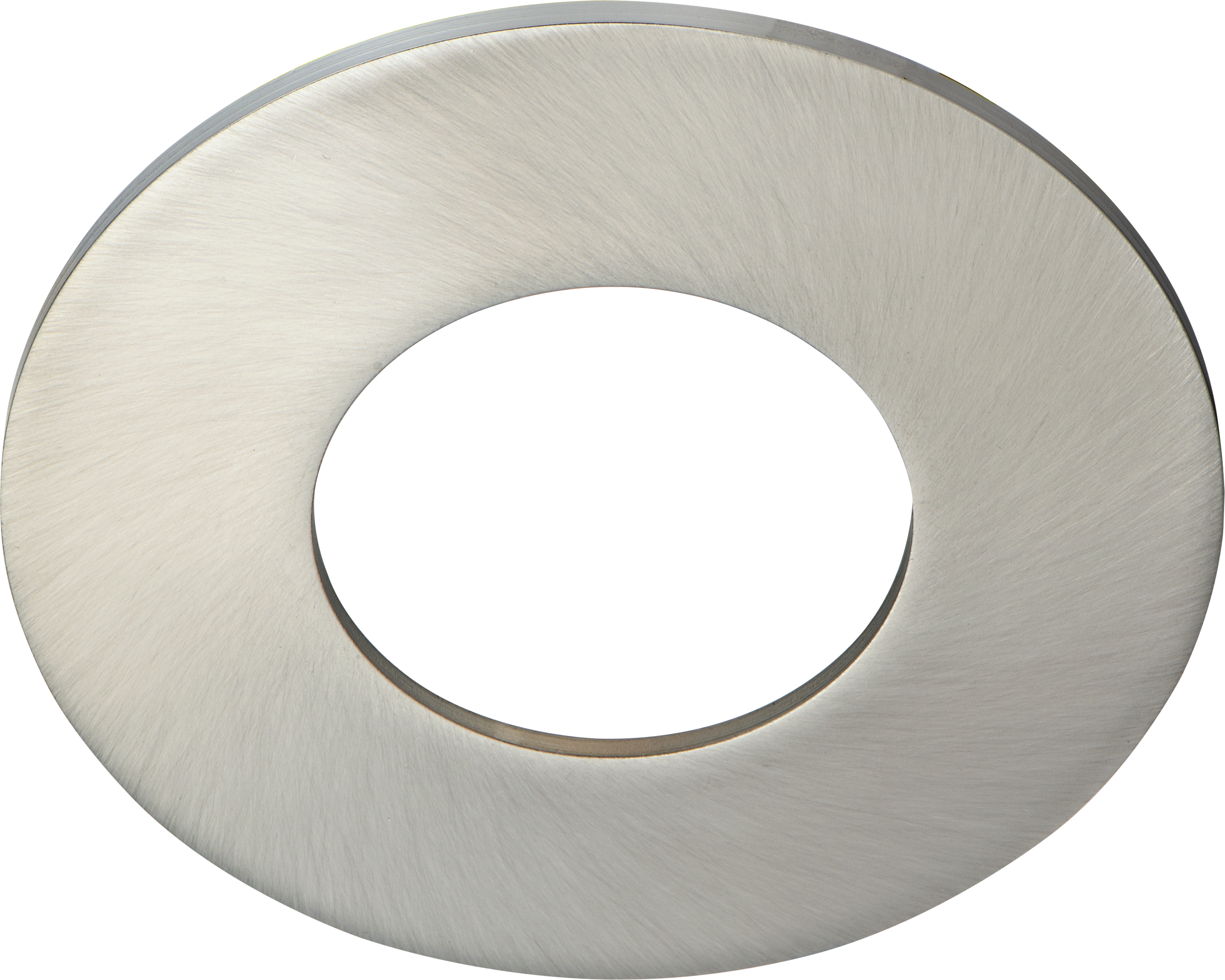

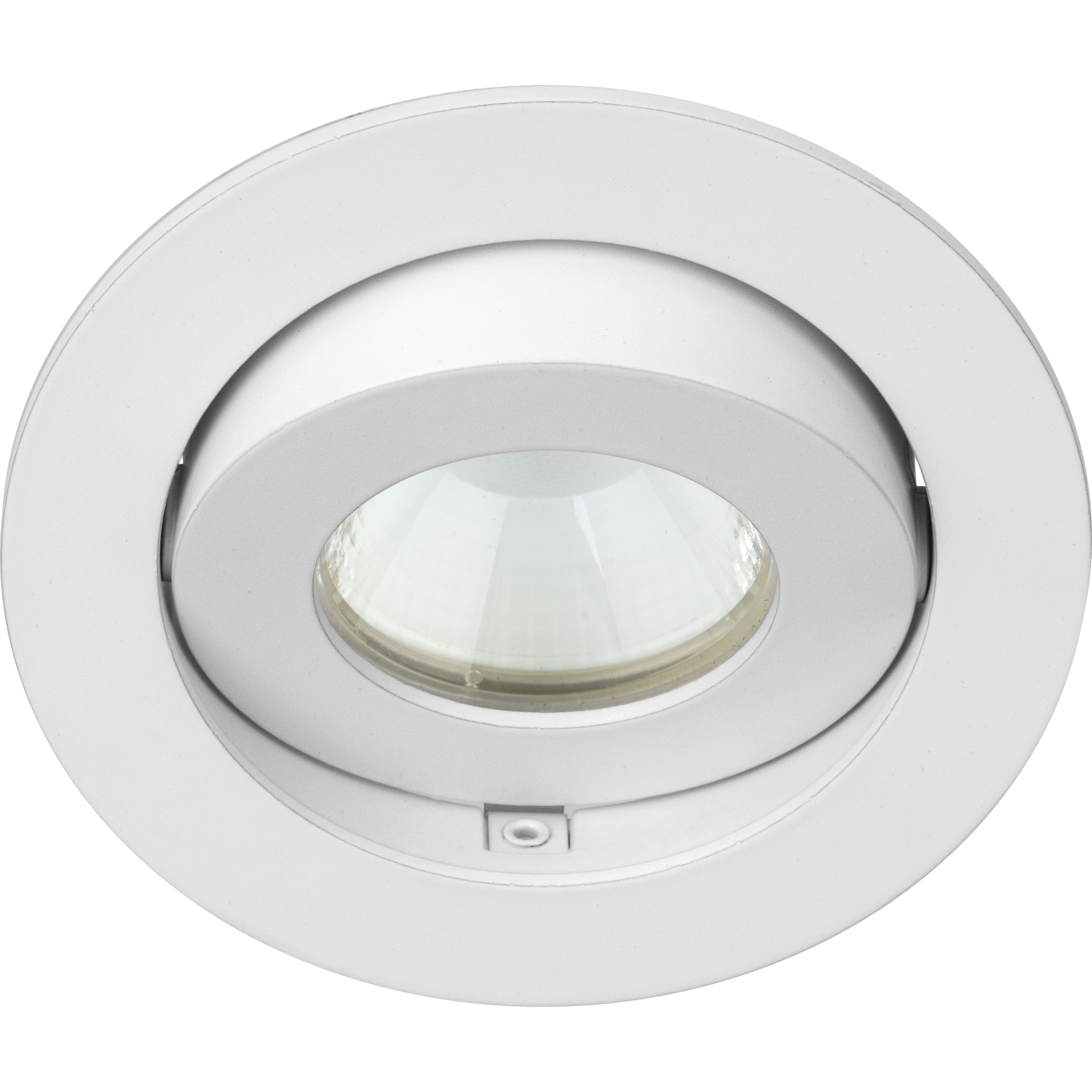

Selection of interchangeable bezels available – Supplied with flat matt white as standard
| Code | Driver Type | Bezel Type | Colour Temp (CCT) (K) | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Cutout (mm) | Add to Spec |
|---|---|---|---|---|---|---|---|---|
|
Code
LDEF8W8D27
|
Driver Type
Phase Dimmable
|
Bezel Type
|
Colour Temp (CCT) (K)
2700
|
Lumen Output (lm)
750
|
Max Wattage (W)
8
|
Efficacy (Lm/W)
94
|
Cutout (mm)
76mm
|
|
|
Code
LDEF8W8D30
|
Driver Type
Phase Dimmable
|
Bezel Type
|
Colour Temp (CCT) (K)
3000
|
Lumen Output (lm)
800
|
Max Wattage (W)
8
|
Efficacy (Lm/W)
100
|
Cutout (mm)
76mm
|
|
|
Code
LDEF8W8D40
|
Driver Type
Phase Dimmable
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
800
|
Max Wattage (W)
8
|
Efficacy (Lm/W)
100
|
Cutout (mm)
76mm
|
