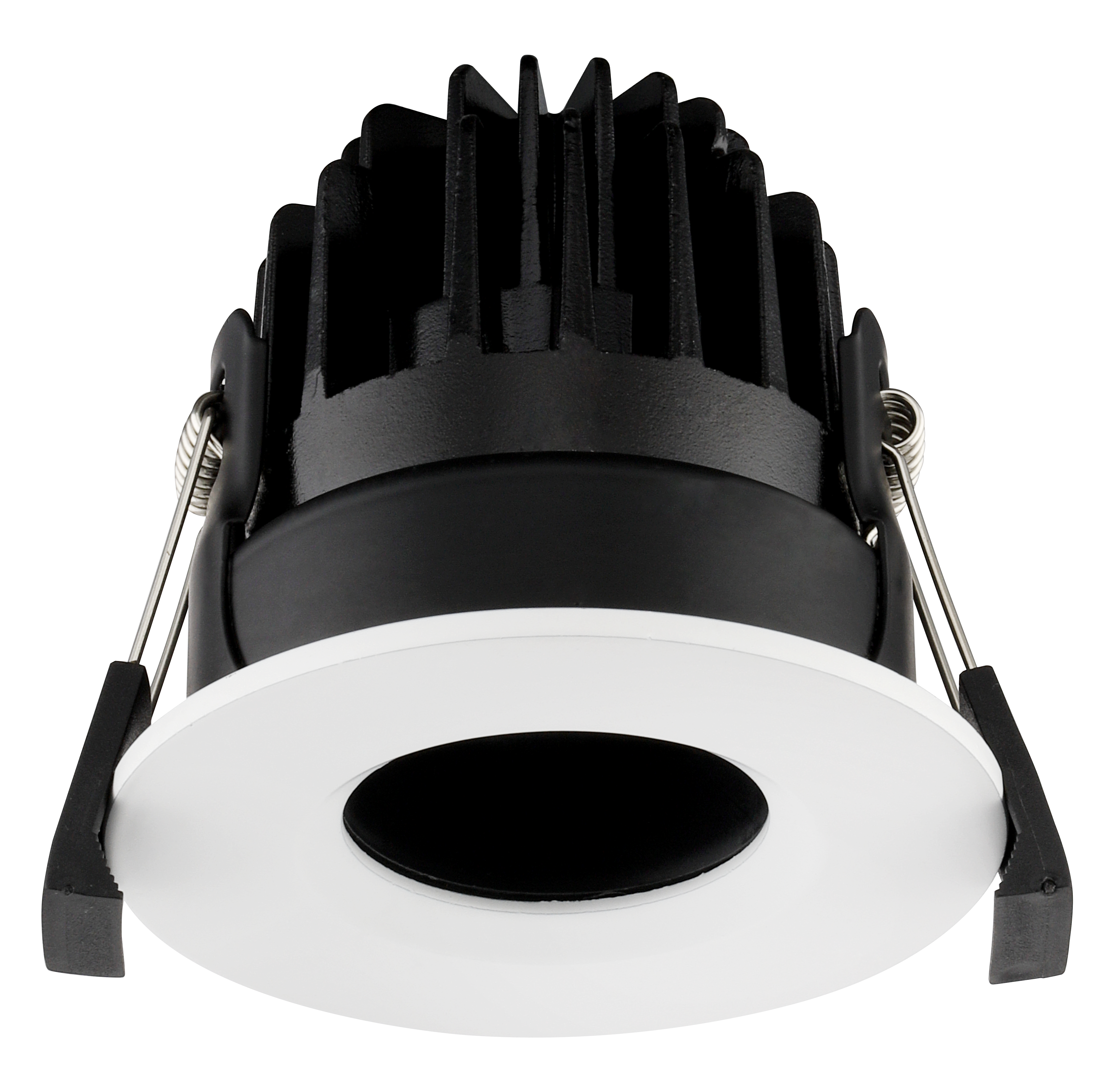

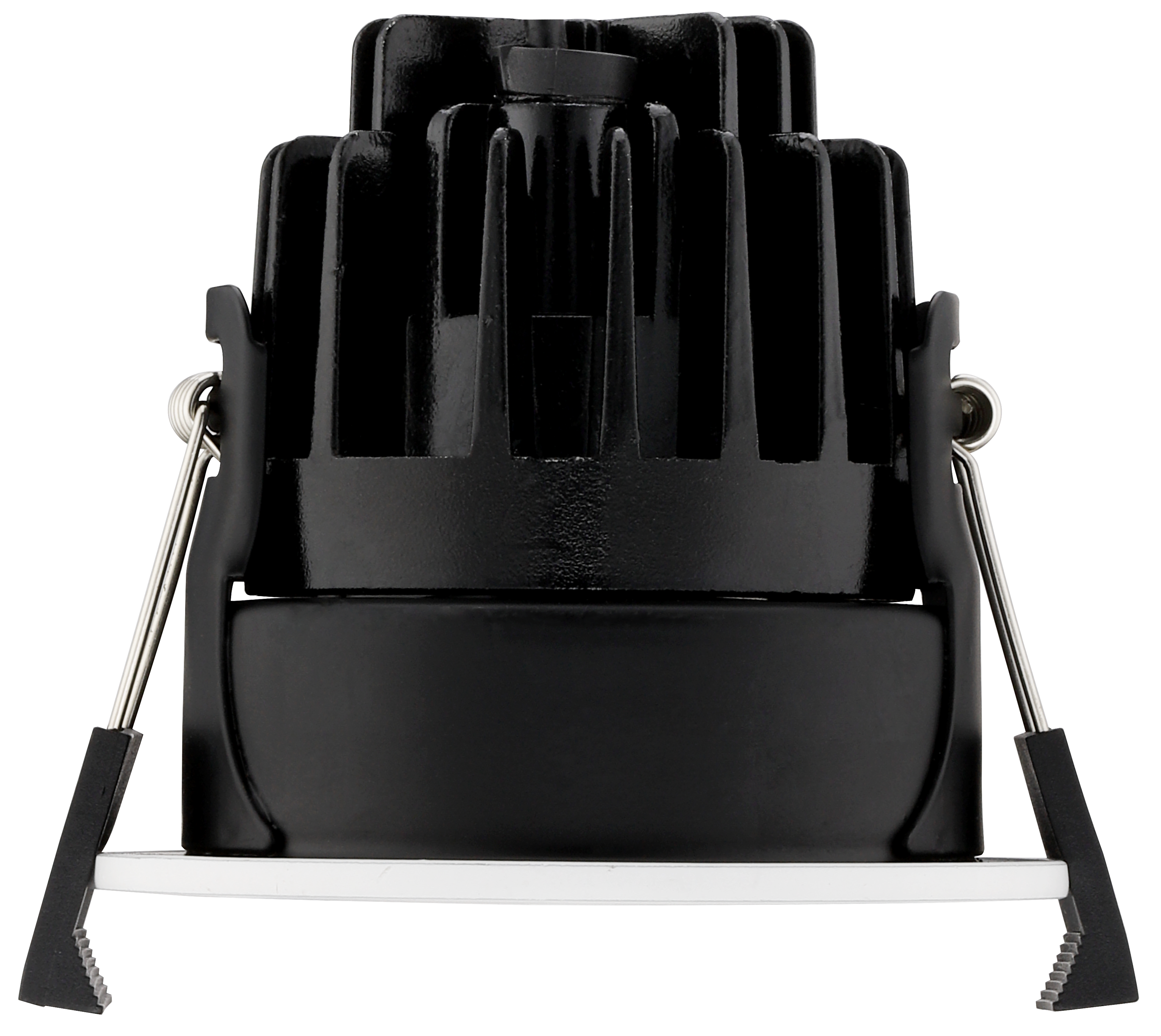

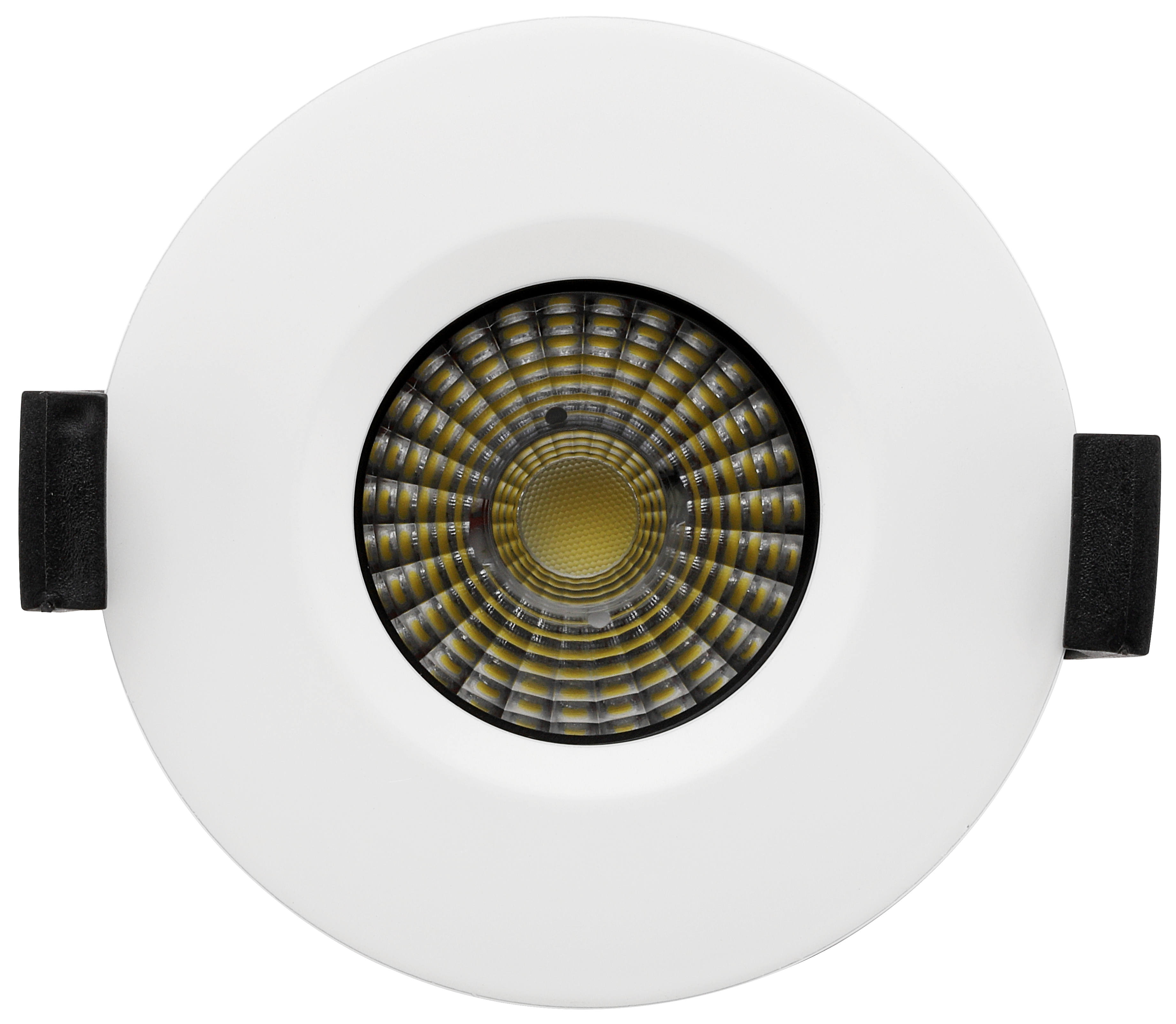

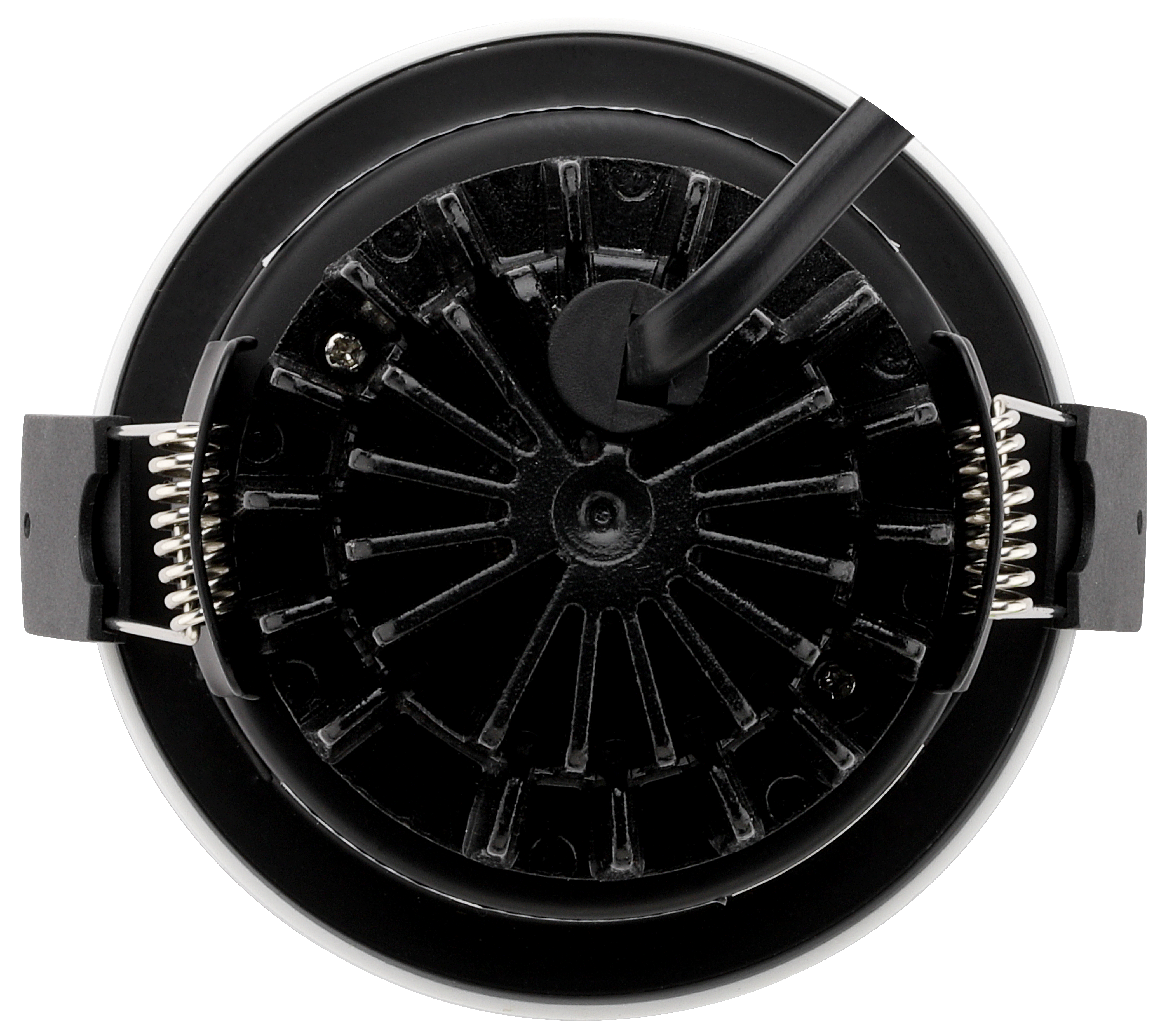

Premium fire rated downlight with DALI and 3hr emergency options
Efficient LEDs achieving 100Llm/W
Regressed Low glare optic
Insulation coverable recessed mounted
4000K - Neutral white
Technical Data
Code | LDER7W6D40 |
Driver Type | Phase Dimmable |
Lumen Output (lm) | 600 |
Max Wattage (W) | 7 |
Efficacy (Lm/W) | 86 |
Colour Temp (CCT) (K) | 4000 |
Beam Angle (degrees) | 60 |
CRI | >80 |
Base Colour | White |
Dimensions and Installation
Cutout (mm) | 71mm |
Unpacked Depth (mm) | 104 |
Unpacked Width (mm) | 104 |
Unpacked Height (mm) | 76 |
Unpacked Net Weight (kg) | 0.395 |
Performance & Safety
Lifetime (h) | 40000 |
L/B at Life | L70-B50 |
L70 Hours (h) | 40000 |
Operating Temperature (C) | -25°C to +40°C |
Input Voltage (V) | 220-240 |
E-Class | Class1 |
Power Factor | >0.9 |
IK Rating | IK04 |
Fire Rating | 30 60 90 minute |
