FType Elite

Fire-rated LED downlights with selectable wattage and color temperature options.

Luceco’s FType Elite fire-rated LED downlights are designed for contractors, combining effortless installation with adjustable performance. Featuring the ClipFit connector, tool-free NEL-NEL push-fit terminal block supporting 500V insulation resistance testing, 360° wiring access with QuickView for wiring inspections, and offering 4W/6W power settings and adjustable CCT (2700K–6000K) for tailored lighting in modern spaces.

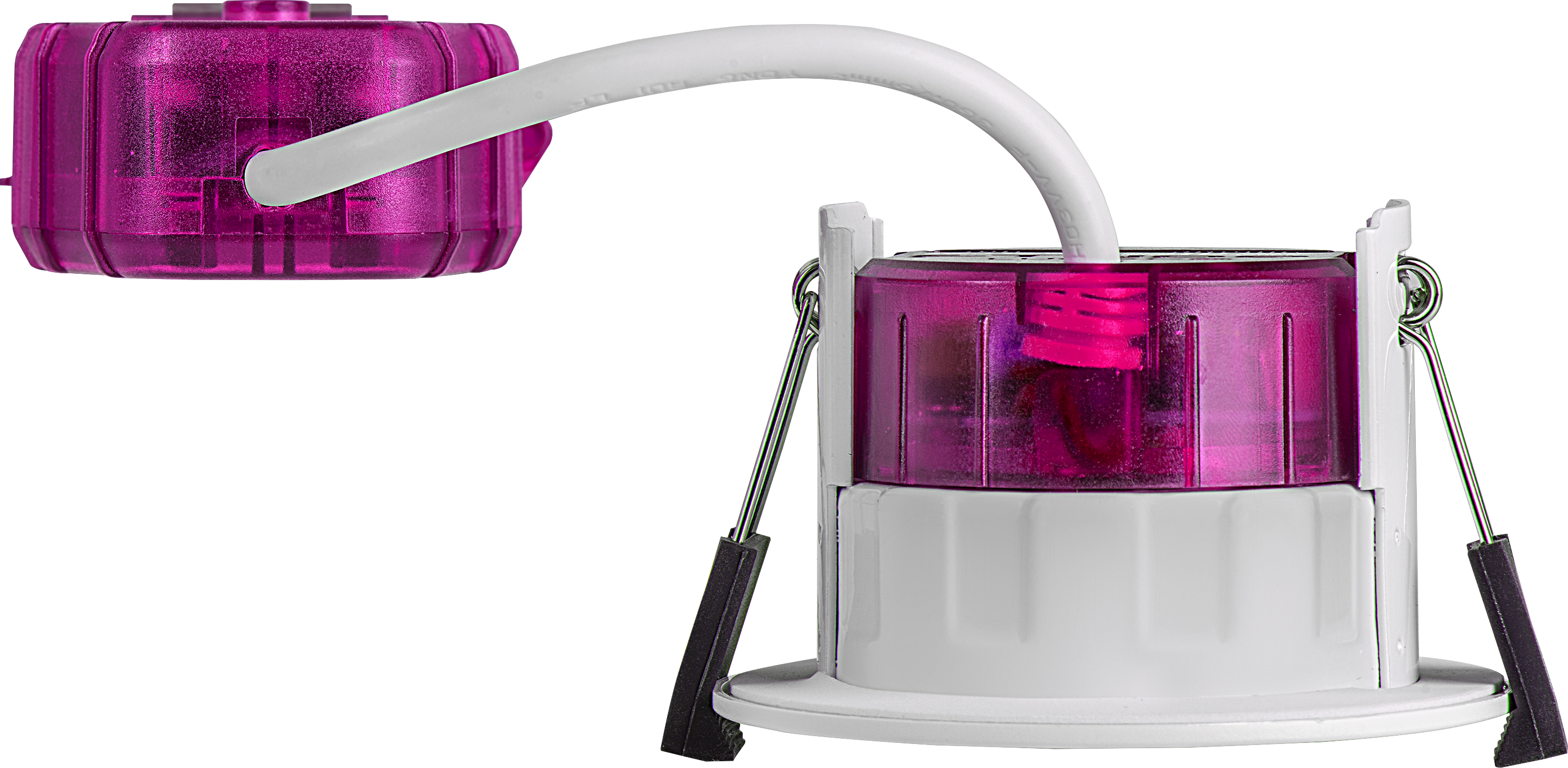

Patented ClipFit connector and NEL NEL tool-free terminal block simplify first and second fix setups.

500V insulation testing connector block allowing you to comprehensively test all installations without the hassle

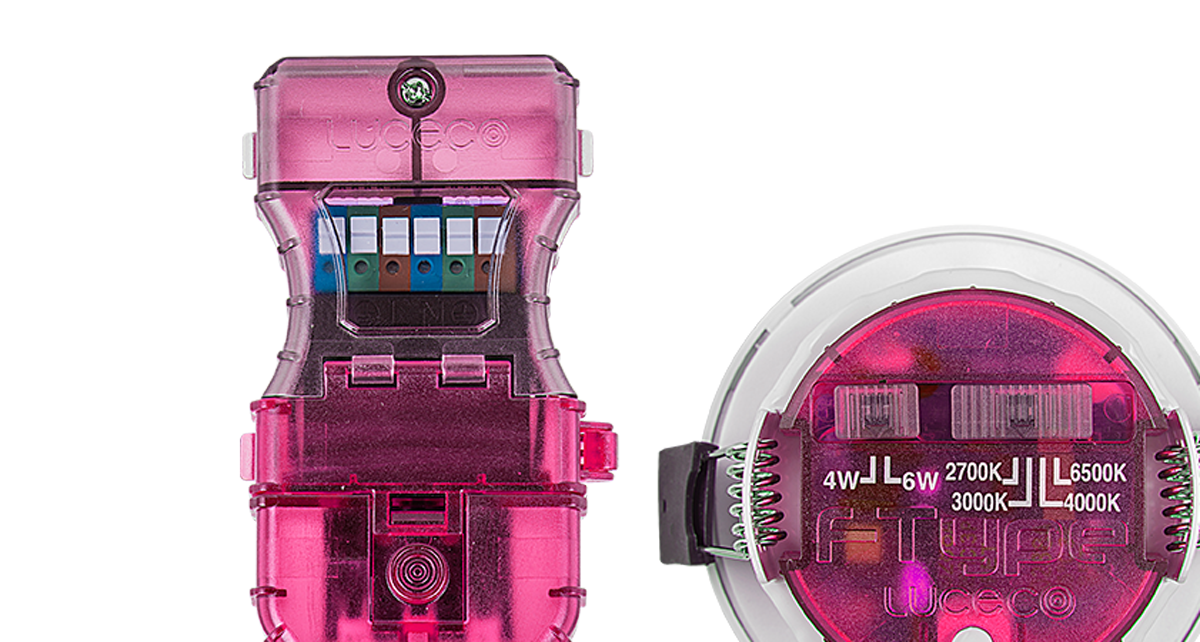

Designed for professionals with 360° wiring access and QuickView inspection for seamless cable management.

Power and lighting modes selectable. 4W/6W as standard

Choose between Dim2Warm and ColourChange models for complete lighting flexibility

Effortless Installation and Superior Safety.

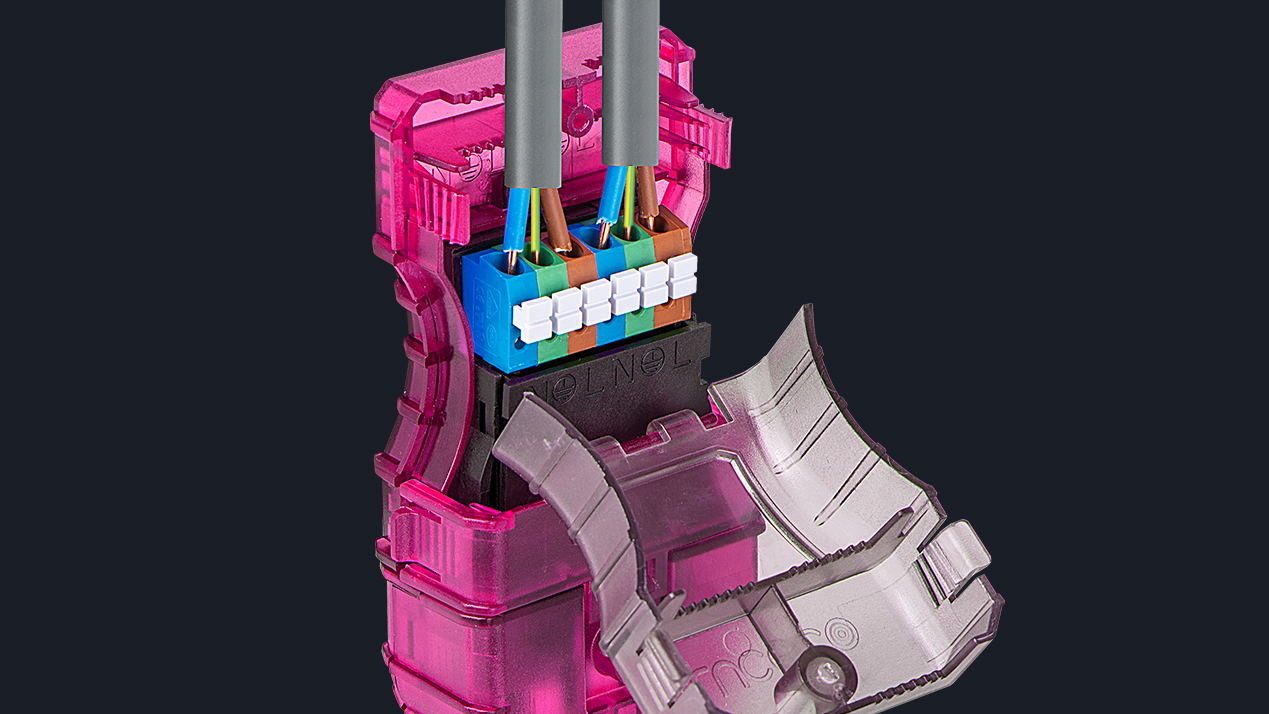

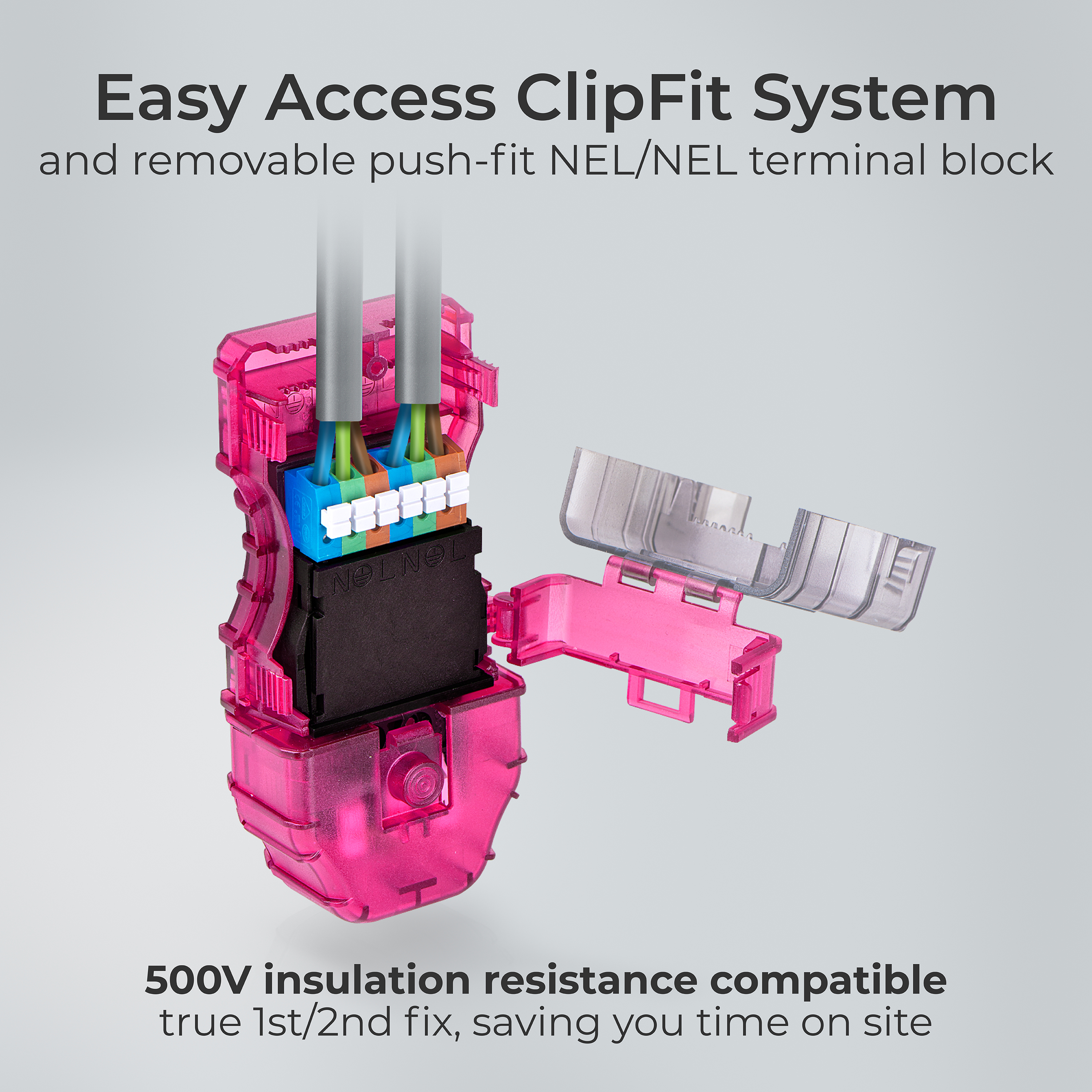

The Luceco FType Elite downlights feature the ClipFit Connector with a removable NELNEL push-fit terminal block for efficient wiring. Compliant with 18th Edition Amendment 2 and supporting 500V insulation resistance testing, they ensure safety and versatility, allowing termination of both solid and stranded cables for a wide range of installations.

Lighting and power control.

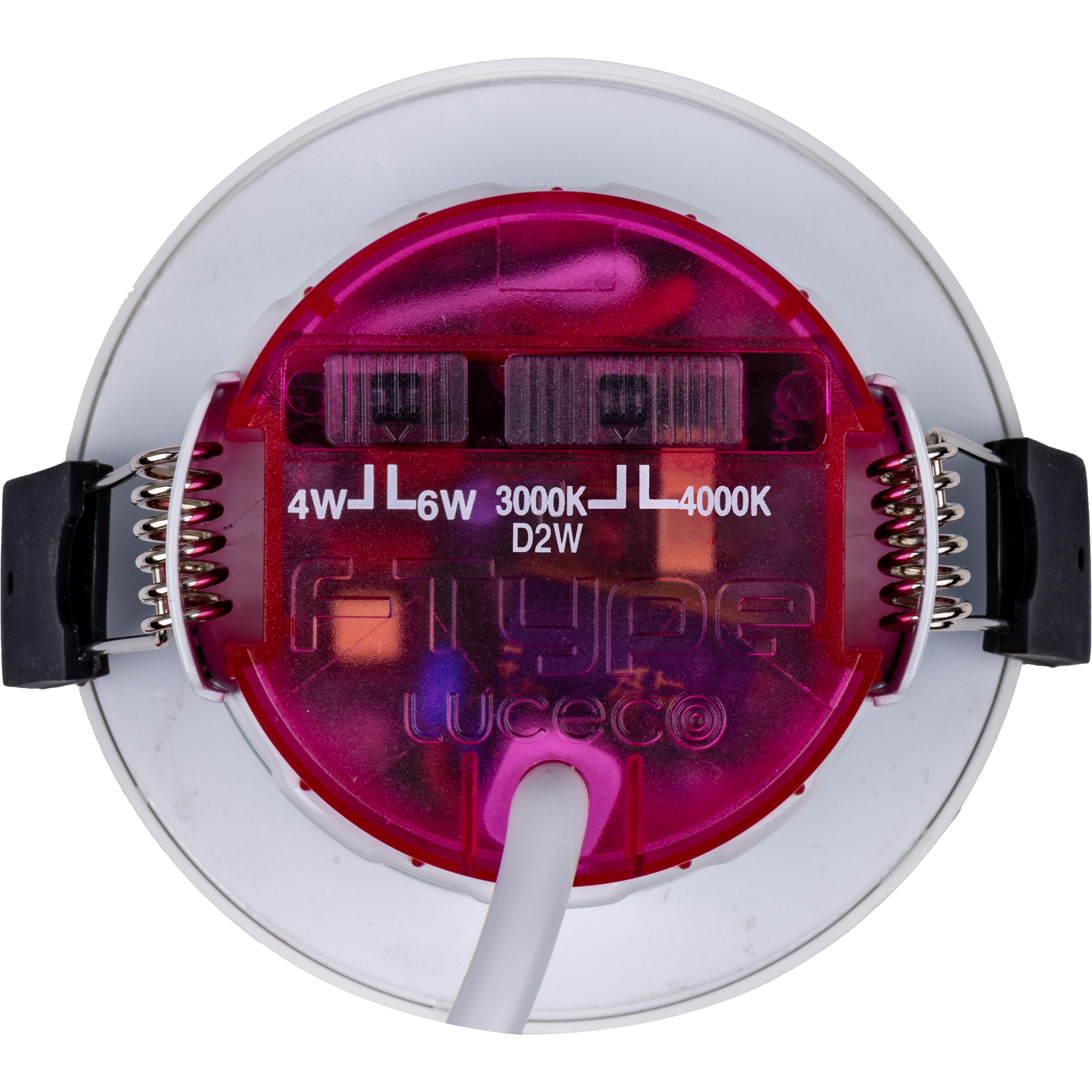

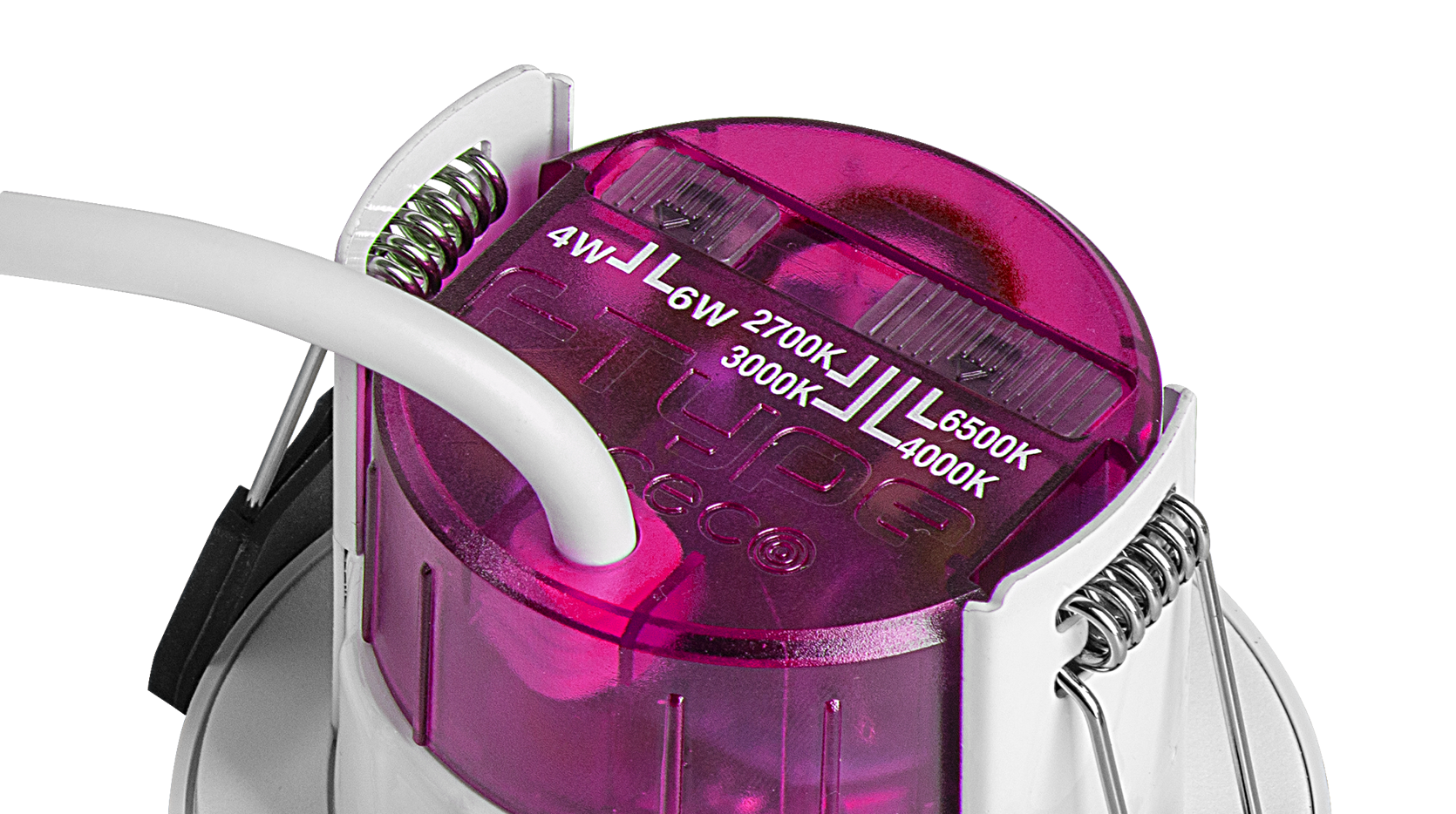

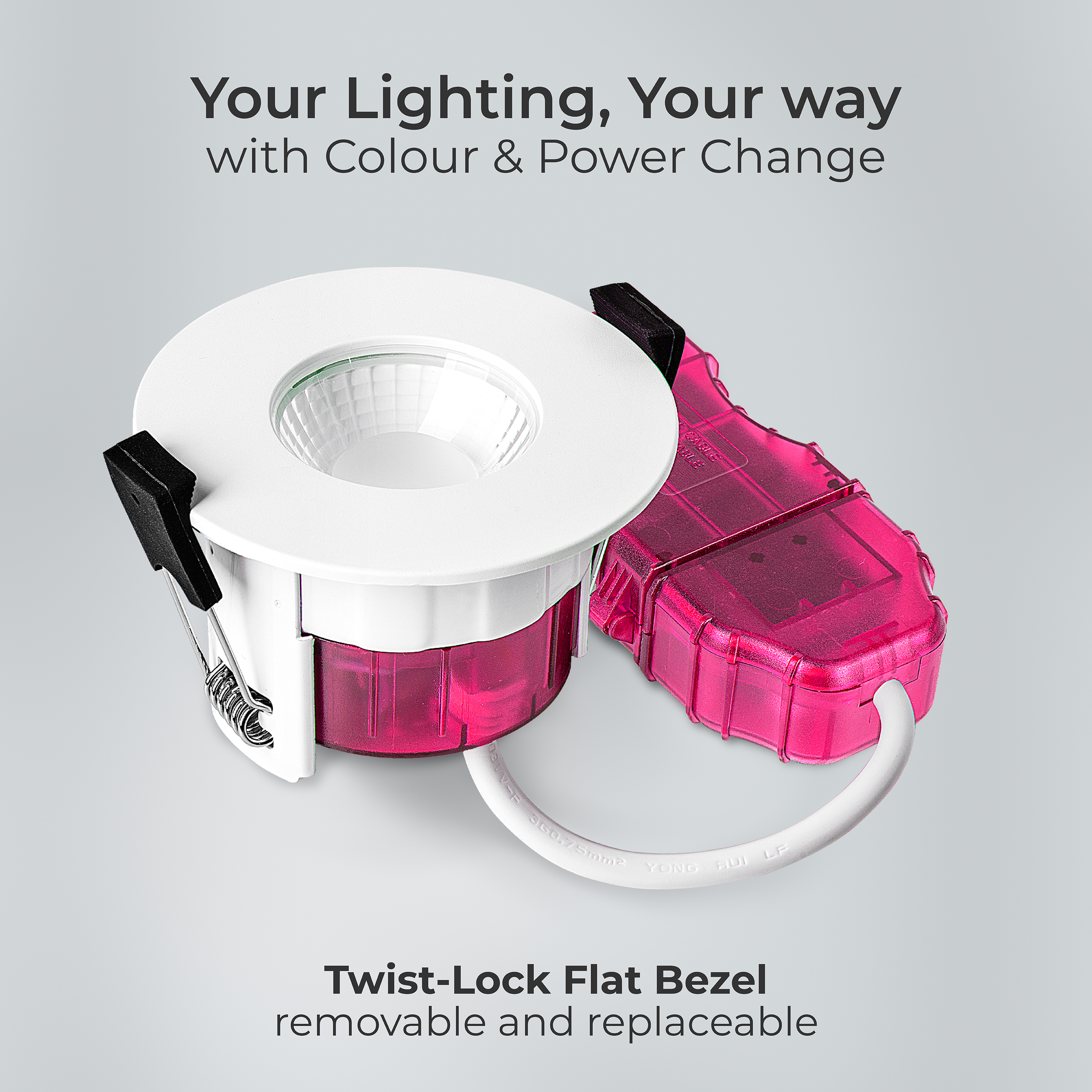

The Luceco FType Elite offers ultimate flexibility with its innovative lighting and power control switches. A 4W and 6W selectable output is standard, allowing lighting spaces to be easily customised to taste or requirement

Additionally, a colour mode selector allows you to choose between Dim2Warm CCT and 4-Colour CCT variants, giving full control over lighting style and ambience

Your lighting, your space, your way.

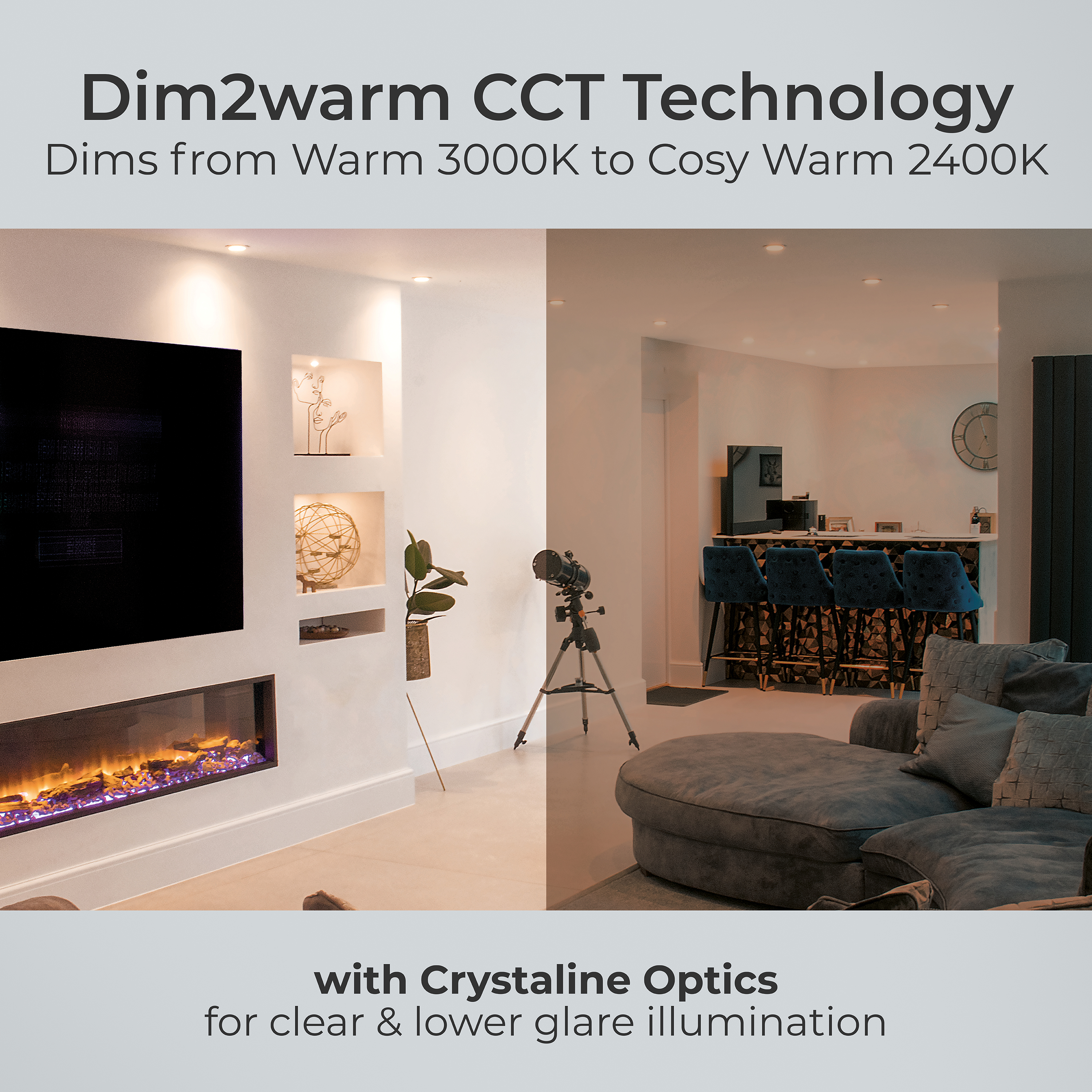

Dim2Warm CCT technology adjusts the colour temperature as you dim to create that warm, cosy tone associated with traditional dimmed filament and halogen lighting. The more you dim, the warmer the glow. 2400K to 3000K.

Opt for the 4-colour CCT version for maximum flexibility. Offering a choice of 2700K & 3000K, which creates a more relaxed and comfortable environment, or 4000K & 6000K suitable for more task-focused rooms.

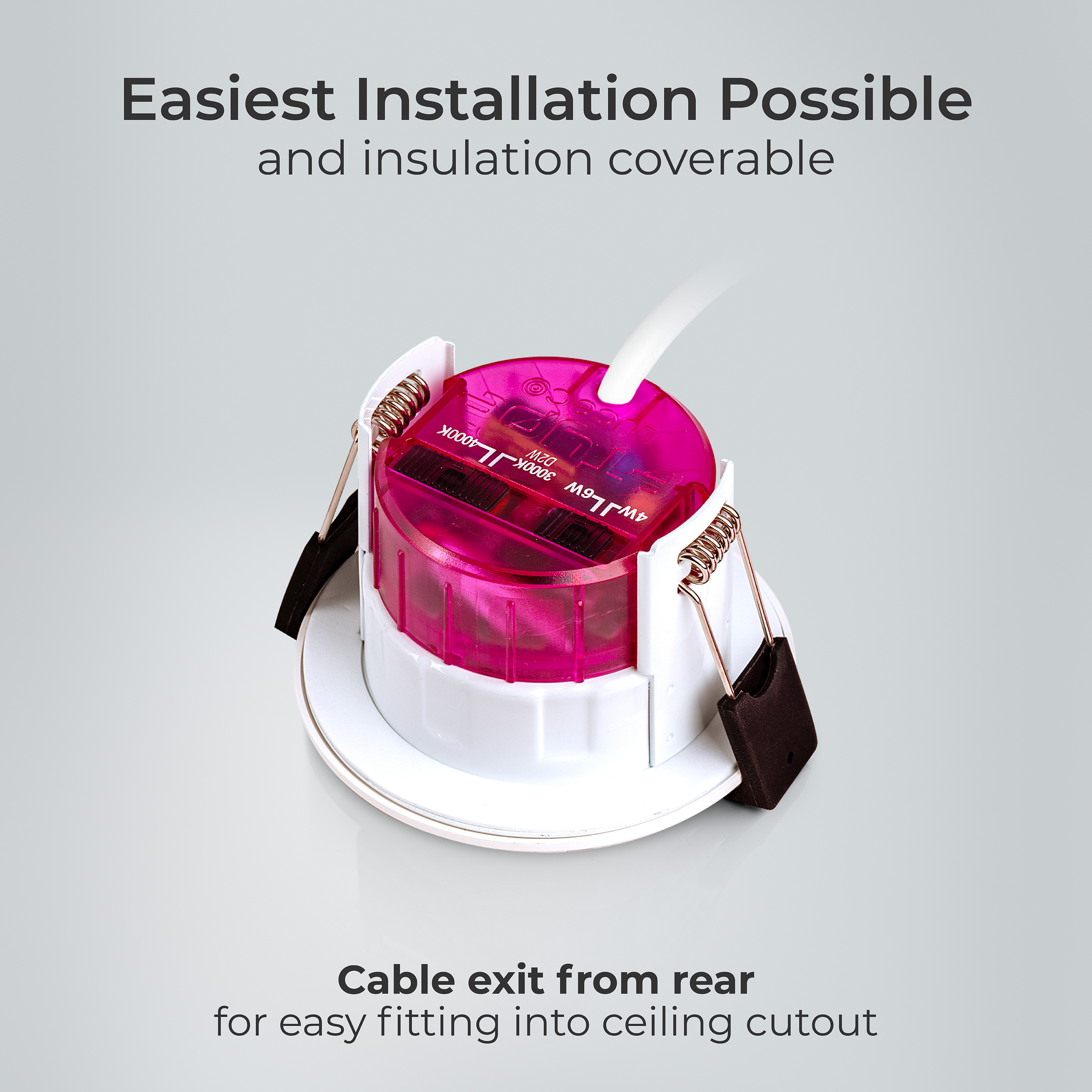

Effortless, Tool-Less Installation.

Unique removable Speedfit connector, NELNEL push-fit terminal block for improved access, 500V insulation resistance, and VDA improved. Trade-rated, with a loop in/out piano key terminals that can accommodate either solid or stranded wire, designed for quick and simple installation.

Secure Wire Management.

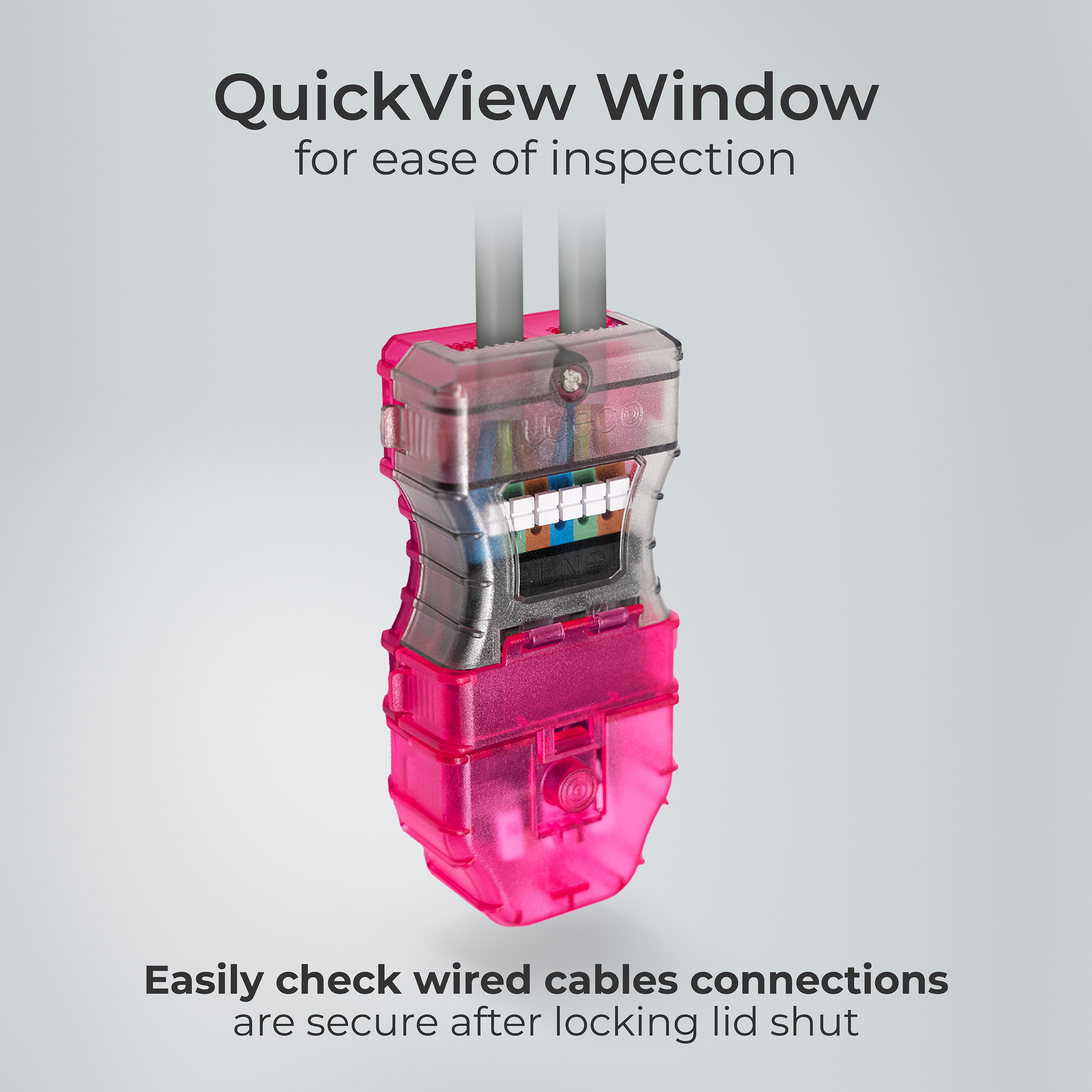

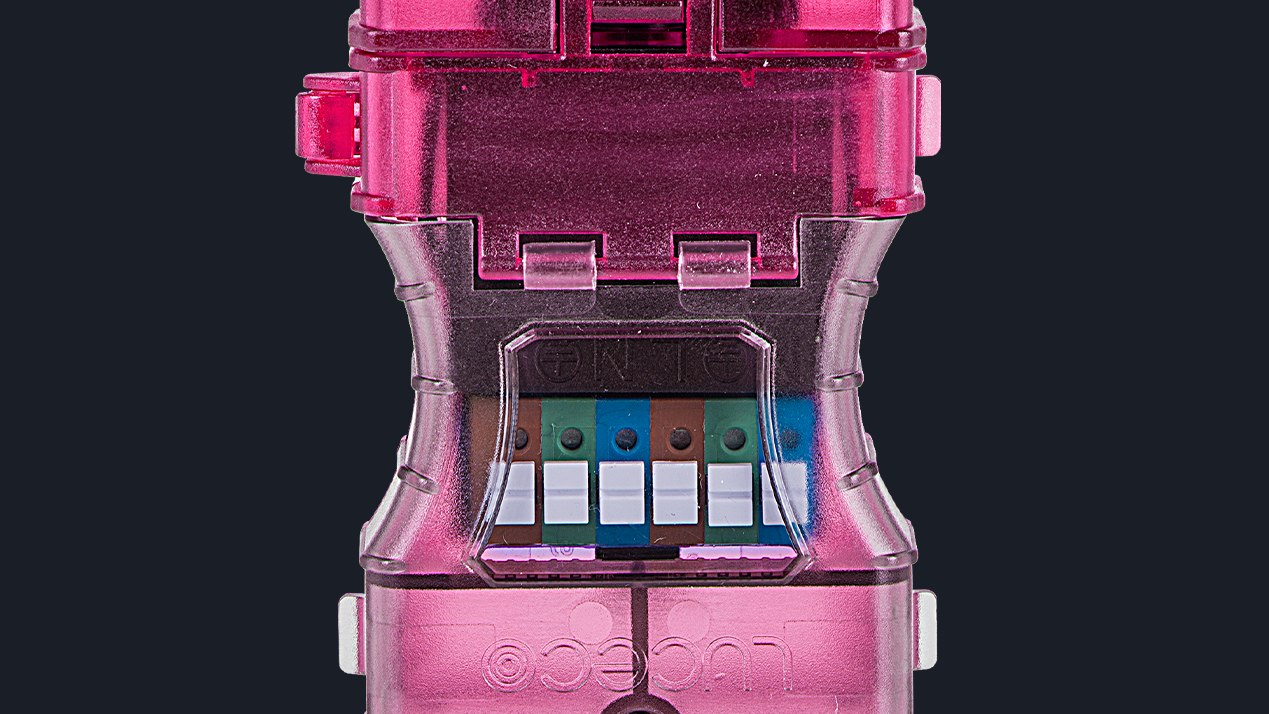

QuickView cable window enables at-a-glance inspection of wiring connections, ensuring safe and secure cable termination. Providing you with an added level of safety and reassurance.

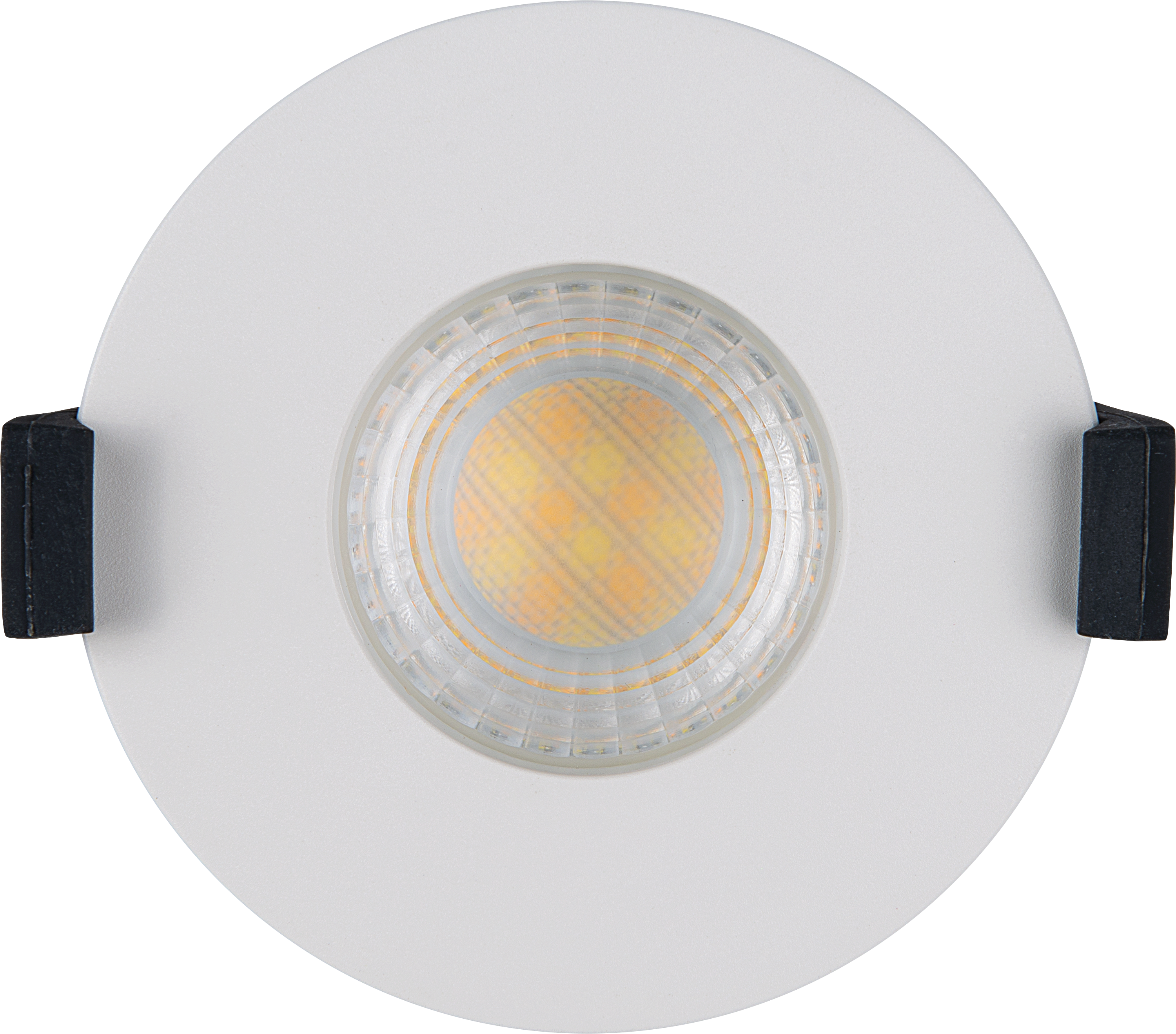

Crystaline-Optic lens for flawless lighting.

Utilising the latest super-efficient LED technology, with a wide 60-degree baffled back-lens ensures reduced glare for a soft and balanced lighting distribution, enhancing visual comfort while maintaining high-quality illumination

Offering three versatile lens types: Fixed-Flat for clean, uniform lighting, ideal in hallways and open spaces; Regressed for reduced glare and softer lighting distribution; and Adjustable, giving 20 degrees of flexibility, perfect for accenting art, architecture, and unique spots.

Code	Driver Type	Bezel Type	Colour Temp (CCT) (K)	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Cutout (mm)	Add to Spec
Code PTF6WD2W	Driver Type Dim To Warm	Bezel Type Regressed	Colour Temp (CCT) (K) 3000, 4000, Dim2Warm 3000K-2400K	Lumen Output (lm) 460/690	Max Wattage (W) 4/6	Efficacy (Lm/W) 115/115	Cutout (mm) N/A	Add to Spec Remove from Spec Processing
Code PTR6WD2W	Driver Type Dim To Warm	Bezel Type Regressed	Colour Temp (CCT) (K) 3000, 4000, Dim2Warm 3000K-2400K	Lumen Output (lm) 460/690	Max Wattage (W) 4/6	Efficacy (Lm/W) 115/115	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code PTA6WD2W	Driver Type Dim To Warm	Bezel Type Flat	Colour Temp (CCT) (K) 3000, 4000, Dim2Warm 3000K-2400K	Lumen Output (lm) 460/690	Max Wattage (W) 4/6	Efficacy (Lm/W) 115/115	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code PTF6WCCT	Driver Type Colour Change	Bezel Type Flat	Colour Temp (CCT) (K) 2700, 3000, 4000, 6500	Lumen Output (lm) 485/750	Max Wattage (W) 4/6	Efficacy (Lm/W) 121/125	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code PTR6WCCT	Driver Type Colour Change	Bezel Type Flat	Colour Temp (CCT) (K) 2700, 3000, 4000, 6000	Lumen Output (lm) 485/750	Max Wattage (W) 4/6	Efficacy (Lm/W) 121/125	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code PTA6WCCT	Driver Type Colour Change	Bezel Type Regressed	Colour Temp (CCT) (K) 2700, 3000, 4000, 6000	Lumen Output (lm) 485/750	Max Wattage (W) 4/6	Efficacy (Lm/W) 121/125	Cutout (mm) N/A	Add to Spec Remove from Spec Processing
