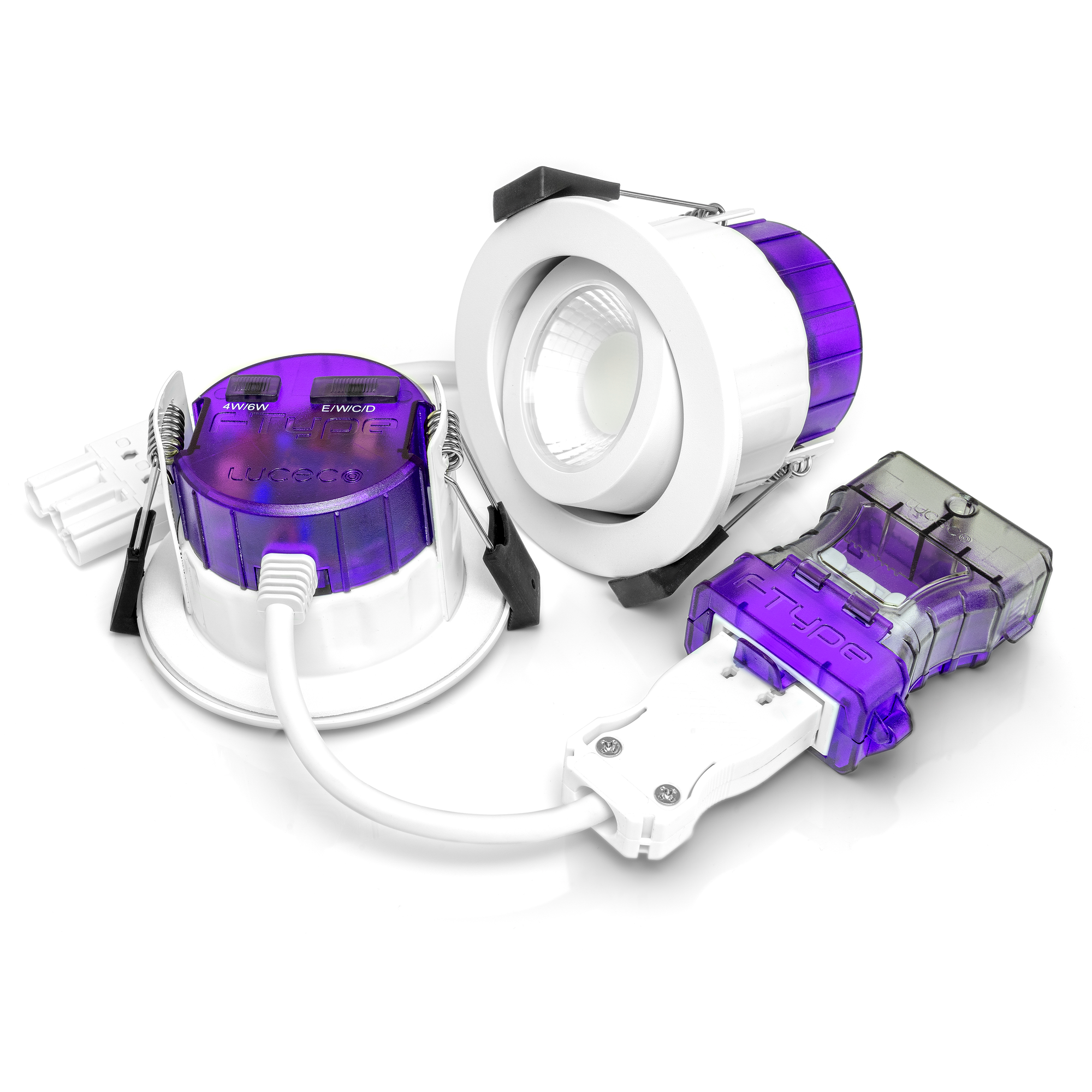

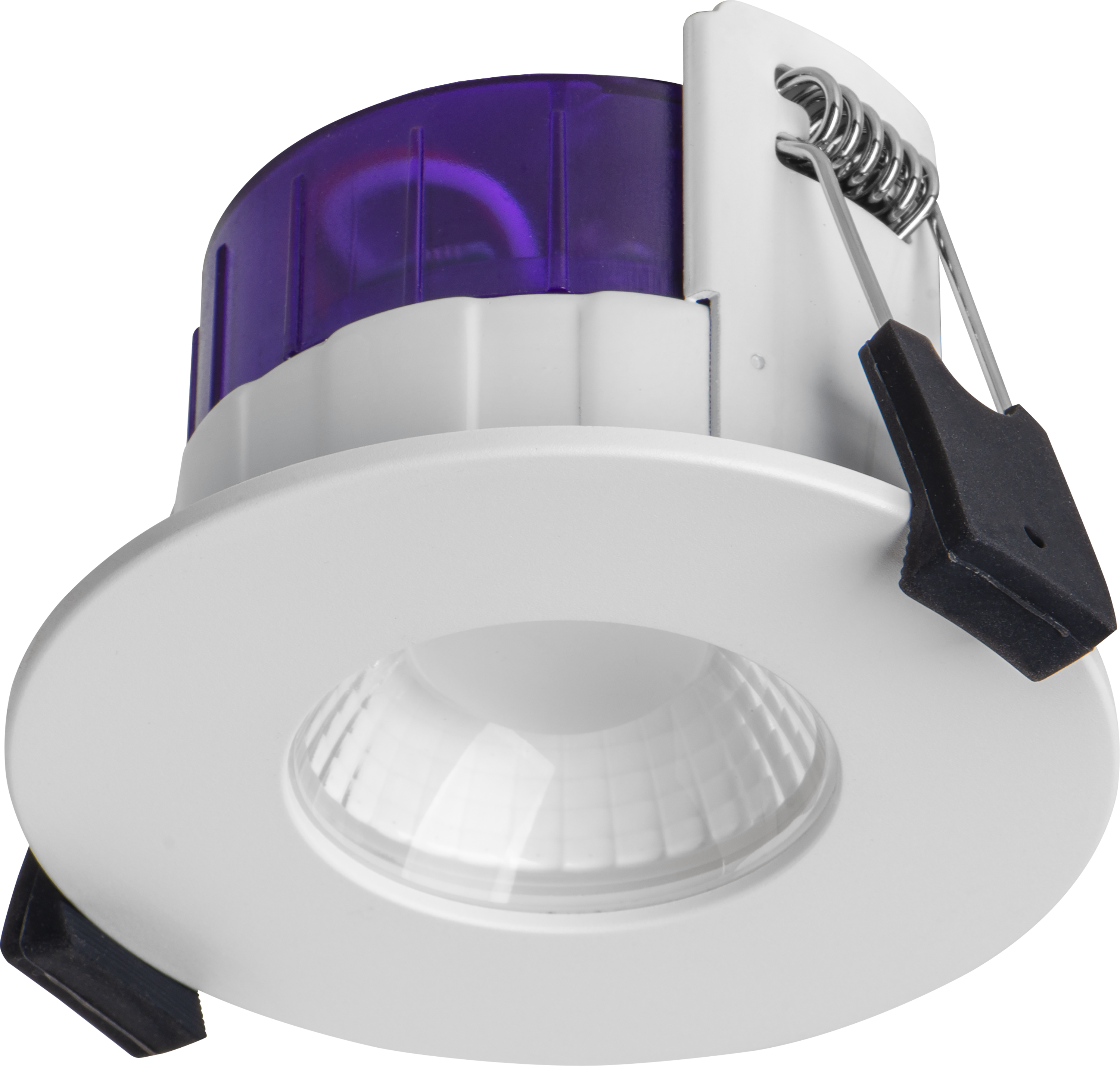

FType Ultra

Maximum performing 1st & 2nd fix downlight with CCT, Wattage selector and Dim2Warm technology

Representing the pinnacle of downlight technology today - specifically developed to streamline and help first-second fix installations, offering the very latest innovations for safety, ease of installation and testing compliance. Combining premium features, including wide 60º baffled back lens for reduced glare, with new innovative developments, from our QuickView window making it easier to inspect cables after locking lid shut, to our 500V VDE certified connection block, allowing installers to save time when 500V testing full installations.

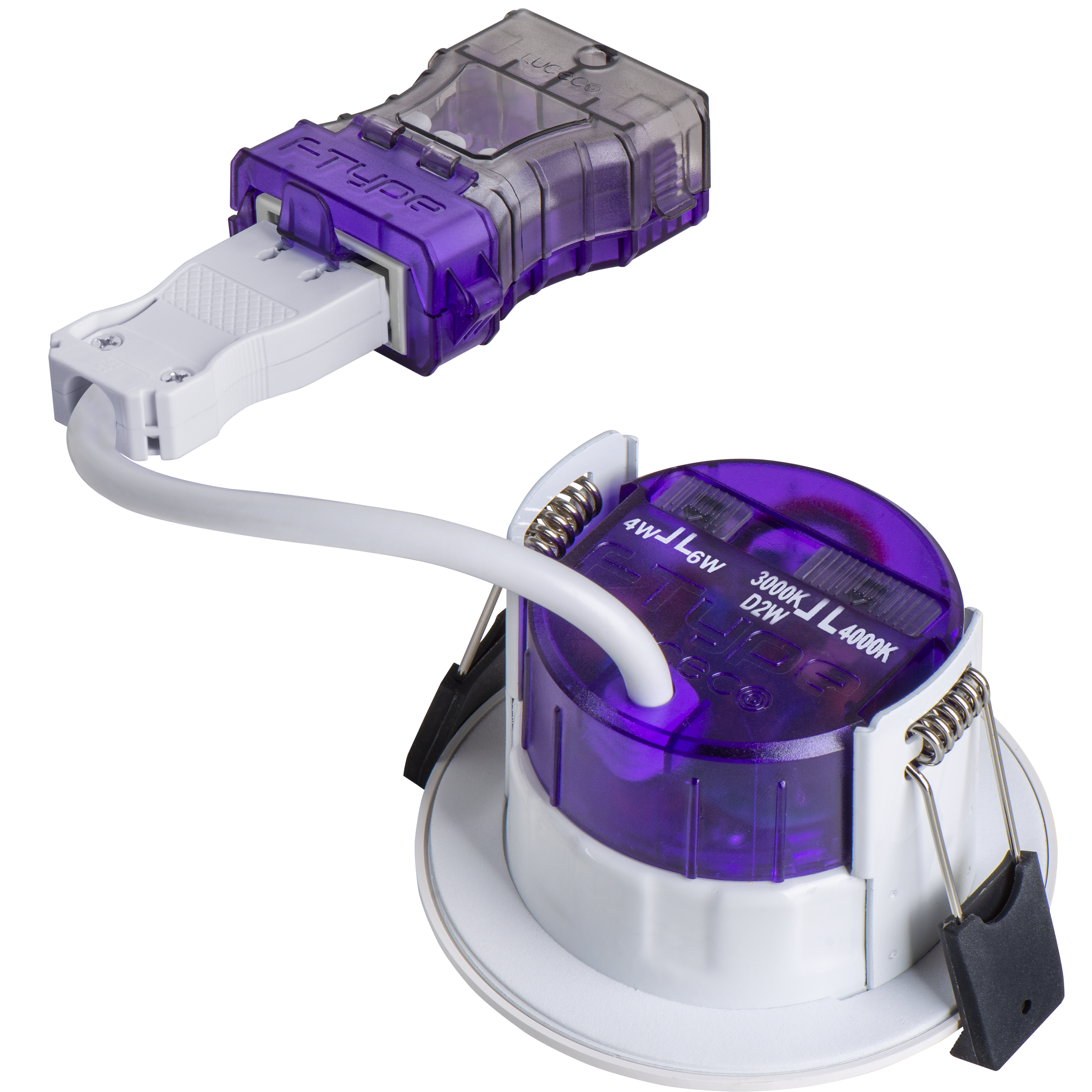

A 500V insulation testing connector block allowing you to comprehensively test all installations without the hassle

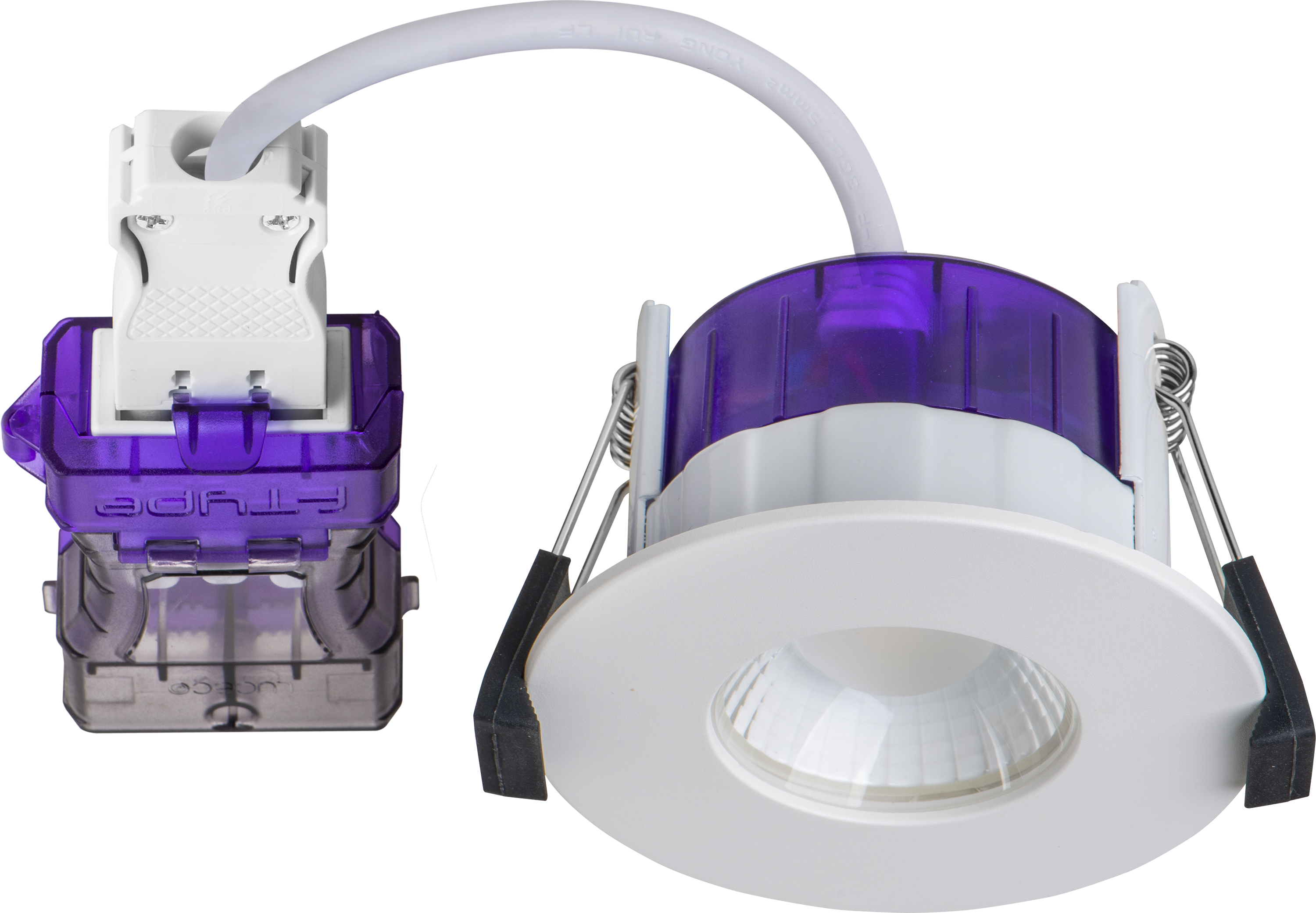

Fully separable VDE certified connector block, providing complete 360-degree access to the terminals saving installation time

QuickView Cable Window for safety and ease of inspection

Power and lighting modes selectable. 4W/6W as standard

Choose between Dim2Warm and ColourChange models for complete lighting flexibility

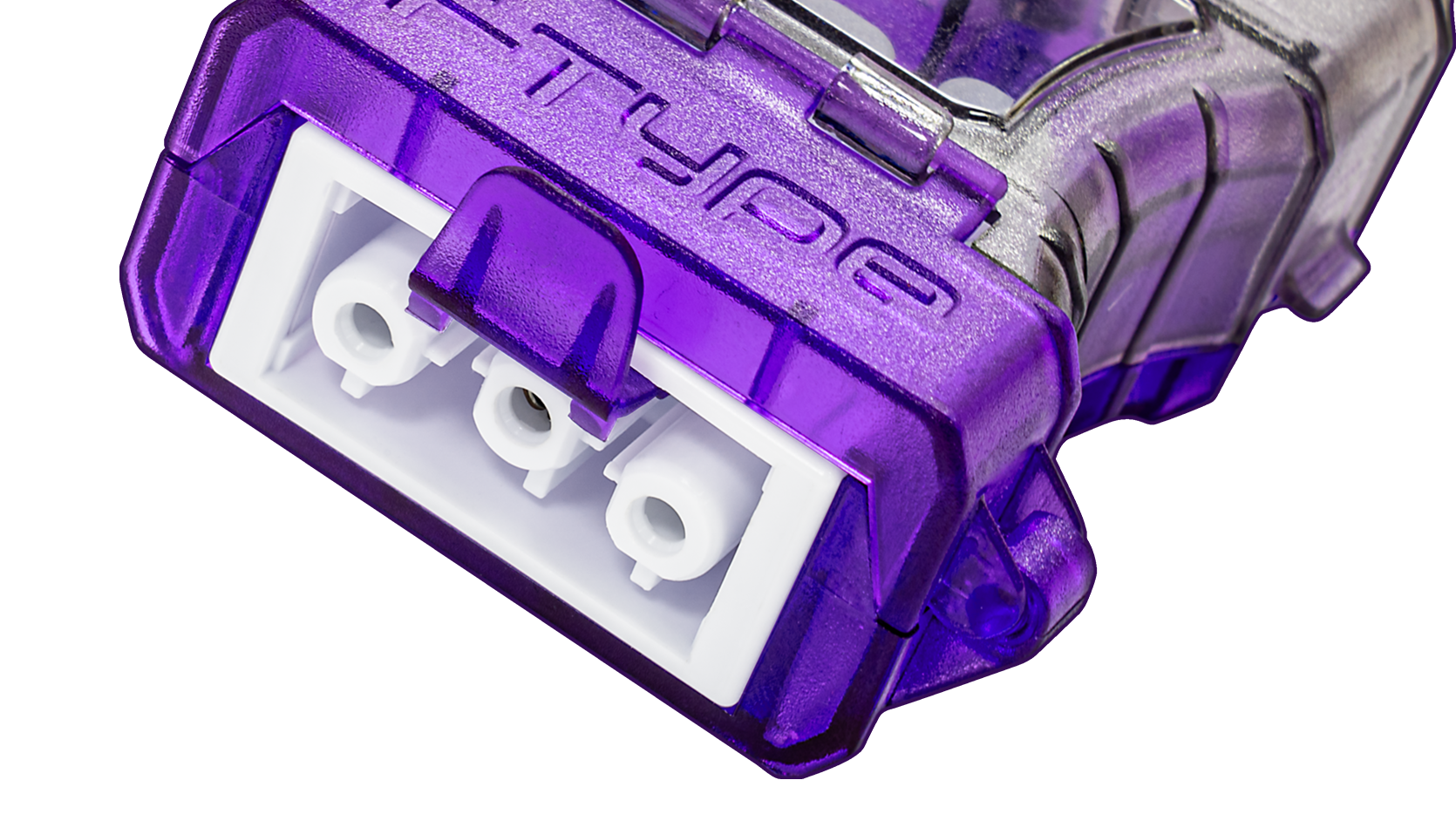

500V testing connector block.

Perform quick and easy insulation resistance testing between all conductors at 500V, ensuring thorough testing of every installed insulation without compromising your equipment.

Key benefits include time savings, improved access, protection of equipment, comprehensive testing, and VDE certification for reliability.

Lighting and power control.

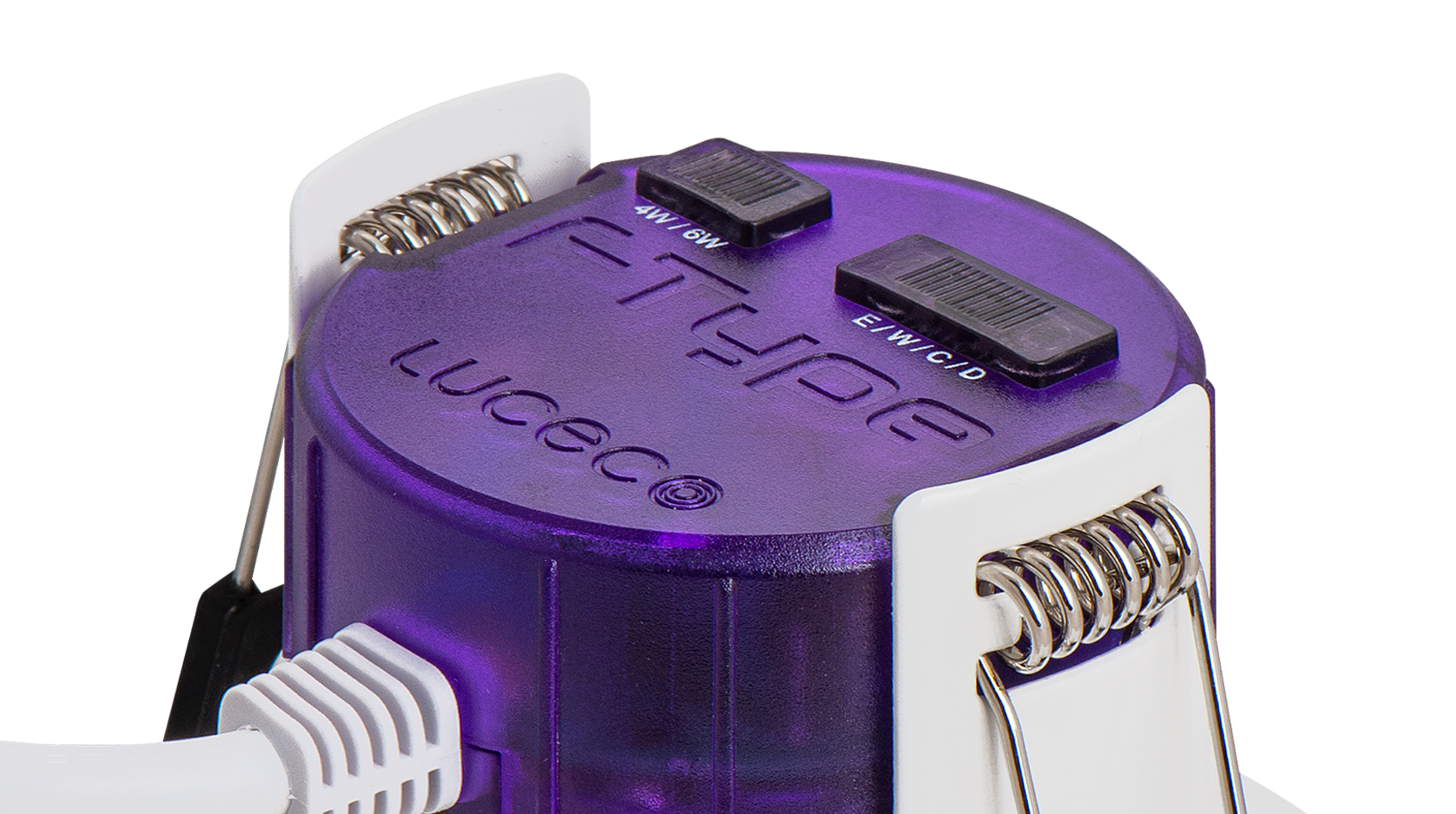

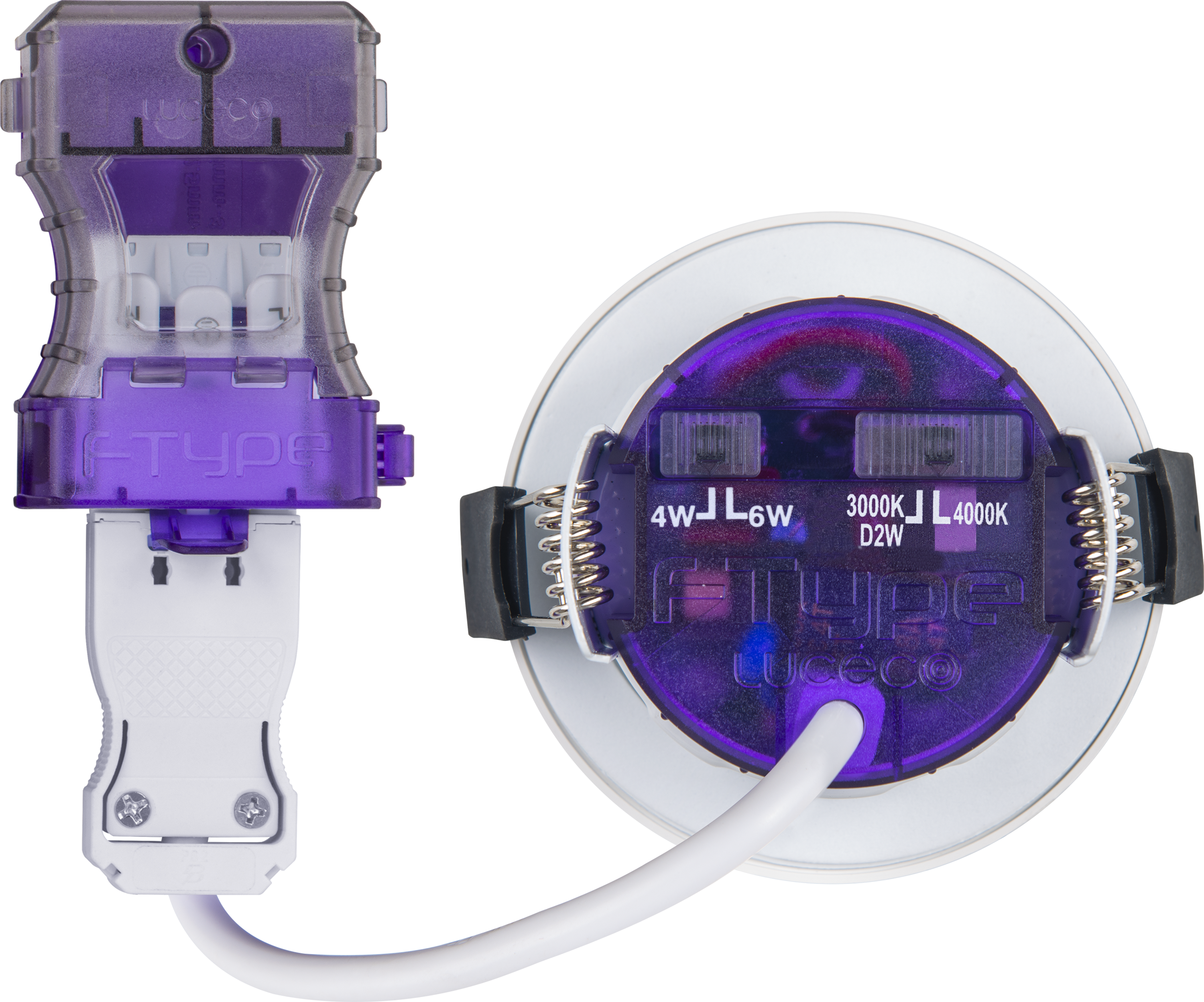

The Luceco FType Ultra offers ultimate flexibility with its innovative lighting and power control switches. A 4W and 6W selectable output is standard, allowing lighting spaces to be easily customised to taste or requirement

Additionally, a colour mode selector allows you to choose between Dim2Warm CCT and 4-Colour CCT variants, giving full control over lighting style and ambience

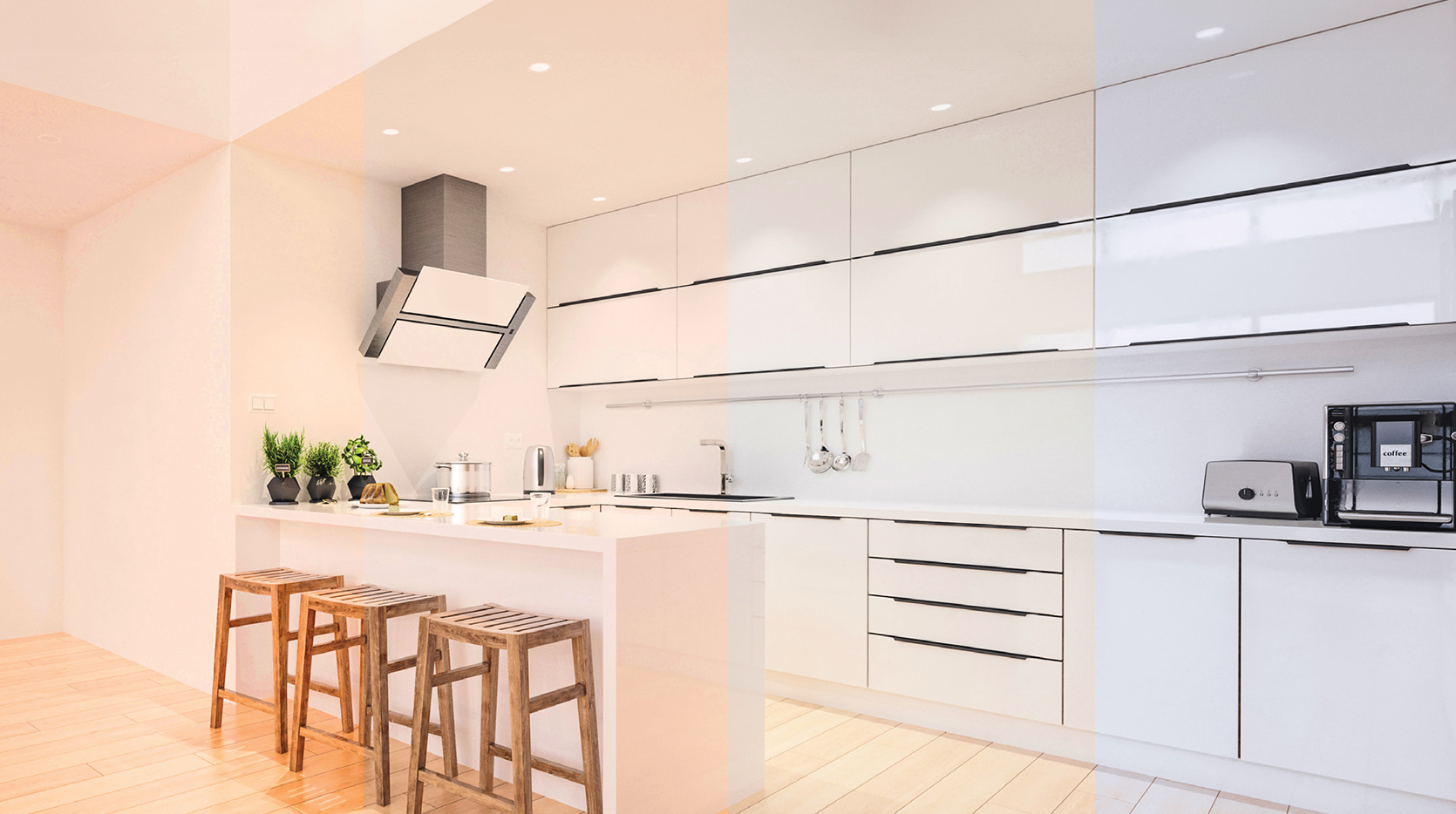

Your lighting, your space, your way.

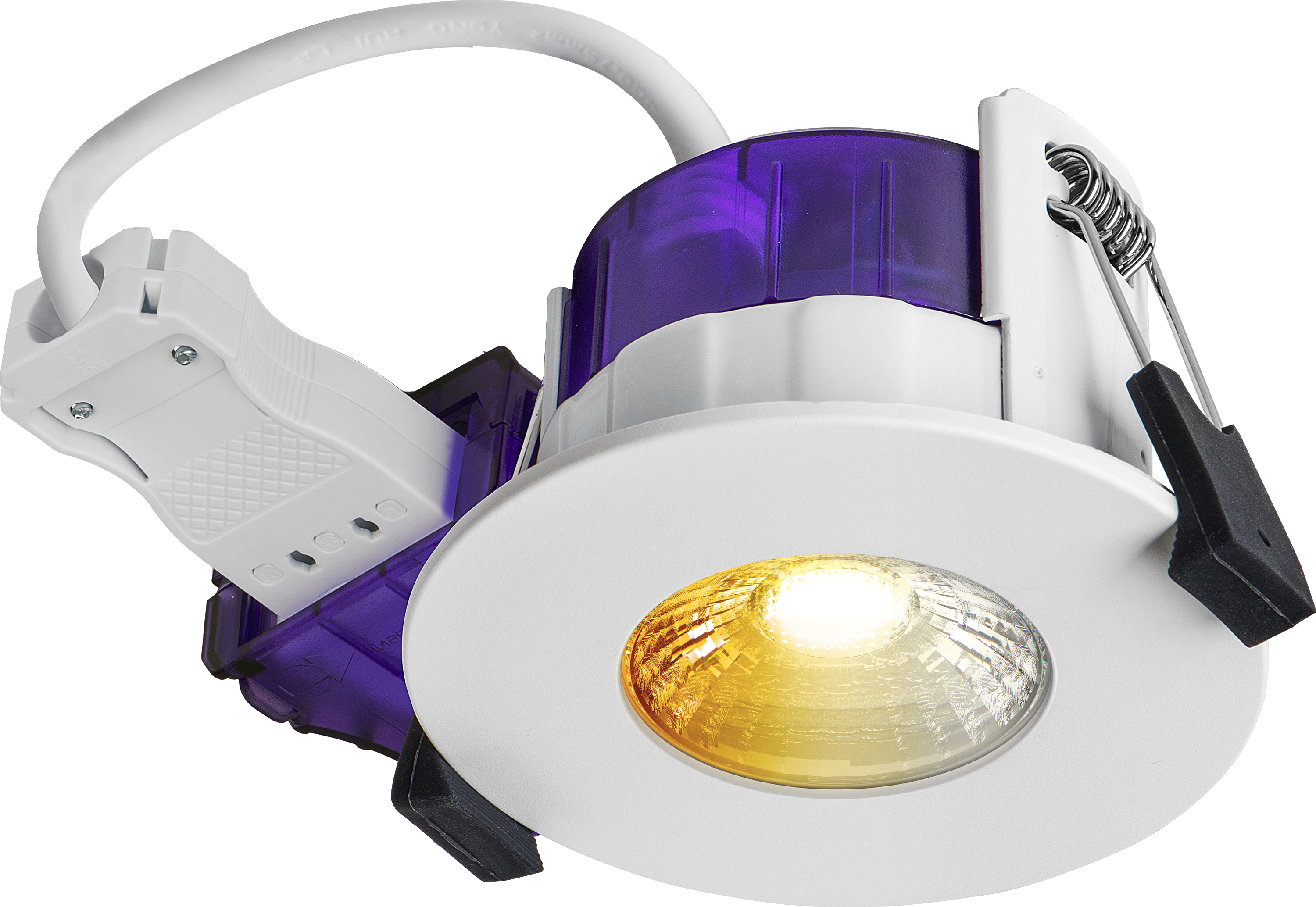

Dim2Warm CCT technology adjusts the colour temperature as you dim to create that warm, cosy tone associated with traditional dimmed filament and halogen lighting. The more you dim, the warmer the glow. 2400K to 3000K.

Opt for the 4-colour CCT version for maximum flexibility. Offering a choice of 2700K & 3000K, which creates a more relaxed and comfortable environment, or 4000K & 6000K suitable for more task-focused rooms.

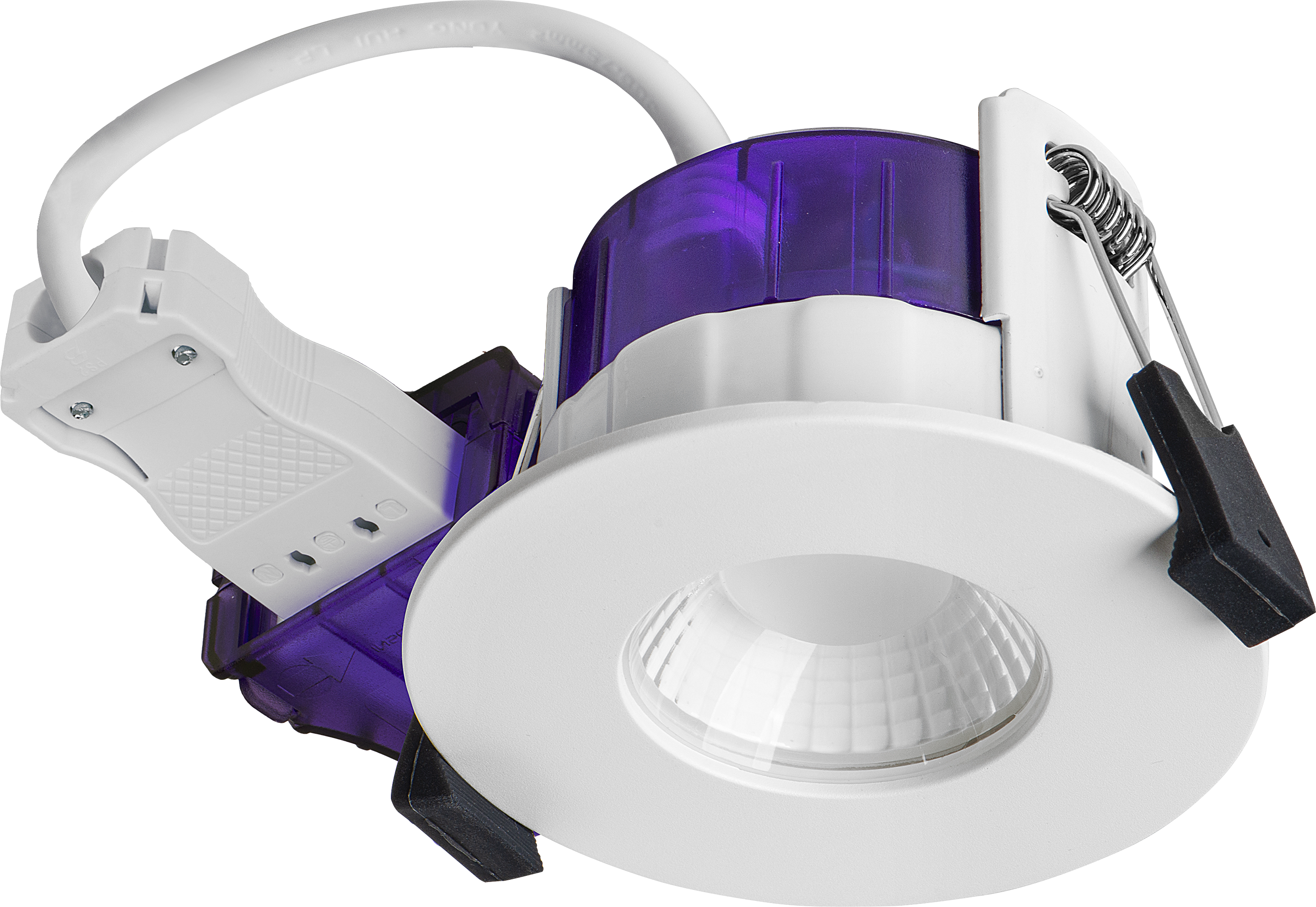

Effortless, Tool-Less Installation.

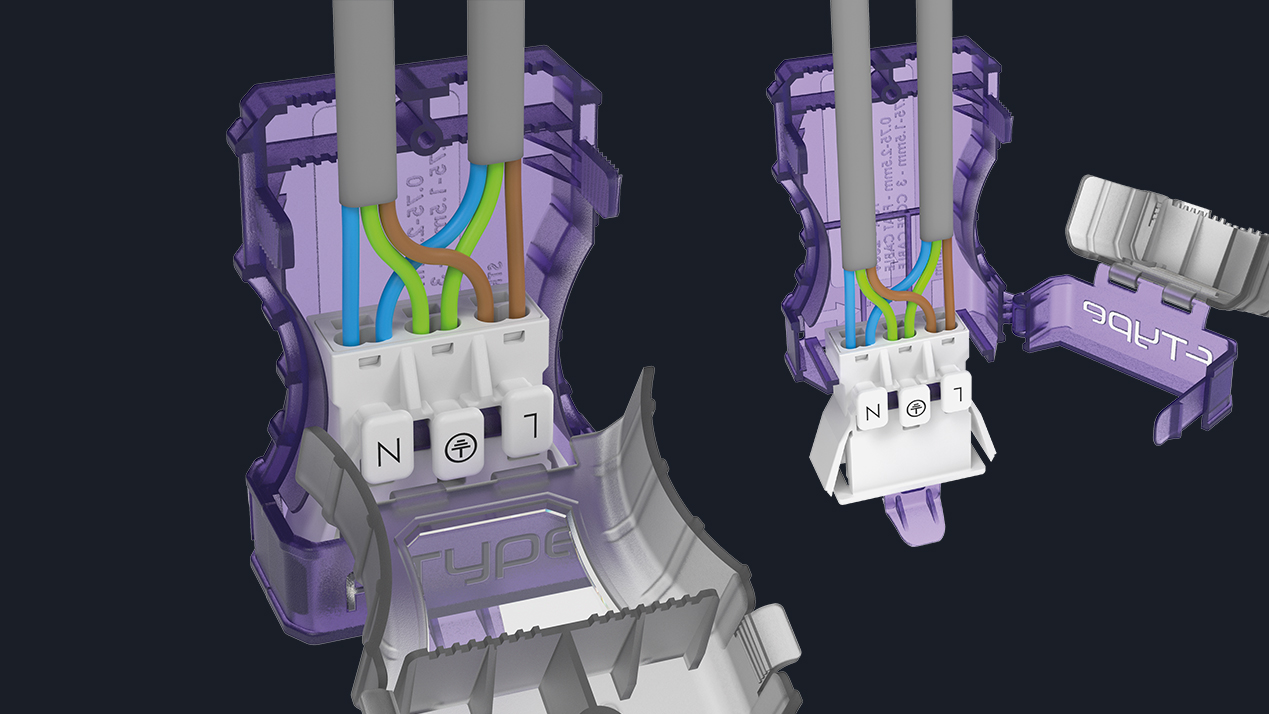

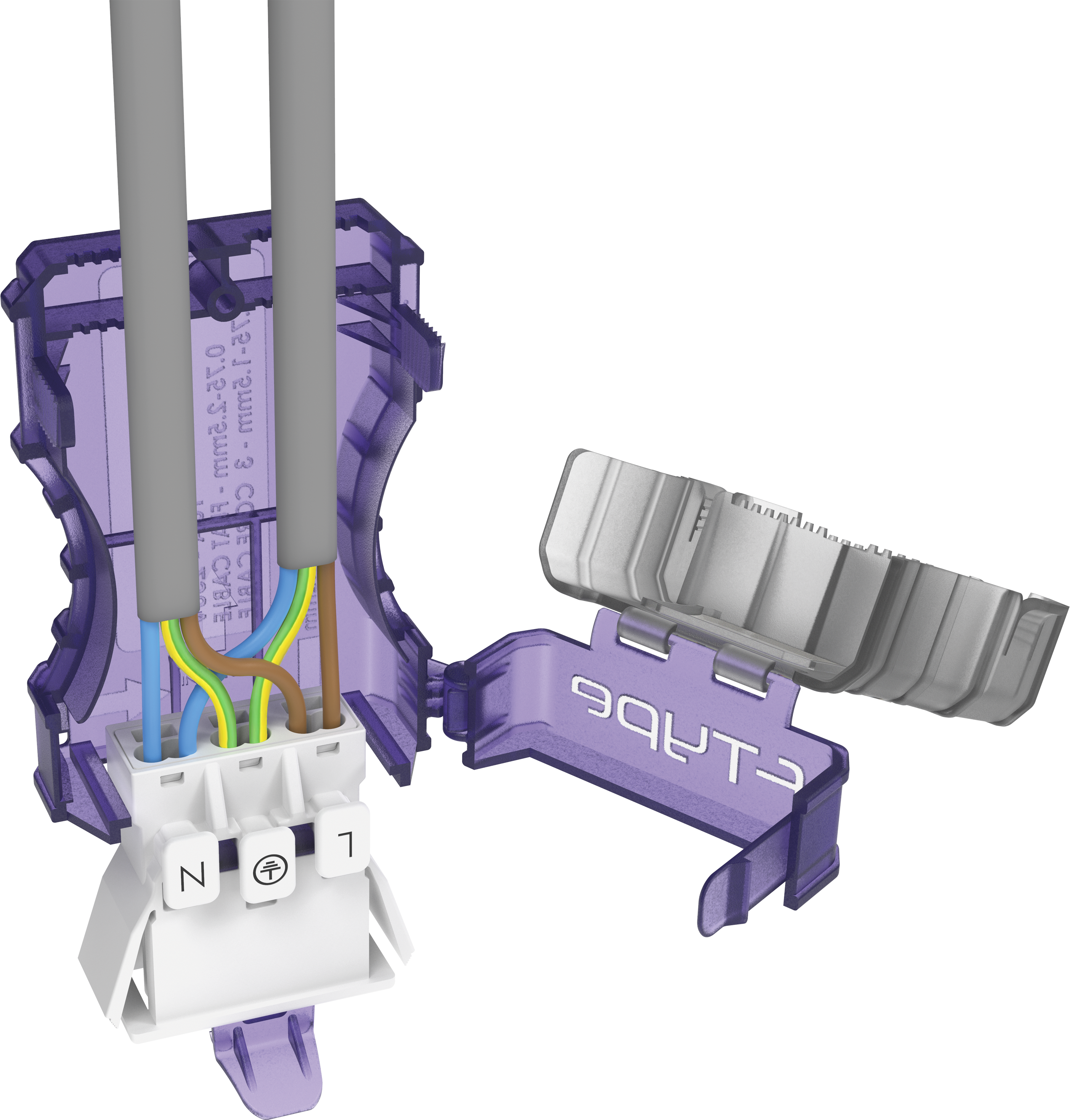

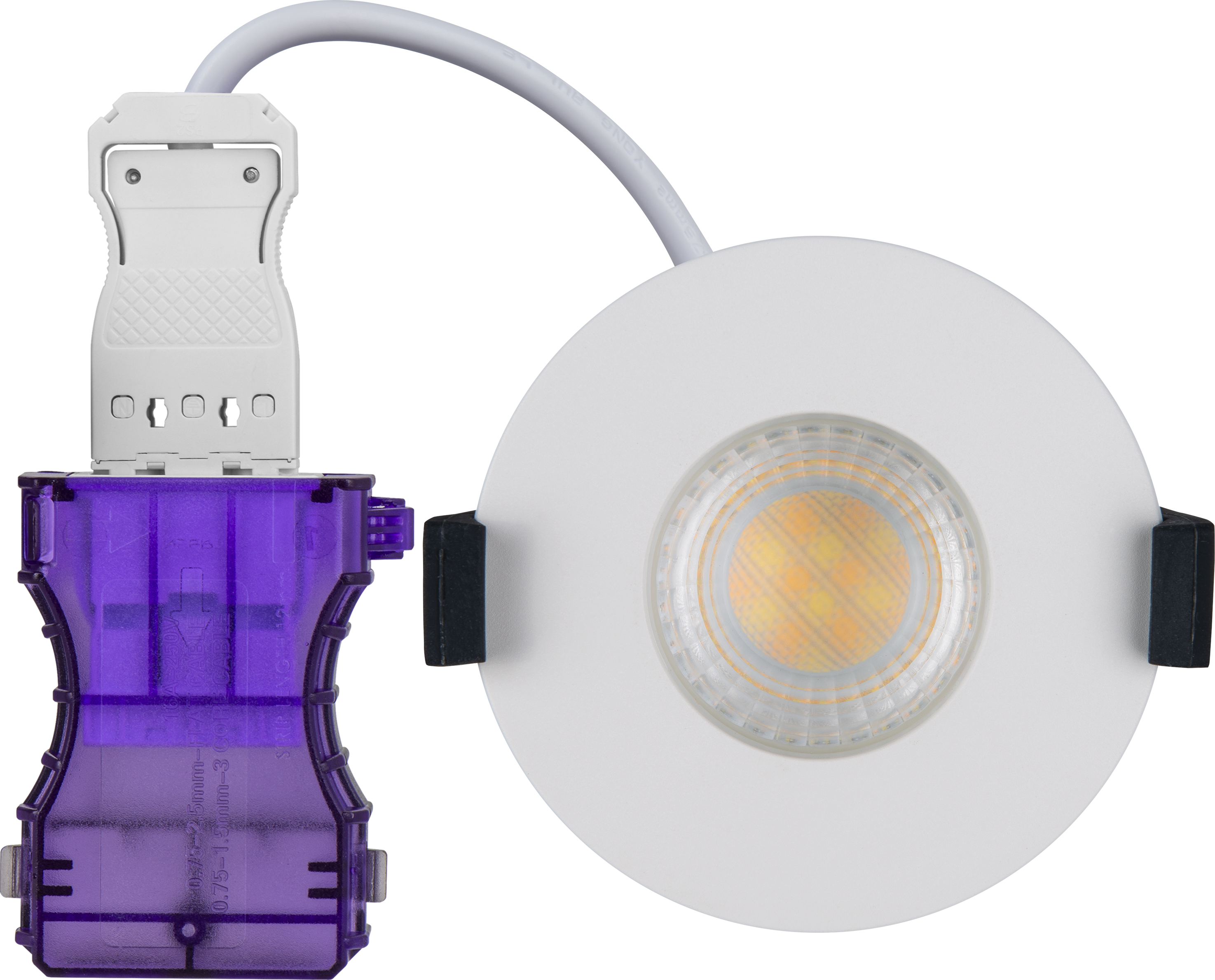

Unique removable Speedfit connector, push-fit terminal block for improved access, 500V insulation resistance, and VDA improved. Trade-rated, with a loop in/out piano key terminals that can accommodate either solid or stranded wire, designed for quick and simple installation.

Secure Wire Management.

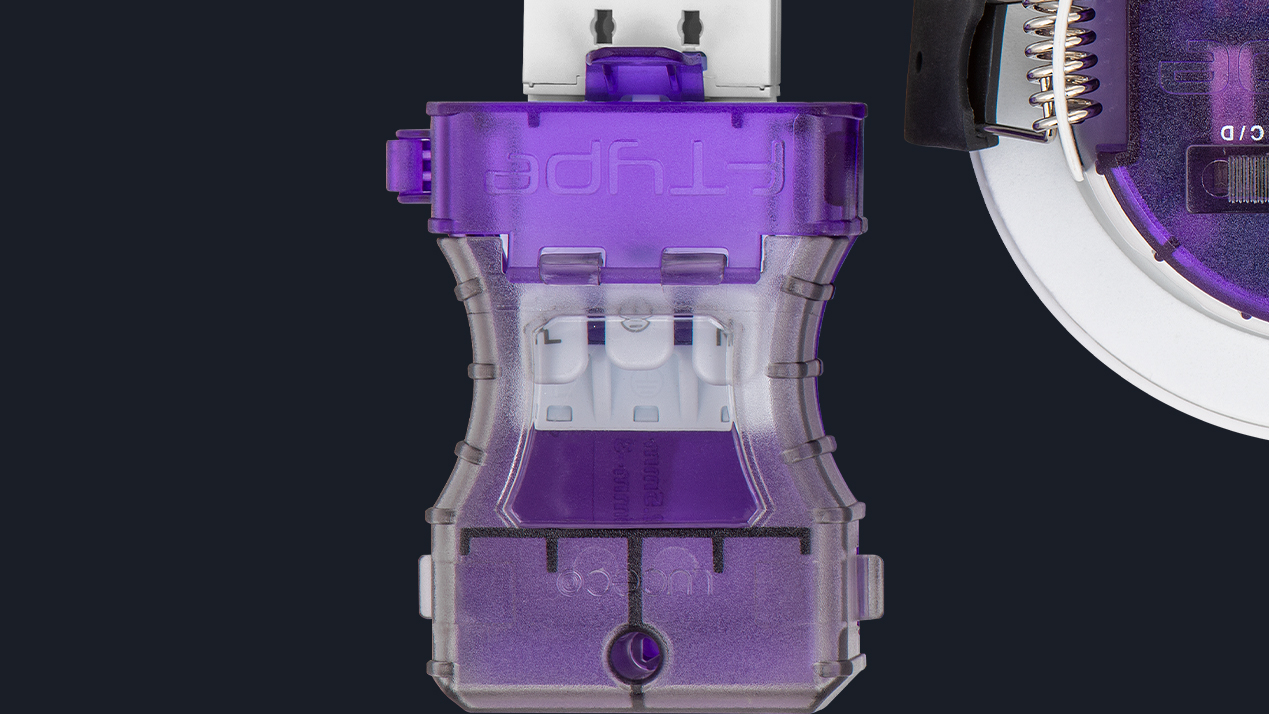

QuickView cable window enables at-a-glance inspection of wiring connections, ensuring safe and secure cable termination. Providing you with an added level of safety and reassurance.

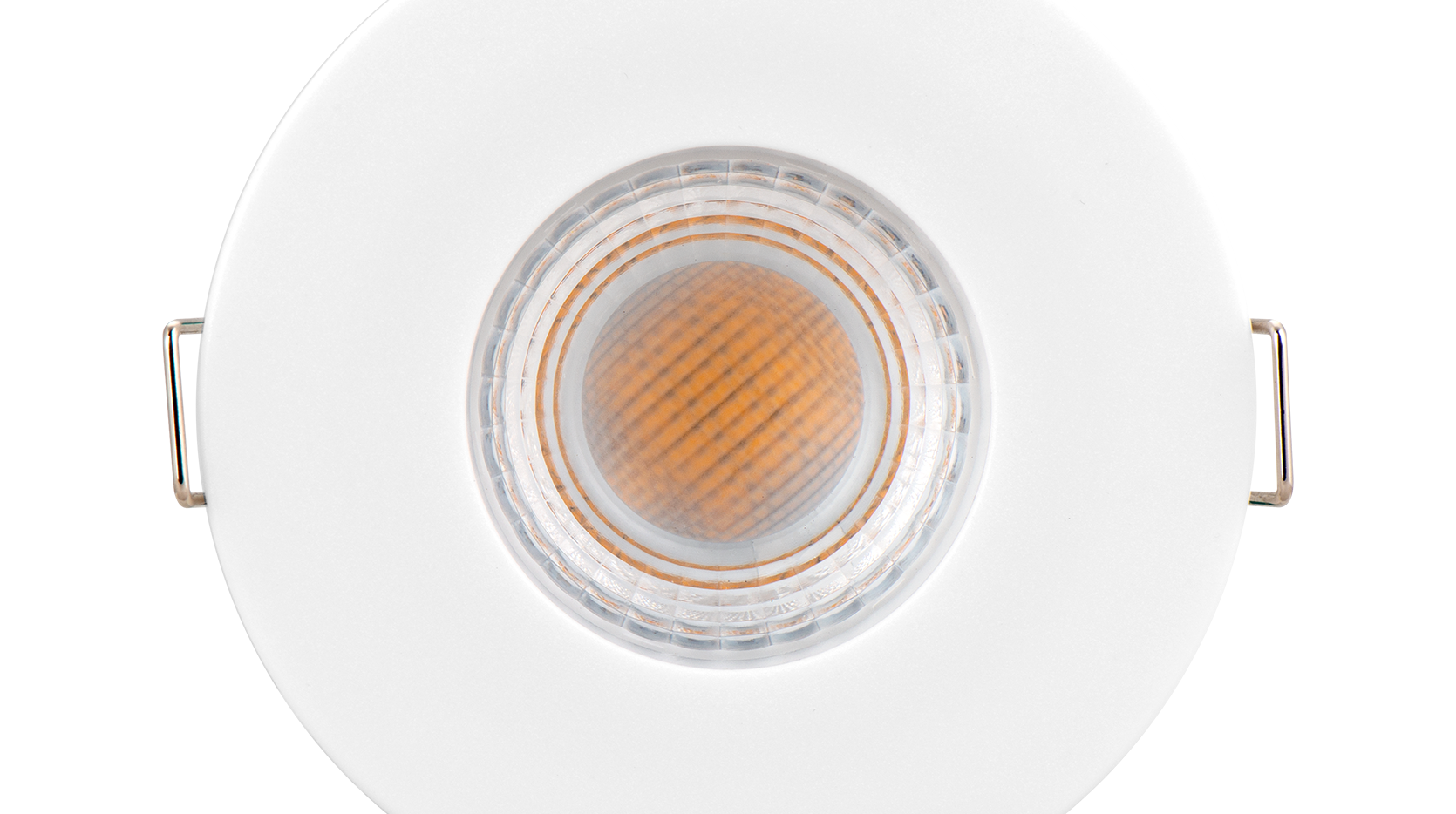

Crystaline-Optic lens for flawless lighting.

Utilising the latest super-efficient LED technology, with a wide 60-degree baffled back-lens ensures reduced glare for a soft and balanced lighting distribution, enhancing visual comfort while maintaining high-quality illumination

Offering three versatile lens types: Fixed-Flat for clean, uniform lighting, ideal in hallways and open spaces; Regressed for reduced glare and softer lighting distribution; and Adjustable, giving 20 degrees of flexibility, perfect for accenting art, architecture, and unique spots.

Code	Driver Type	Bezel Type	Colour Temp (CCT) (K)	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Cutout (mm)	Add to Spec
Code UTF6WD2W	Driver Type Dim To Warm	Bezel Type Flat	Colour Temp (CCT) (K) 3000, 4000, Dim2Warm 3000K-2400K	Lumen Output (lm) 460/690	Max Wattage (W) 4/6	Efficacy (Lm/W) 115/115	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code UTR6WD2W	Driver Type Dim To Warm	Bezel Type Regressed	Colour Temp (CCT) (K) 3000, 4000, Dim2Warm 3000K-2400K	Lumen Output (lm) 460/690	Max Wattage (W) 4/6	Efficacy (Lm/W) 115/115	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code UTA6WD2W	Driver Type Dim To Warm	Bezel Type Adjustable	Colour Temp (CCT) (K) 3000, 4000, Dim2Warm 3000K-2400K	Lumen Output (lm) 460/690	Max Wattage (W) 4/6	Efficacy (Lm/W) 115/115	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code UTF6WCCT	Driver Type Colour Change	Bezel Type Flat	Colour Temp (CCT) (K) 2700, 3000, 4000, 6000	Lumen Output (lm) 485/750	Max Wattage (W) 4/6	Efficacy (Lm/W) 121/125	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code UTR6WCCT	Driver Type Colour Change	Bezel Type Regressed	Colour Temp (CCT) (K) 2700, 3000, 4000, 6000	Lumen Output (lm) 485/750	Max Wattage (W) 4/6	Efficacy (Lm/W) 121/125	Cutout (mm) 76	Add to Spec Remove from Spec Processing
