LuxPanel Circular

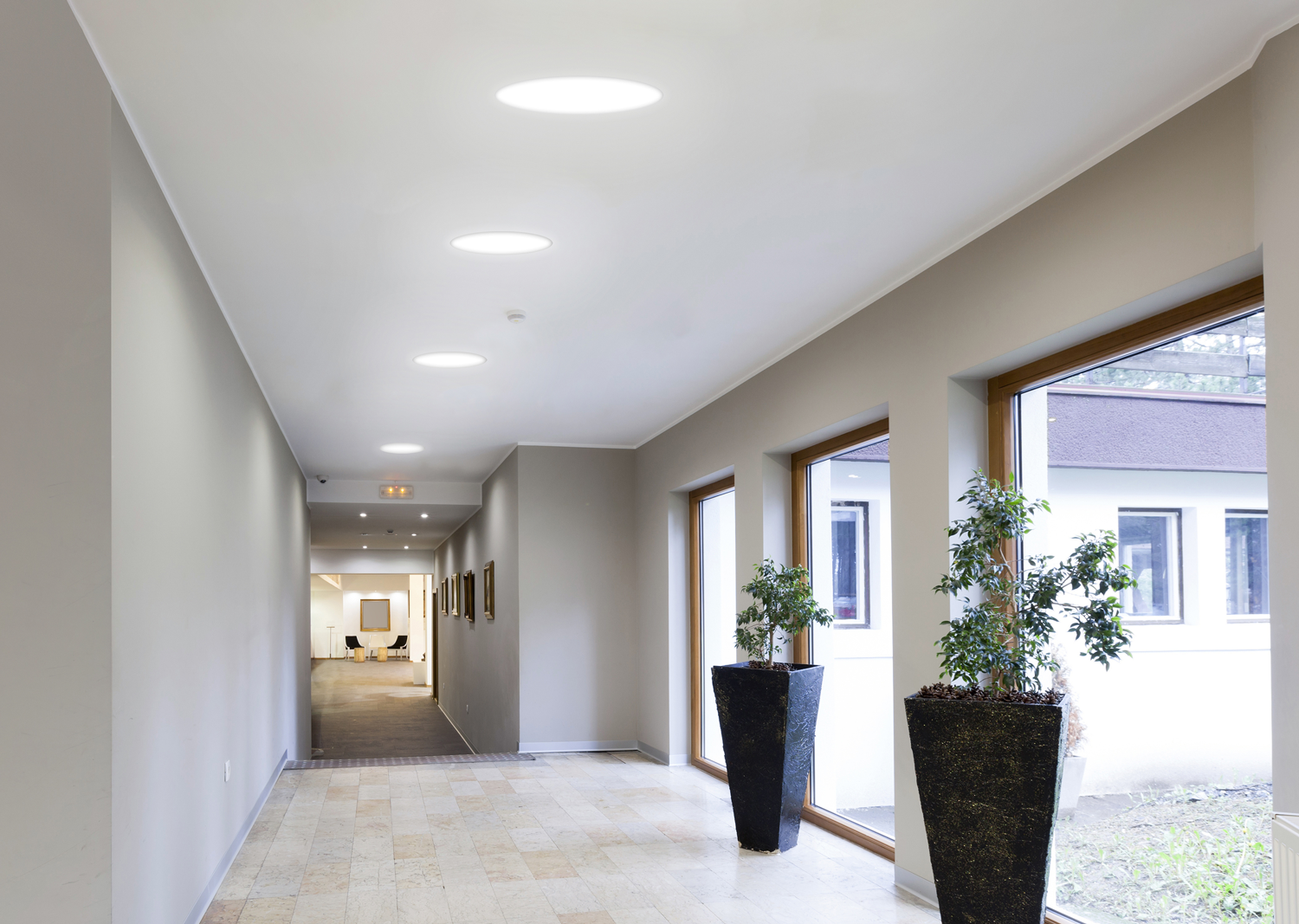

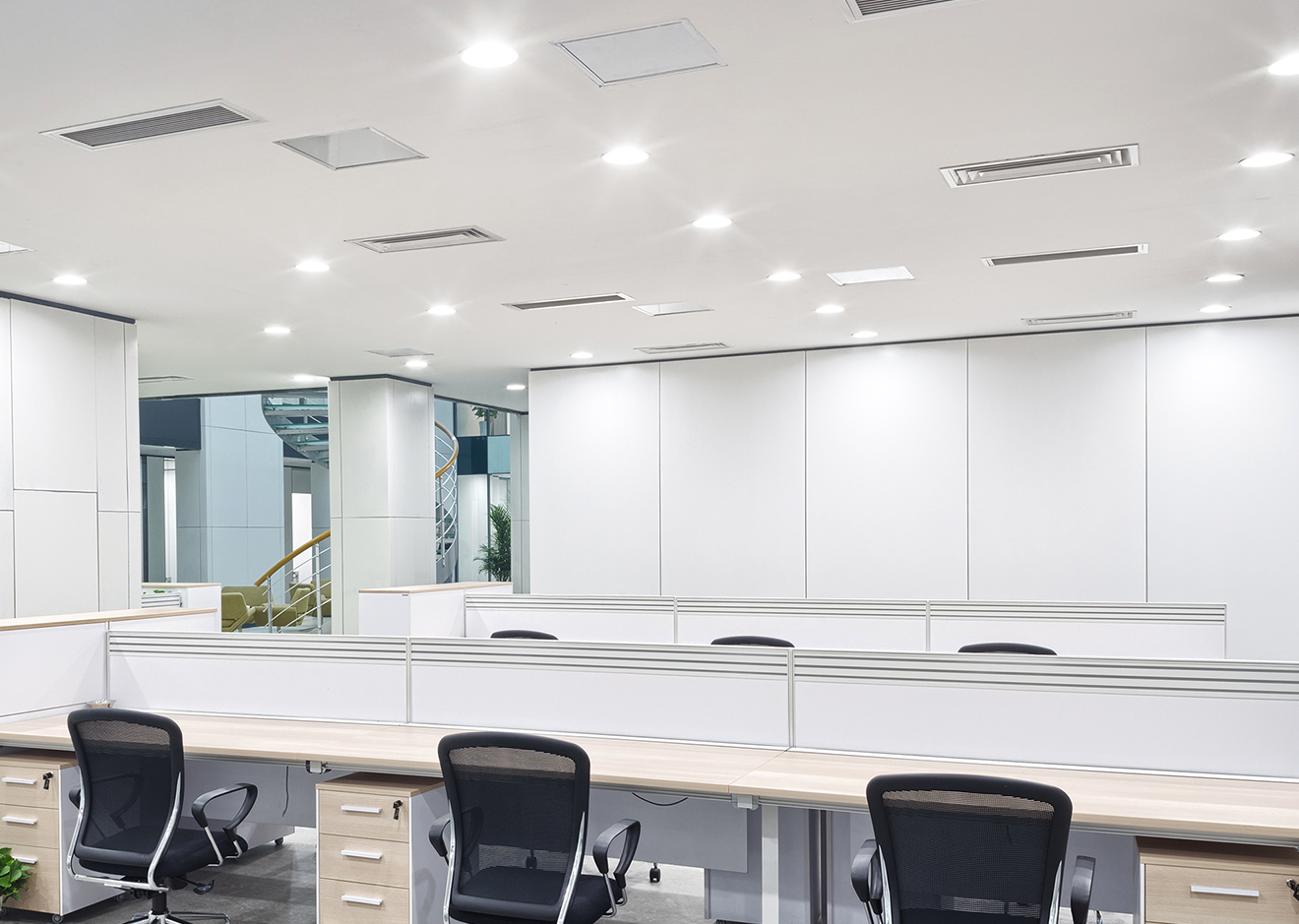

A comprehensive family of circular LED panels the Luceco LuxPanel Circular family is available in a wealth of sizes and colour temperatures to best suit the needs of each project.
Luceco's LuxPanel Circular offers a slimline design suitable for low ceiling voids, with a white aluminium frame and polycarbonate TPb diffuser. Each product can be specified in 3000K or 4000K and as fixed output or digital dimmable solution, providing high-quality lighting solutions for commercial spaces.
Slimline circular edgelit design suitable for recessed mounting low ceiling voids
Utilising the latest PMMA crystal light guide material for high clarity and improved performance
3000K and 4000K CCT available in Fixed Output & Digital Dimmable driver modules
Full family available including 120, 150, 180, 240mm diameter
LuxPanel Circular is covered by Luceco’s 5-year warranty
Additional Product Options
We offer additional product options to give ultimate control and flexibility to match any application
Remote Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's remote emergency pack provides 3 hours worth of back-up power to enable this to happen meeting all standards and regulations. Product Code; LED3EP80
Self-Test Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations. Product Code; LED3EP80EST
DALI Addressable Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations. Product Code; LED3EP80DED
| Code | Driver Type | Bezel Type | Colour Temp (CCT) (K) | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Cutout (mm) | Add to Spec |
|---|---|---|---|---|---|---|---|---|
|
Code
LP150WS40
|
Driver Type
Fixed Output
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
675
|
Max Wattage (W)
9
|
Efficacy (Lm/W)
75
|
Cutout (mm)
131mm
|
|
|
Code
LP150WD40
|
Driver Type
Digital Dimmable
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
675
|
Max Wattage (W)
9
|
Efficacy (Lm/W)
75
|
Cutout (mm)
131mm
|
|
|
Code
LP180WS40
|
Driver Type
Fixed Output
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
900
|
Max Wattage (W)
10
|
Efficacy (Lm/W)
90
|
Cutout (mm)
161mm
|
|
|
Code
LP180WD40
|
Driver Type
Digital Dimmable
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
900
|
Max Wattage (W)
10
|
Efficacy (Lm/W)
90
|
Cutout (mm)
161mm
|
|
|
Code
LP240WS40
|
Driver Type
Fixed Output
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
1260
|
Max Wattage (W)
14
|
Efficacy (Lm/W)
90
|
Cutout (mm)
225mm
|
|
|
Code
LP240WD40
|
Driver Type
Digital Dimmable
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
1260
|
Max Wattage (W)
14
|
Efficacy (Lm/W)
90
|
Cutout (mm)
225mm
|
|
|
Code
LP240HWS40
|
Driver Type
Fixed Output
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
1470
|
Max Wattage (W)
16
|
Efficacy (Lm/W)
92
|
Cutout (mm)
225mm
|
|
|
Code
LP240HWD40
|
Driver Type
Digital Dimmable
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
1470
|
Max Wattage (W)
16
|
Efficacy (Lm/W)
92
|
Cutout (mm)
225mm
|
|
|
Code
LP240EWS40
|
Driver Type
Fixed Output
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
2100
|
Max Wattage (W)
22
|
Efficacy (Lm/W)
95
|
Cutout (mm)
225mm
|
|
|
Code
LP240EWD40
|
Driver Type
Digital Dimmable
|
Bezel Type
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
2100
|
Max Wattage (W)
22
|
Efficacy (Lm/W)
95
|
Cutout (mm)
225mm
|
