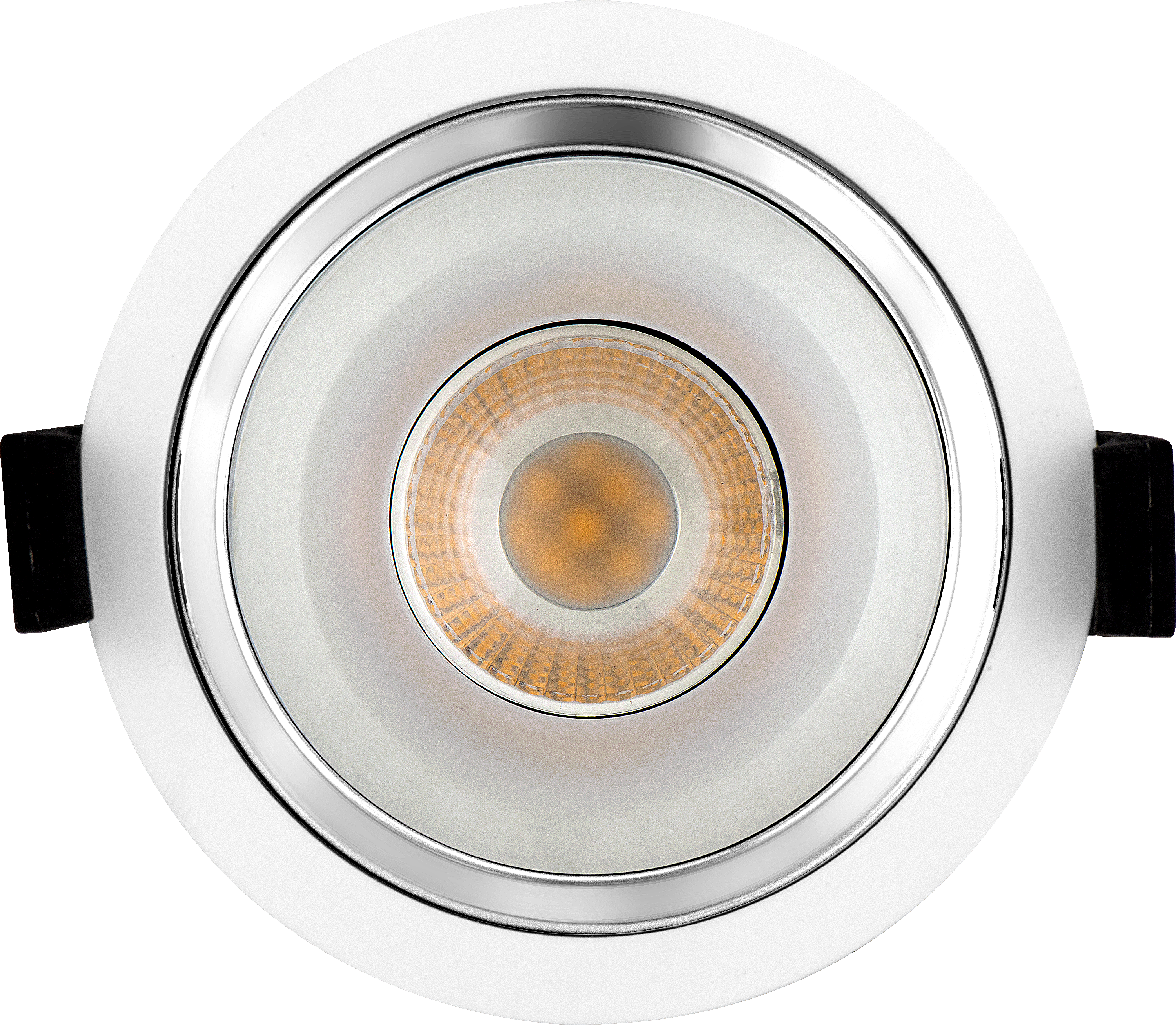

Palladium Downlights

Palladium downlight: CrystalineOptics™ for low-glare illumination, die-cast aluminium heat sink, modular design for all interiors, IP44 rated

View Product Family

By utilising CrystalineOptics™ Palladium offers low-glare illumination which reduces eyestrain and improves wellbeing. With a die-cast aluminium heat sink, and a range of different attachments, this modular-designed downlight will suit all interior designs and decors. Rated to IP44, Palladium can meet above-average demands when installed in a project.

Die-cast aluminium heatsink with clip on optical attachment and remote driver

6W 8W & 15W LED modules with circular adjustable gloss reflector LED modules

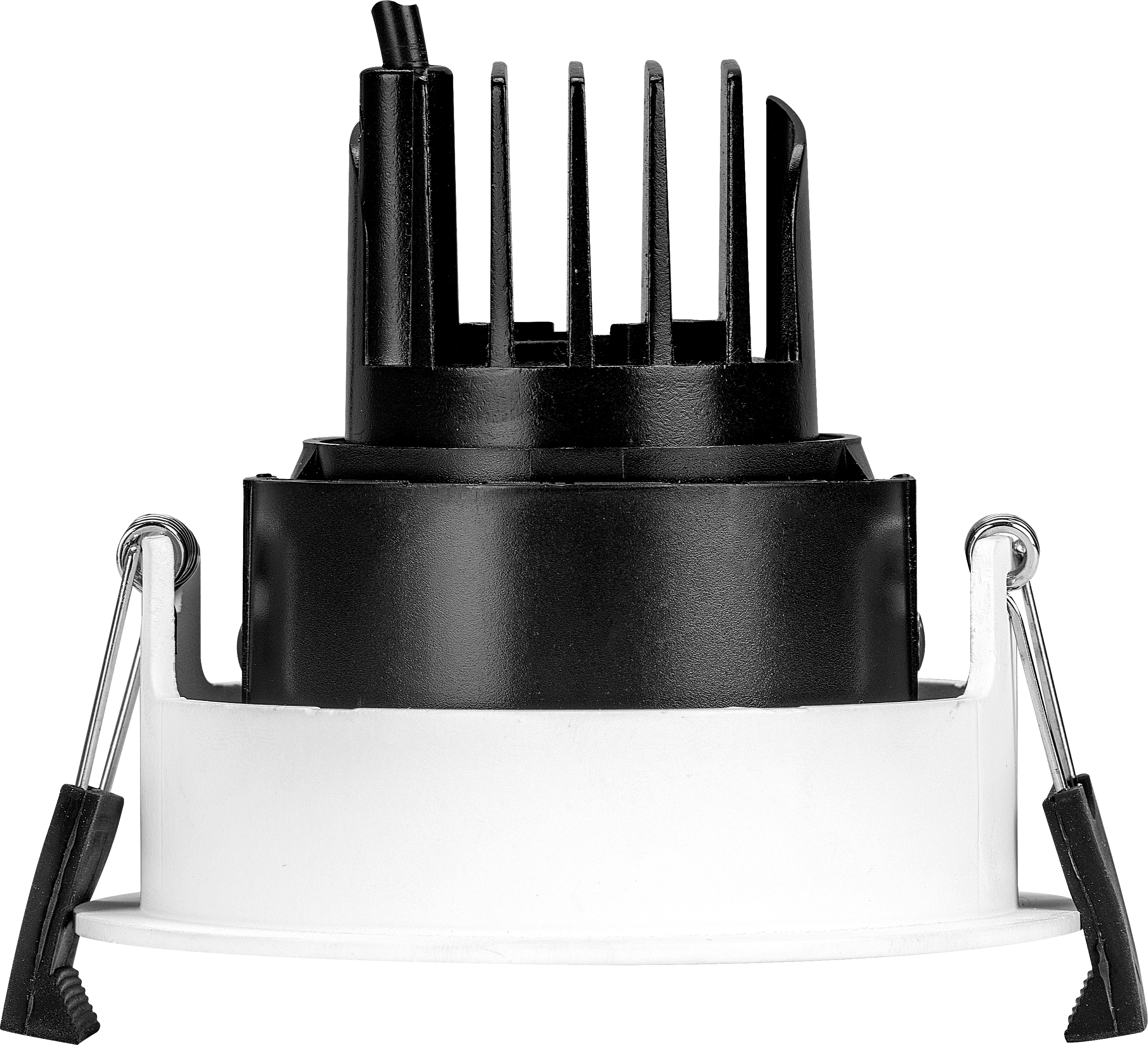

Recessed mounted with spring steel clips allows installation into plasterboard and suspended ceiling systems

Full family includes Gloss, Regressed Low Glare, Fixed and Adjustable bezels

Code	Upsell Feature	Driver Type	Colour Temp (CCT) (K)	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Cutout (mm)	Add to Spec
Code LDP8WA6GS40	Upsell Feature Circular Gloss Adjustable	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 510	Max Wattage (W) 6	Efficacy (Lm/W) 85	Cutout (mm) 86	Add to Spec Remove from Spec Processing
Code LDP8WA8GS40	Upsell Feature Circular Gloss Adjustable	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 660	Max Wattage (W) 8	Efficacy (Lm/W) 82	Cutout (mm) 86	Add to Spec Remove from Spec Processing
Code LDP8WA6BS40	Upsell Feature Circular Gloss Regressed	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 510	Max Wattage (W) 6	Efficacy (Lm/W) 85	Cutout (mm) 86	Add to Spec Remove from Spec Processing
Code LDP8WA8BS40	Upsell Feature Circular Gloss Regressed	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 660	Max Wattage (W) 8	Efficacy (Lm/W) 82	Cutout (mm) 86	Add to Spec Remove from Spec Processing
Code LDP8WF6WS40	Upsell Feature Circular White Fixed	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 560	Max Wattage (W) 6	Efficacy (Lm/W) 93	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code LDP8WF8WS40	Upsell Feature Circular White Fixed	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 730	Max Wattage (W) 8	Efficacy (Lm/W) 91	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code LDP8WA6WS40	Upsell Feature Circular White Adjustable	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 560	Max Wattage (W) 6	Efficacy (Lm/W) 93	Cutout (mm) 76	Add to Spec Remove from Spec Processing
Code LDP8WA8WS40	Upsell Feature Circular White Adjustable	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 730	Max Wattage (W) 8	Efficacy (Lm/W) 91	Cutout (mm) 76	Add to Spec Remove from Spec Processing

Code	Upsell Feature	Driver Type	Colour Temp (CCT) (K)	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Cutout (mm)	Add to Spec
Code LDP8WASQ6GS40	Upsell Feature Square Gloss Adjustable	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 510	Max Wattage (W) 6	Efficacy (Lm/W) 85	Cutout (mm) 86	Add to Spec Remove from Spec Processing
Code LDP8WASQ8GS40	Upsell Feature Square Gloss Adjustable	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 660	Max Wattage (W) 8	Efficacy (Lm/W) 82	Cutout (mm) 86	Add to Spec Remove from Spec Processing
Code LDP8WASQ6BS40	Upsell Feature Square Gloss Regressed	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 510	Max Wattage (W) 6	Efficacy (Lm/W) 85	Cutout (mm) 86	Add to Spec Remove from Spec Processing
Code LDP8WASQ8BS40	Upsell Feature Square Gloss Regressed	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 660	Max Wattage (W) 8	Efficacy (Lm/W) 82	Cutout (mm) 86	Add to Spec Remove from Spec Processing
