Platinum Surface
The Platinum Surface range by Luceco offers high-quality downlights for various applications with sleek and modern designs.

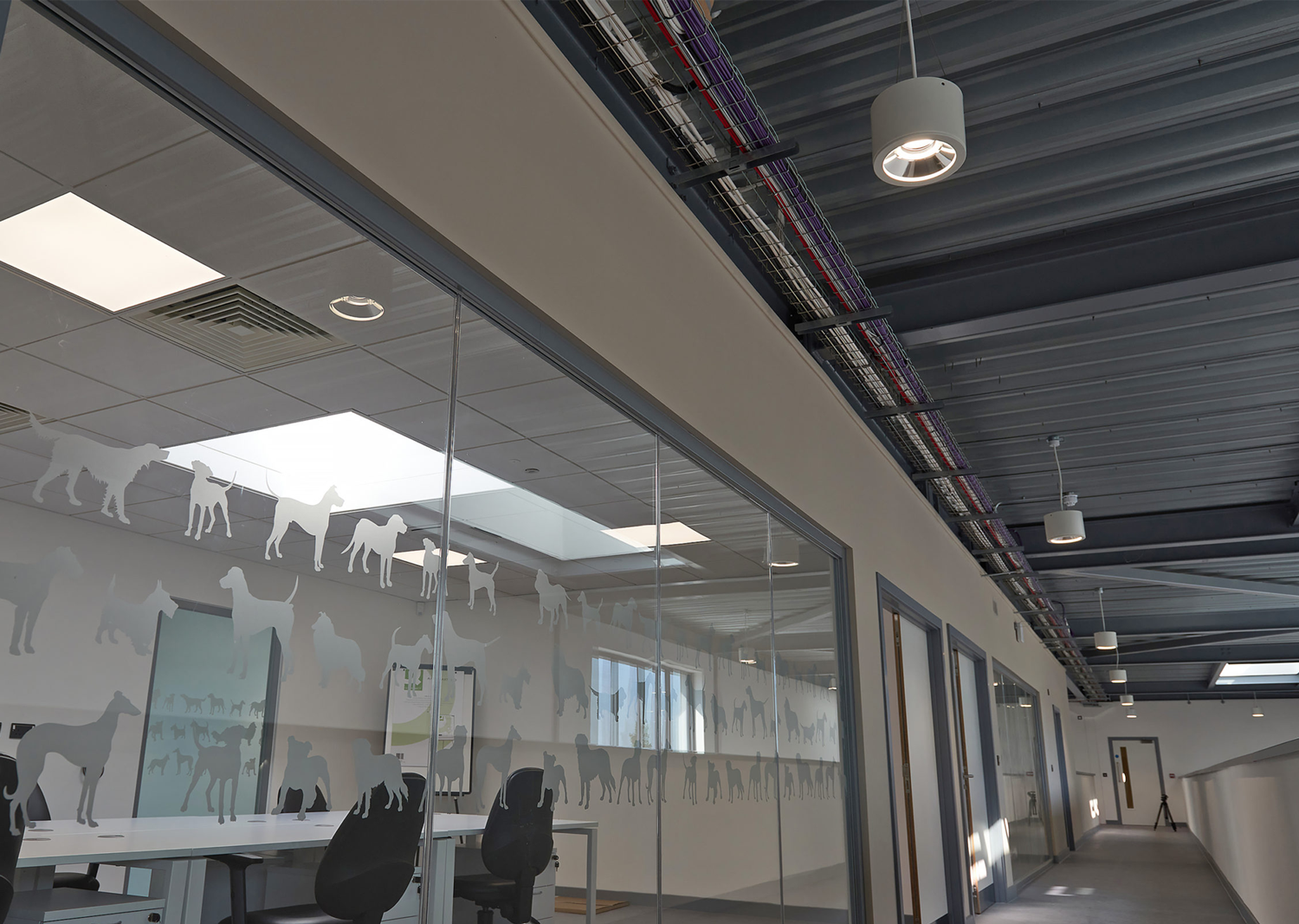

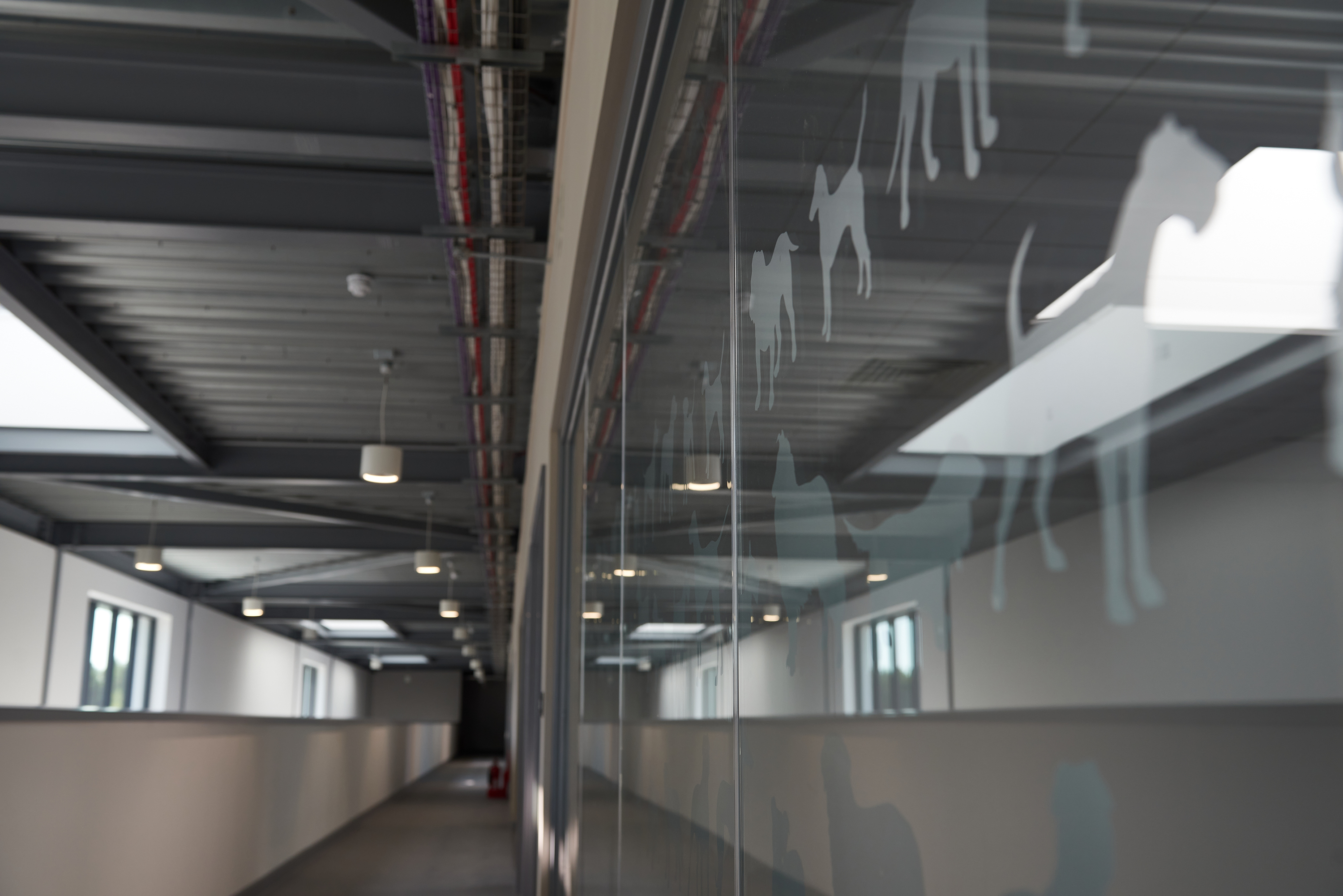

Platinum Surface is a surface-mounted high performance downlight range with an impressive CRI of >80. With the flexibility to be surface, suspension or BESA mounted, Platinum Surface offers longevity thanks to its IK07 rating supported by Luceco’s 5 year warranty
Die-cast aluminium body designed to provide optimal thermal control with aluminium bezel and aluminium reflector.
Surface high performance downlight with efficacy up to 129 Llm/cW with matt reflector
Surface suspension and BESA mounted
Additional Product Options
We offer additional product options to give ultimate control and flexibility to match any application
DALI Digital Dimming
DALI Digital Dimming offers precise control of individual fixtures and groups of lights, which can lead to decreased energy consumption and saved running costs. All options are available as DALI dimmable Insert D, eg. LDPS20W33GD40-05
Self-Test Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations.
DALI Addressable Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations.
3000K Colour Temperature
3000K light provides a warmer more comforting effect that can be preferred in many of applications including certain public areas and domestic settings
| Code | Driver Type | Colour Temp (CCT) (K) | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Add to Spec |
|---|---|---|---|---|---|---|
|
Code
LDPS20W12MS40
|
Driver Type
Fixed Output
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
1250
|
Max Wattage (W)
10
|
Efficacy (Lm/W)
125
|
|
|
Code
LDPS20W16MS40
|
Driver Type
Fixed Output
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
1650
|
Max Wattage (W)
13
|
Efficacy (Lm/W)
127
|
|
|
Code
LDPS20W25MS40
|
Driver Type
Fixed Output
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
2500
|
Max Wattage (W)
19
|
Efficacy (Lm/W)
132
|
|
|
Code
LDPS20W33MS40
|
Driver Type
Fixed Output
|
Colour Temp (CCT) (K)
4000
|
Lumen Output (lm)
3300
|
Max Wattage (W)
26
|
Efficacy (Lm/W)
127
|
