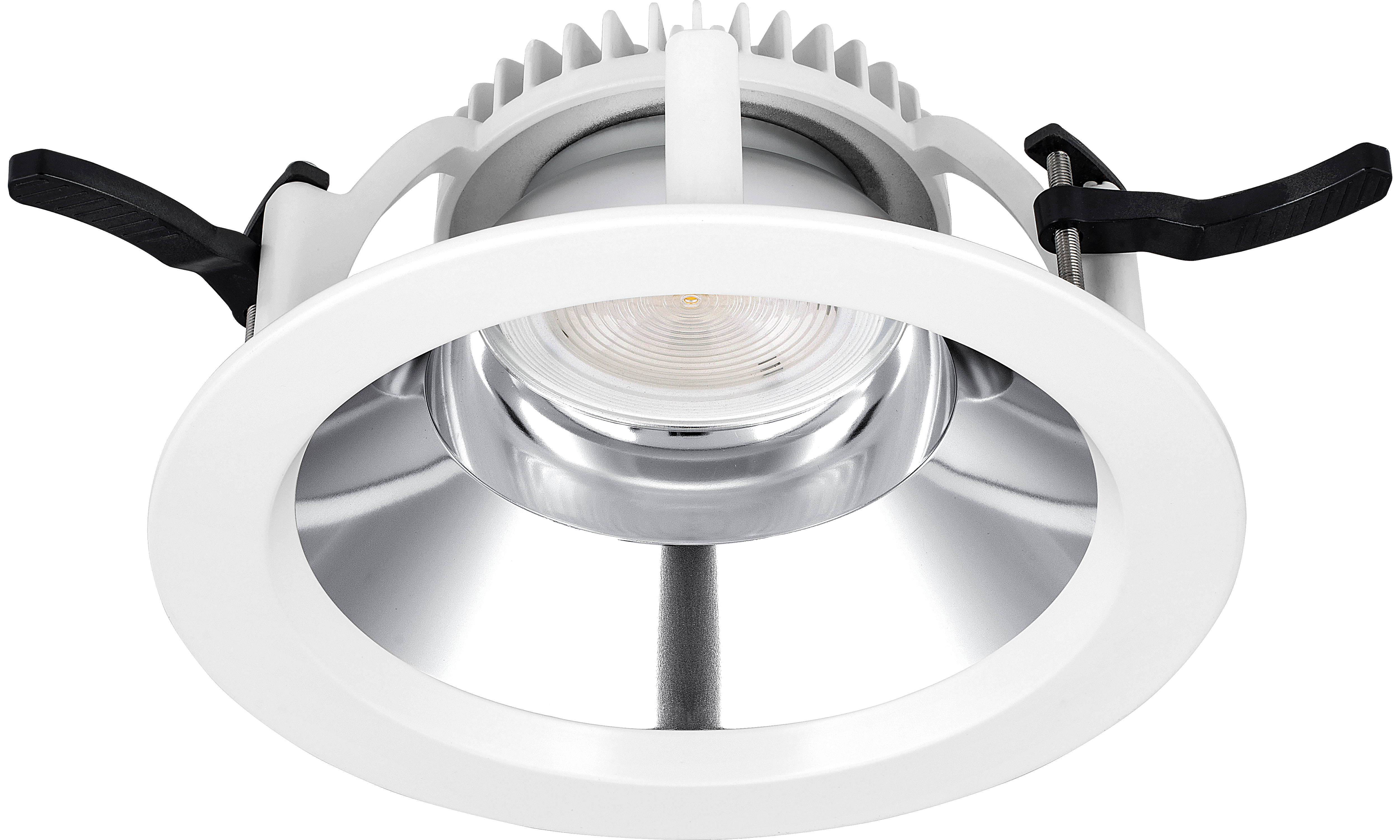

220mm diameter commercial downlight with gloss reflector
Super Efficient LEDs achieving 125Llm/W
Neutral white 4000k CCT with CRI 80
Fixed output control gear
Unique swing tab design for quick and easy installation
Technical Data
Code | LDP20W12GS40 |
Driver Type | Fixed Output |
Lumen Output (lm) | 1250 |
Max Wattage (W) | 9.5 |
Efficacy (Lm/W) | 132 |
Colour Temp (CCT) (K) | 4000 |
Beam Angle (degrees) | 85 |
CRI | >80 |
Base Colour | White - RAL 9016 (Traffic White) |
Dimensions and Installation
Cutout (mm) | 205 |
Unpacked Depth (mm) | 116 |
Unpacked Width (mm) | 228 |
Unpacked Height (mm) | 228 |
Unpacked Net Weight (kg) | 0.909 |
Performance & Safety
Lifetime (h) | 50000 |
L/B at Life | L80-B10 |
L70 Hours (h) | 100000 |
Operating Temperature (C) | -25°C to +40°C |
Power Factor | >0.5 |
IK Rating | IK07 |
