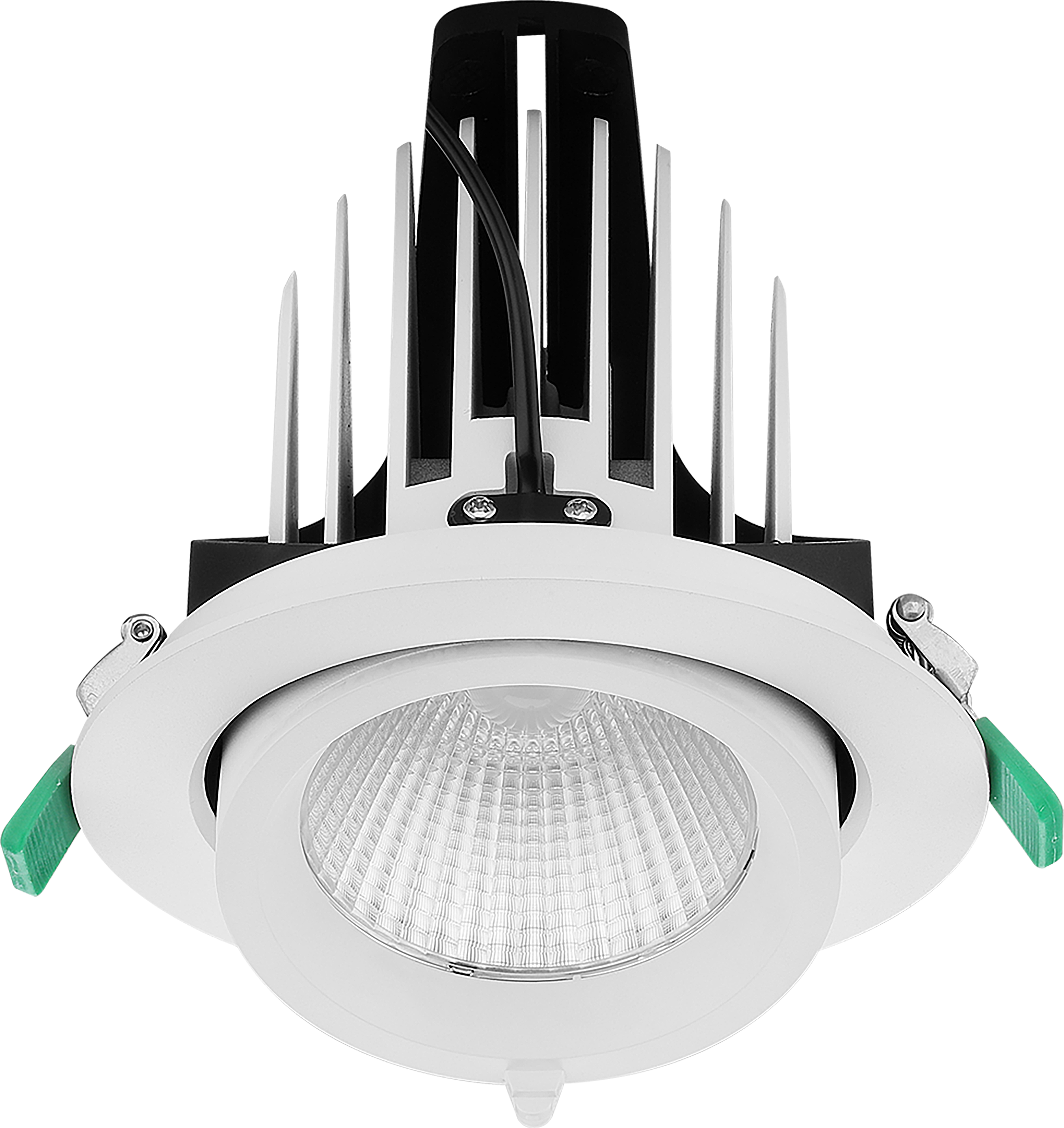

Die-cast aluminium construction with lockable adjustability and multifaceted reflector
Recessed mounted secured with heavy duty steel spring tabs
Supplied with 24 and 38 degree distribution lenses
35W and 70W CDM-T equivalent lumen outputs
Technical Data
| Code | LWCW20S40 |
| Driver Type | Fixed Output |
| Lumen Output (lm) | 1900 |
| Max Wattage (W) | 22 |
| Efficacy (Lm/W) | 86 |
| Colour Temp (CCT) (K) | 4000 |
| Beam Angle (degrees) | 24 |
| CRI | >80 |
| Base Colour | White - RAL 9016 (Traffic White) |
Dimensions and Installation
| Cutout (mm) | 125 |
| Unpacked Depth (mm) | 140 |
| Unpacked Width (mm) | 140 |
| Unpacked Height (mm) | 114.5 |
| Unpacked Net Weight (kg) | 0.725 |
Performance & Safety
| Lifetime (h) | 30000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 55000 |
| Operating Temperature (C) | 0°C to +25°C |
| Input Voltage (V) | 220-240 |
| E-Class | Class2 |
| Power Factor | >0.5 |
| IK Rating | IK04 |
