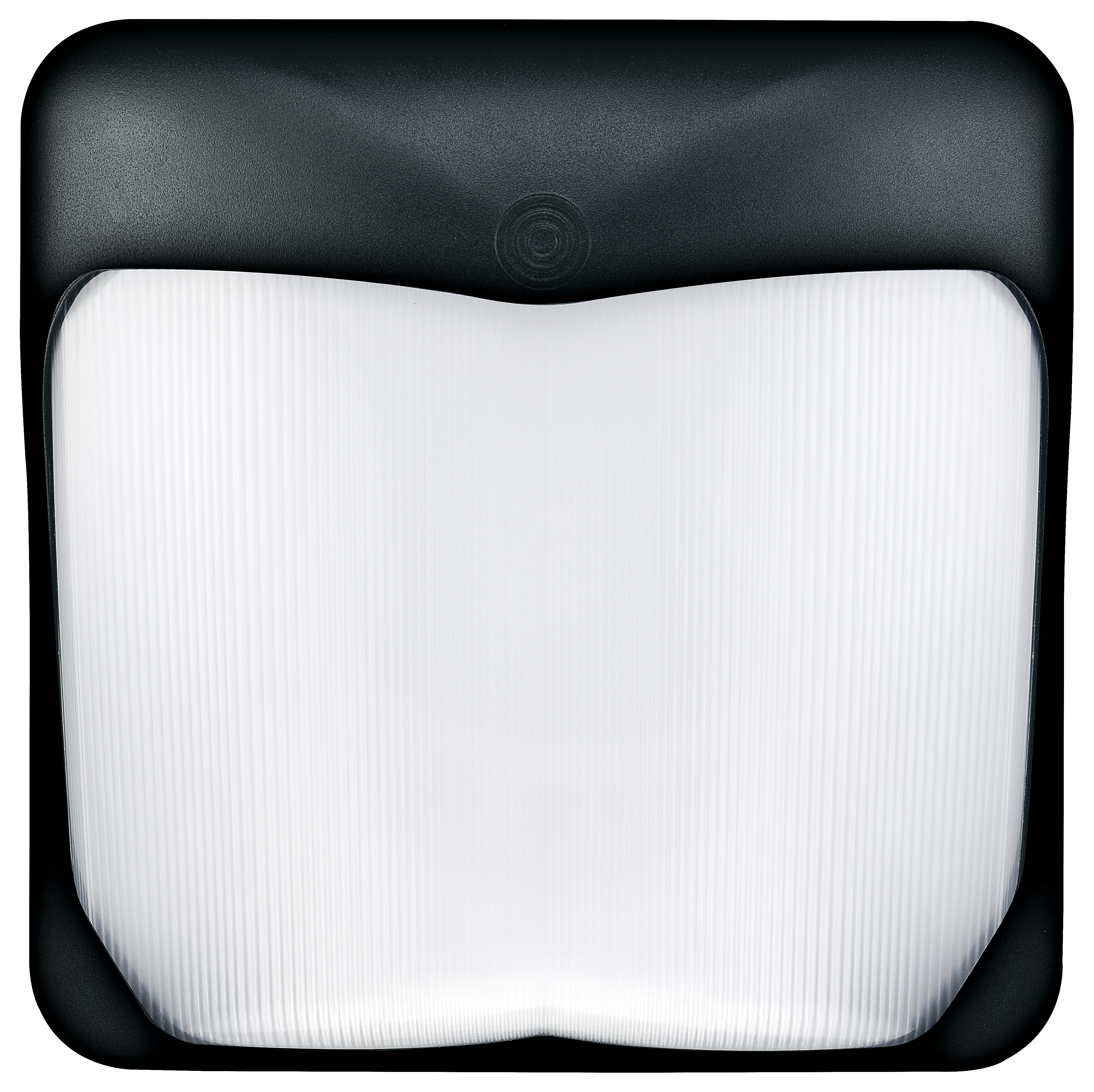

Die-cast aluminium wall pack designed to replace HID
Very Efficient LEDs achieving 100Llm/W
Wide throw optic for maximum spacings
DALI digital dimmable control gear with 3hr maintained emergency with photocell
Finished on RAL7016
Technical Data
Code | LWF35ED40 |
Driver Type | Digital Dimmable + Emergency |
Lumen Output (lm) | 3500 |
Max Wattage (W) | 35 |
Efficacy (Lm/W) | 100 |
Colour Temp (CCT) (K) | 4000 |
CRI | >80 |
Standard Deviations of Colour Matching | <4 |
Base Colour | Anthracite Grey - RAL 7016 |
Onsite Warranty | Yes |
Dimensions and Installation
Unpacked Depth (mm) | 315 |
Unpacked Width (mm) | 315 |
Unpacked Height (mm) | 184 |
Unpacked Net Weight (kg) | 3.16 |
IP Rating | IP65 |
IK Rating | IK08 |
Cutout (mm) | N/A |
Performance & Safety
Lifetime (h) | 50000 |
L/B at Life | L70-B50 |
L70 Hours (h) | 54000 |
L80 Hours (h) | 34000 |
L90 Hours (h) | 16000 |
Operating Temperature (C) | 0°C to +25°C |
E-Class | Class1 |
Power Factor | >0.9 |
UGR 4H 8H | <30 |
