Quarto

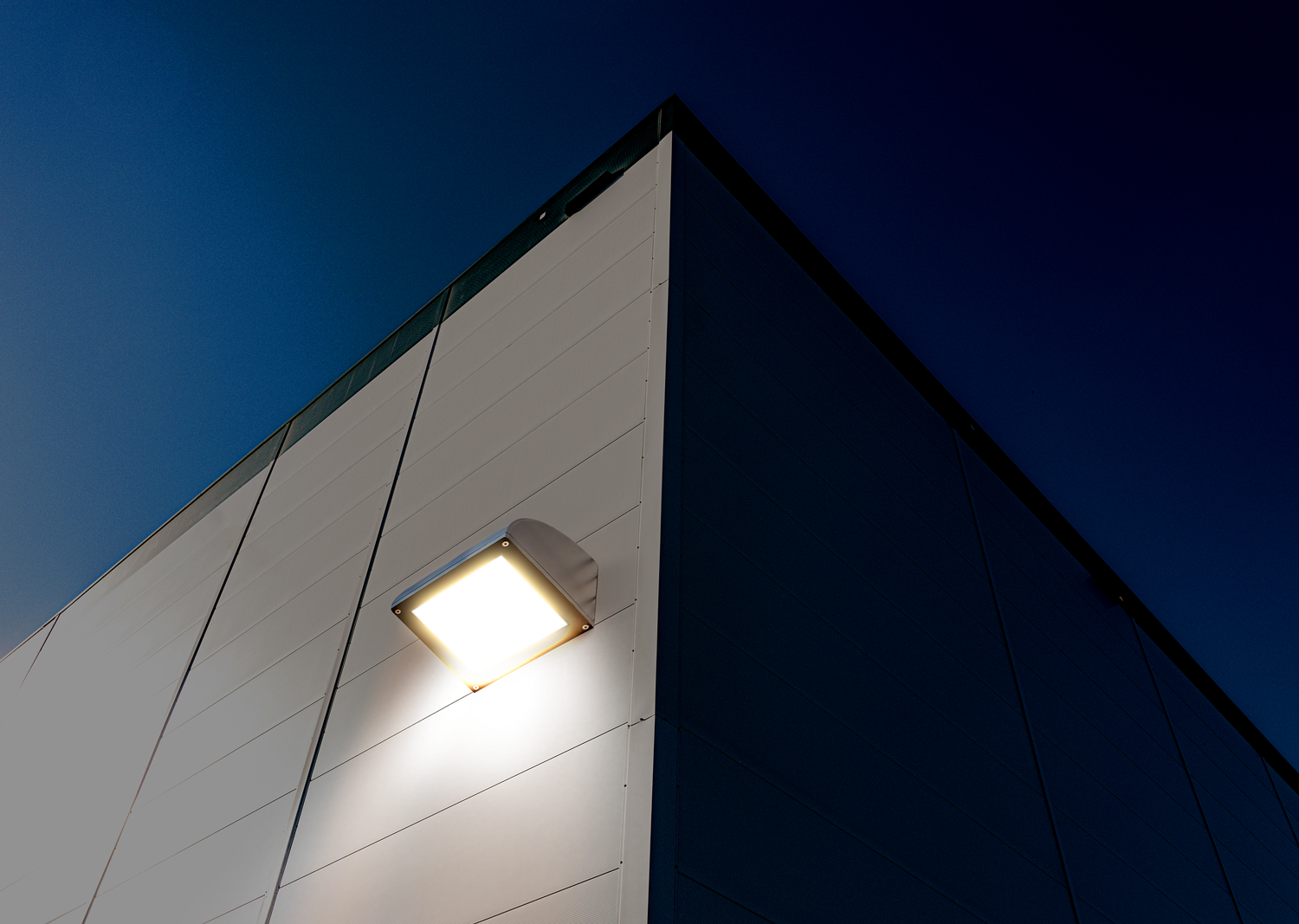

Quarto are a collection of modern, stylish bulkheads suited to building and perimeter lighting. The die-cast aluminium body and the IK10 rating make it a hardy luminaire, perfect for outdoor installations where impact risk is present. The polycarbonate lenses are available in different optics, and dimmable, emergency and photocell options can be specified in required. The Quarto luminaires are easily wall mounted with the use of the first fix bracket, and the 100k hour lifespan ensures they will last for years to come. In addition, the downward distribution meets dark sky requirements.

View Product Family

Code	Driver Type	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code QUAFL08D	Driver Type Digital Dimmable	Lumen Output (lm) 857	Max Wattage (W) 7.5	Efficacy (Lm/W) 114	Add to Spec Remove from Spec Processing
Code QUAFL08DEM	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 857	Max Wattage (W) 7.5	Efficacy (Lm/W) 114	Add to Spec Remove from Spec Processing
Code QUAFL08DPEC	Driver Type Digital Dimmable + Sensor	Lumen Output (lm) 857	Max Wattage (W) 7.5	Efficacy (Lm/W) 114	Add to Spec Remove from Spec Processing
Code QUAFL08DEMPEC	Driver Type Digital Dimmable + Wireless + Dali Em + Pir	Lumen Output (lm) 857	Max Wattage (W) 7.5	Efficacy (Lm/W) 114	Add to Spec Remove from Spec Processing
Code QUAFL15D	Driver Type Digital Dimmable	Lumen Output (lm) 1542	Max Wattage (W) 14.2	Efficacy (Lm/W) 109	Add to Spec Remove from Spec Processing
Code QUAFL15DEM	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 1542	Max Wattage (W) 14.2	Efficacy (Lm/W) 109	Add to Spec Remove from Spec Processing
Code QUAFL15DPEC	Driver Type Digital Dimmable + Sensor	Lumen Output (lm) 1542	Max Wattage (W) 14.2	Efficacy (Lm/W) 109	Add to Spec Remove from Spec Processing
Code QUAFL15DEMPEC	Driver Type Digital Dimmable + Wireless + Dali Em + Pir	Lumen Output (lm) 1542	Max Wattage (W) 14.2	Efficacy (Lm/W) 109	Add to Spec Remove from Spec Processing

Code	Driver Type	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code QUAST08D	Driver Type Digital Dimmable	Lumen Output (lm) 806	Max Wattage (W) 7.5	Efficacy (Lm/W) 107	Add to Spec Remove from Spec Processing
Code QUAST08DEM	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 806	Max Wattage (W) 7.5	Efficacy (Lm/W) 107	Add to Spec Remove from Spec Processing
Code QUAST08DPEC	Driver Type Digital Dimmable + Sensor	Lumen Output (lm) 806	Max Wattage (W) 7.5	Efficacy (Lm/W) 107	Add to Spec Remove from Spec Processing
Code QUAST08DEMPEC	Driver Type Digital Dimmable + Wireless + Dali Em + Pir	Lumen Output (lm) 806	Max Wattage (W) 7.5	Efficacy (Lm/W) 107	Add to Spec Remove from Spec Processing
Code QUAST15D	Driver Type Digital Dimmable	Lumen Output (lm) 1453	Max Wattage (W) 14.2	Efficacy (Lm/W) 102	Add to Spec Remove from Spec Processing
Code QUAST15DEM	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 1453	Max Wattage (W) 14.2	Efficacy (Lm/W) 102	Add to Spec Remove from Spec Processing
Code QUAST15DPEC	Driver Type Digital Dimmable + Sensor	Lumen Output (lm) 1453	Max Wattage (W) 14.2	Efficacy (Lm/W) 102	Add to Spec Remove from Spec Processing
Code QUAST15DEMPEC	Driver Type Digital Dimmable + Wireless + Dali Em + Pir	Lumen Output (lm) 1453	Max Wattage (W) 14.2	Efficacy (Lm/W) 102	Add to Spec Remove from Spec Processing

Code	Driver Type	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code QUAOC08D	Driver Type Digital Dimmable	Lumen Output (lm) 825	Max Wattage (W) 7.5	Efficacy (Lm/W) 110	Add to Spec Remove from Spec Processing
Code QUAOC08DEM	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 825	Max Wattage (W) 7.5	Efficacy (Lm/W) 110	Add to Spec Remove from Spec Processing
Code QUAOC08DPEC	Driver Type Digital Dimmable + Sensor	Lumen Output (lm) 825	Max Wattage (W) 7.5	Efficacy (Lm/W) 110	Add to Spec Remove from Spec Processing
Code QUAOC08DEMPEC	Driver Type Digital Dimmable + Wireless + Dali Em + Pir	Lumen Output (lm) 825	Max Wattage (W) 7.5	Efficacy (Lm/W) 110	Add to Spec Remove from Spec Processing
Code QUAOC15D	Driver Type Digital Dimmable	Lumen Output (lm) 1485	Max Wattage (W) 14.2	Efficacy (Lm/W) 105	Add to Spec Remove from Spec Processing
Code QUAOC15DEM	Driver Type Digital Dimmable + Sensor	Lumen Output (lm) 1485	Max Wattage (W) 14.2	Efficacy (Lm/W) 105	Add to Spec Remove from Spec Processing
Code QUAOC15DPEC	Driver Type Digital Dimmable + Wireless + Dali Em + Pir	Lumen Output (lm) 1485	Max Wattage (W) 14.2	Efficacy (Lm/W) 105	Add to Spec Remove from Spec Processing
Code QUAOC15DEMPEC	Driver Type Digital Dimmable + Wireless + Dali Em + Pir	Lumen Output (lm) 1485	Max Wattage (W) 14.2	Efficacy (Lm/W) 105	Add to Spec Remove from Spec Processing
