Callisto

The Callisto range offers a wide area lens distribution perfect for open area and sports environments

View Product Family

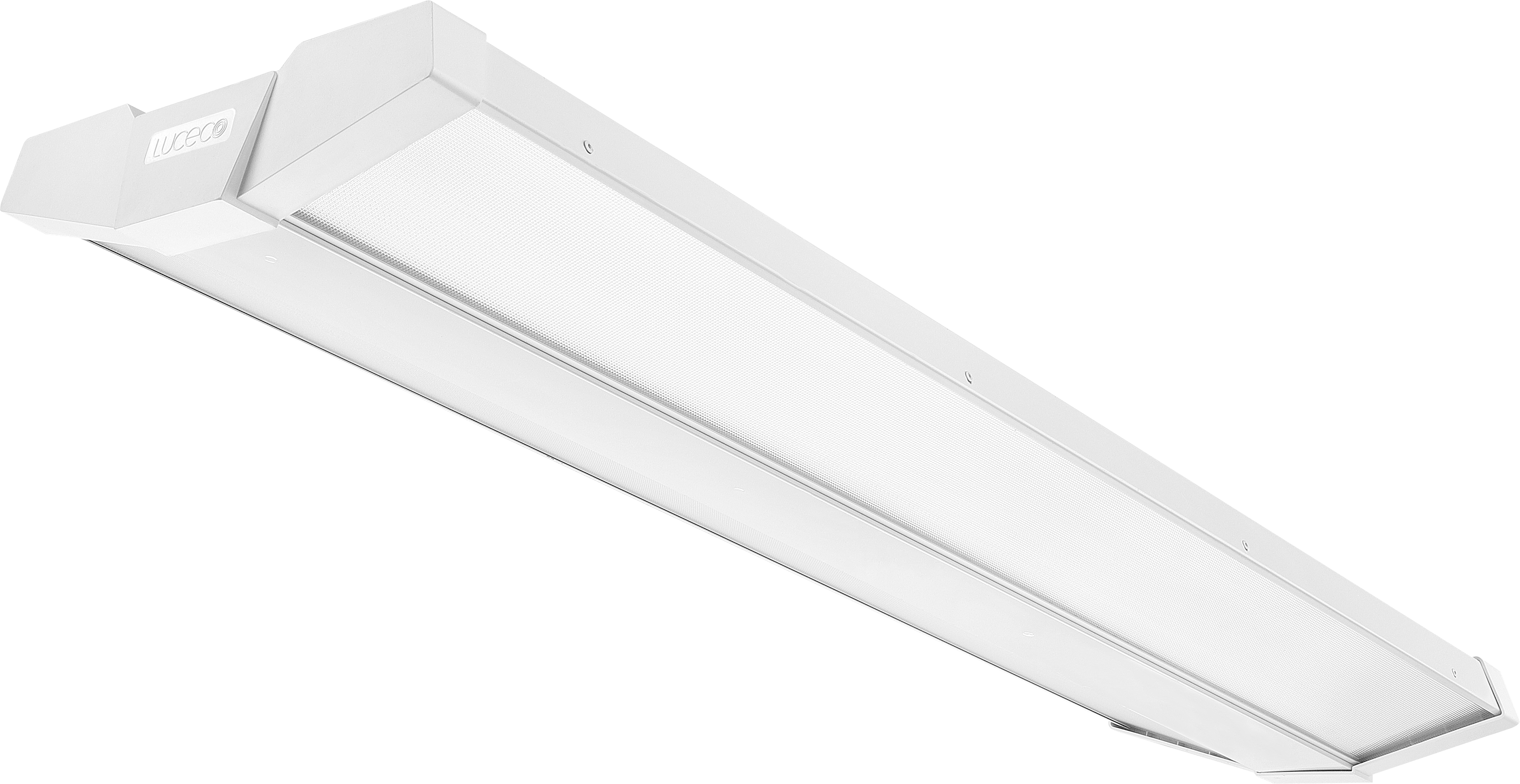

Callisto is a stylish linear LED surface mounted luminaire suitable for light industrial applications as well as recreational and sporting facilities. Its IK10 rating make it robust while its efficacy of 135 Llm/cW and 100,000 hours lifespan ensure it is efficient and effective. The neutral 4000K colour temperature ensure Callisto’s suitability for a range of settings.

White painted steel body finished in RAL9016 with microprism diffuser. Impact resistant IK10 construction

Wide area lens distribution for open area and sports environments 15500-31000 lumens with 135Llm/cW provides optimal replacment for 150-400W discarge lights

Suitable for trunking surface or suspension mounting

Additional Product Options

We offer additional product options to give ultimate control and flexibility to match any application

Self-Test Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations. Insert EST, eg. LLCW22WEST40

DALI Addressable Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations. Insert DED, eg. LLCW22WDED40

Code	Driver Type	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Beam Angle (degrees)	Add to Spec
Code LLCW16WS40	Driver Type Fixed Output	Lumen Output (lm) 15500	Max Wattage (W) 119	Efficacy (Lm/W) 130	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW16WD40	Driver Type Digital Dimmable	Lumen Output (lm) 15500	Max Wattage (W) 119	Efficacy (Lm/W) 130	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW16WE40	Driver Type Fixed Output + Emergency	Lumen Output (lm) 15500	Max Wattage (W) 119	Efficacy (Lm/W) 130	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW16WED40	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 15500	Max Wattage (W) 119	Efficacy (Lm/W) 130	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW22WS40	Driver Type Fixed Output	Lumen Output (lm) 21500	Max Wattage (W) 162	Efficacy (Lm/W) 133	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW22WD40	Driver Type Digital Dimmable	Lumen Output (lm) 21500	Max Wattage (W) 162	Efficacy (Lm/W) 133	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW22WE40	Driver Type Fixed Output + Emergency	Lumen Output (lm) 21500	Max Wattage (W) 162	Efficacy (Lm/W) 133	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW22WED40	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 21500	Max Wattage (W) 162	Efficacy (Lm/W) 133	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW31WS40	Driver Type Fixed Output	Lumen Output (lm) 31000	Max Wattage (W) 260	Efficacy (Lm/W) 119	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW31WD40	Driver Type Digital Dimmable	Lumen Output (lm) 31000	Max Wattage (W) 260	Efficacy (Lm/W) 119	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW31WE40	Driver Type Fixed Output + Emergency	Lumen Output (lm) 31000	Max Wattage (W) 260	Efficacy (Lm/W) 119	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
Code LLCW31WED40	Driver Type Digital Dimmable + Emergency	Lumen Output (lm) 31000	Max Wattage (W) 260	Efficacy (Lm/W) 119	Beam Angle (degrees) WIDE	Add to Spec Remove from Spec Processing
