Ceres
The Luceco Ceres is a durable industrial luminaires with diecast aluminium housing, high thermal performance, various optic types and lumen options available, and boasting a lifespan of 100k hours

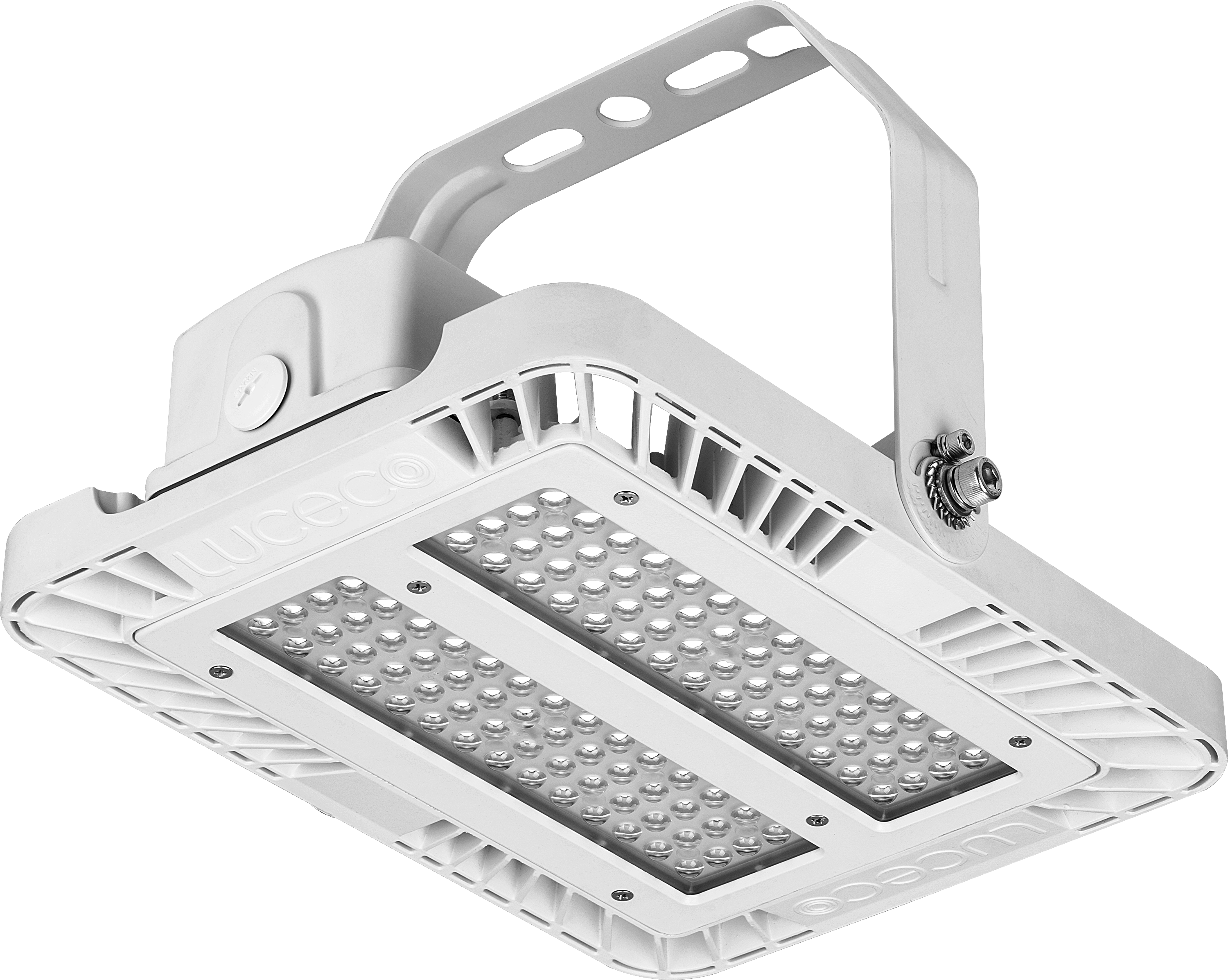

Ceres is a comprehensive range of industrial luminaires manufactured with a diecast aluminium housing which offers increased thermal performance. Lumen options range from 11000 to 35,500 in two, three or five rows of housing. With an IK10 rating and a lifespan of 100,000 hours, Ceres is built to last.
Diecast aluminium housing for increased thermal performance Polycarbonate lens
11000 to 35,500 Lumens lumens from two, three or five row housing
60, 90, 120 and Racking optic available
Supplied with stirrup bracket and hook for surface or suspension mounting
| Code | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Beam Angle (degrees) | Add to Spec |
|---|---|---|---|---|---|---|
|
Code
LHBC11S60
|
Driver Type
Fixed Output
|
Lumen Output (lm)
11000
|
Max Wattage (W)
75
|
Efficacy (Lm/W)
147
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC11E60
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
11000
|
Max Wattage (W)
75
|
Efficacy (Lm/W)
147
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC11D60
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
11000
|
Max Wattage (W)
75
|
Efficacy (Lm/W)
147
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC11ED60
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
11000
|
Max Wattage (W)
75
|
Efficacy (Lm/W)
147
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC16S60
|
Driver Type
Fixed Output
|
Lumen Output (lm)
16000
|
Max Wattage (W)
110
|
Efficacy (Lm/W)
145
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC16E60
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
16000
|
Max Wattage (W)
110
|
Efficacy (Lm/W)
145
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC16D60
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
16000
|
Max Wattage (W)
110
|
Efficacy (Lm/W)
145
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC16ED60
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
16000
|
Max Wattage (W)
110
|
Efficacy (Lm/W)
145
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC22S60
|
Driver Type
Fixed Output
|
Lumen Output (lm)
22000
|
Max Wattage (W)
160
|
Efficacy (Lm/W)
138
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC22E60
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
22000
|
Max Wattage (W)
160
|
Efficacy (Lm/W)
138
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC22D60
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
22000
|
Max Wattage (W)
160
|
Efficacy (Lm/W)
138
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC22ED60
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
22000
|
Max Wattage (W)
160
|
Efficacy (Lm/W)
138
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC28S60
|
Driver Type
Fixed Output
|
Lumen Output (lm)
28000
|
Max Wattage (W)
200
|
Efficacy (Lm/W)
140
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC28E60
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
28000
|
Max Wattage (W)
200
|
Efficacy (Lm/W)
140
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC28D60
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
28000
|
Max Wattage (W)
200
|
Efficacy (Lm/W)
140
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC28ED60
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
28000
|
Max Wattage (W)
200
|
Efficacy (Lm/W)
140
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC36S60
|
Driver Type
Fixed Output
|
Lumen Output (lm)
35500
|
Max Wattage (W)
260
|
Efficacy (Lm/W)
137
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC36D60
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
35500
|
Max Wattage (W)
260
|
Efficacy (Lm/W)
137
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC36E60
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
35500
|
Max Wattage (W)
260
|
Efficacy (Lm/W)
137
|
Beam Angle (degrees)
60
|
|
|
Code
LHBC36ED60
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
35500
|
Max Wattage (W)
260
|
Efficacy (Lm/W)
137
|
Beam Angle (degrees)
60
|
