Power Change, 4ft, 5ft & 6ft body each switchable between High/Low output
4ft & 5ft version with switchable Colour Temperature available
Plug and play emergency pack and MicroWave sensor
Speedfit diffuser

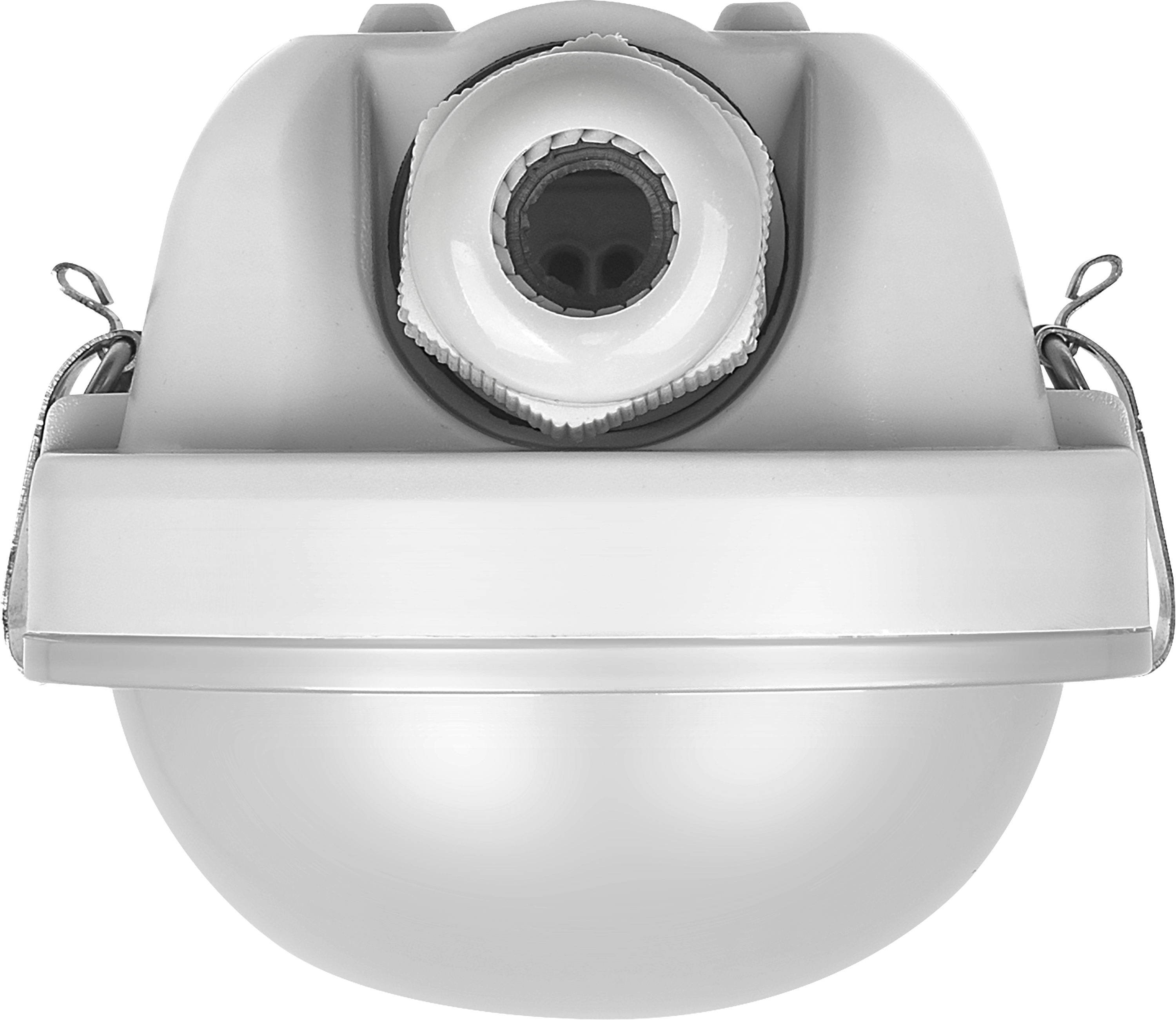

20mm conduit entry at each end
Technical Data
| Code | ECL12OL40 |
| Driver Type | Fixed Output |
| Lumen Output (lm) | 2400/4800 |
| Max Wattage (W) | 20/40 |
| Efficacy (Lm/W) | 120/120 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >80 |
| Standard Deviations of Colour Matching | <6 |
| Base Colour | Grey |
| Onsite Warranty | No |
Dimensions and Installation
| Unpacked Depth (mm) | 79 |
| Unpacked Width (mm) | 1200 |
| Unpacked Height (mm) | 68 |
| Unpacked Net Weight (kg) | 1.32 |
| IP Rating | IP65 |
| IK Rating | IK06 |
| Cutout (mm) | 0 |
Performance & Safety
| Lifetime (h) | 50000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 50000 |
| Operating Temperature (C) | -20°C to +25°C |
| E-Class | Class1 |
| Power Factor | >0.9 |
