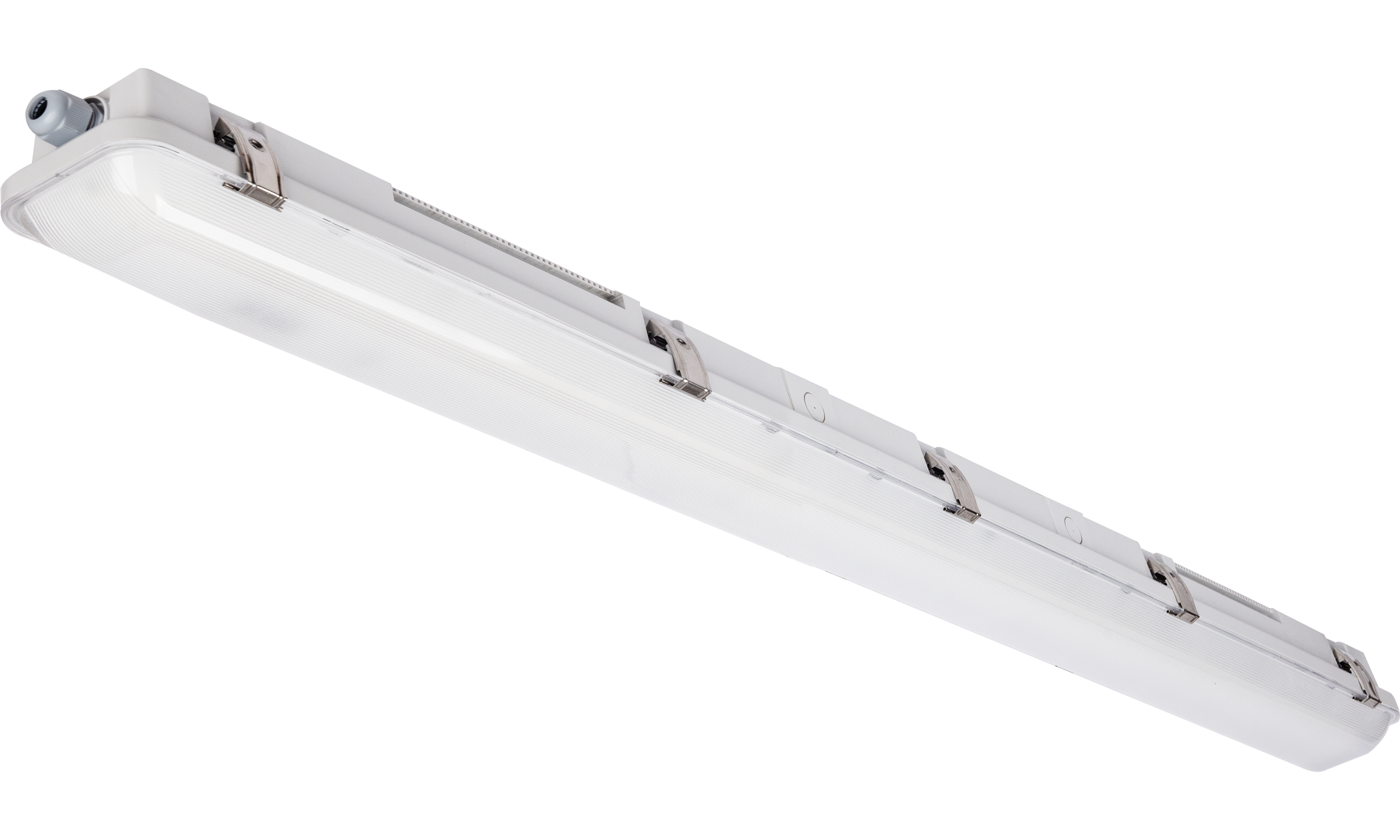

Climate Extra
IP65 linear luminaire. Polycarbonate housing, opal diffuser, anti-temper stainless-steel clips, and speedfit installation make the Luceco Climate Extra ideal for industrial and harsh environments
Delivering the benefits of polycarbonate construction, opal diffuser and speedfit installation type, Climate Extra is a Linear IP65 weatherproof range available in 1200mm and 1500mm variants. Incorporating anti-tamper stainless steel clips, Climate Extra can be surface mounted or suspension mounted through the metal fixing points.
Polycarbonate construction with opal diffuser and anti-tamper stainless steel clips
Speedfit style of install meaning no need to remove the LED geartray
Surface mounting via metal fixing points with BESA option
1200mm and 1500mm lengths available, including a variety of driver options including, Digital Dimmable, Emergency and Microwave
Additional Product Options
We offer additional product options to give ultimate control and flexibility to match any application
Self-Test Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations. Insert EST, eg. LCL15O34EST40
Â
Â
Â
DALI Addressable Emergency
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations. Insert EST, eg. LCL15O34DED40
Â
Â
Â
Emergency Dimmable, Microwave & 10% Corridor Function
Corridor function is a luminaire setting that when 100% output is not required shall switch to emit only 10%, allowing a 'stand by' mode apperance whilst saving on unwanted energy usage. Many public applications use this setting to ensure light is always provided in some capacity. Insert ED & MW, eg. LCL15O34ED40MW
Â
Â
Emergency Dimmable, Microwave & 10% Corridor Function
Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Corridor function is a luminaire setting that when 100% output is not required shall switch to emit only 10%, allowing a 'stand by' mode apperance whilst saving on unwanted energy usage. Many public applications use this setting to ensure light is always provided in some capacity. Insert ED & MW, eg. LCL15O34ED40MW
Â
Â
| Code | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Beam Angle (degrees) | Add to Spec |
|---|---|---|---|---|---|---|
|
Code
LCL12O23S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2300
|
Max Wattage (W)
16
|
Efficacy (Lm/W)
144
|
Beam Angle (degrees)
120
|
|
|
Code
LCL12O23E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
2300
|
Max Wattage (W)
16
|
Efficacy (Lm/W)
144
|
Beam Angle (degrees)
120
|
|
|
Code
LCL12O23D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2300
|
Max Wattage (W)
16
|
Efficacy (Lm/W)
144
|
Beam Angle (degrees)
120
|
|
|
Code
LCL12O23ED40
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
2300
|
Max Wattage (W)
16
|
Efficacy (Lm/W)
144
|
Beam Angle (degrees)
120
|
|
|
Code
LCL12O45S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
4500
|
Max Wattage (W)
31
|
Efficacy (Lm/W)
145
|
Beam Angle (degrees)
120
|
|
|
Code
LCL12O45E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
4500
|
Max Wattage (W)
31
|
Efficacy (Lm/W)
145
|
Beam Angle (degrees)
120
|
|
|
Code
LCL12O45D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
4500
|
Max Wattage (W)
31
|
Efficacy (Lm/W)
145
|
Beam Angle (degrees)
120
|
|
|
Code
LCL12O45ED40
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
4500
|
Max Wattage (W)
31
|
Efficacy (Lm/W)
145
|
Beam Angle (degrees)
120
|
