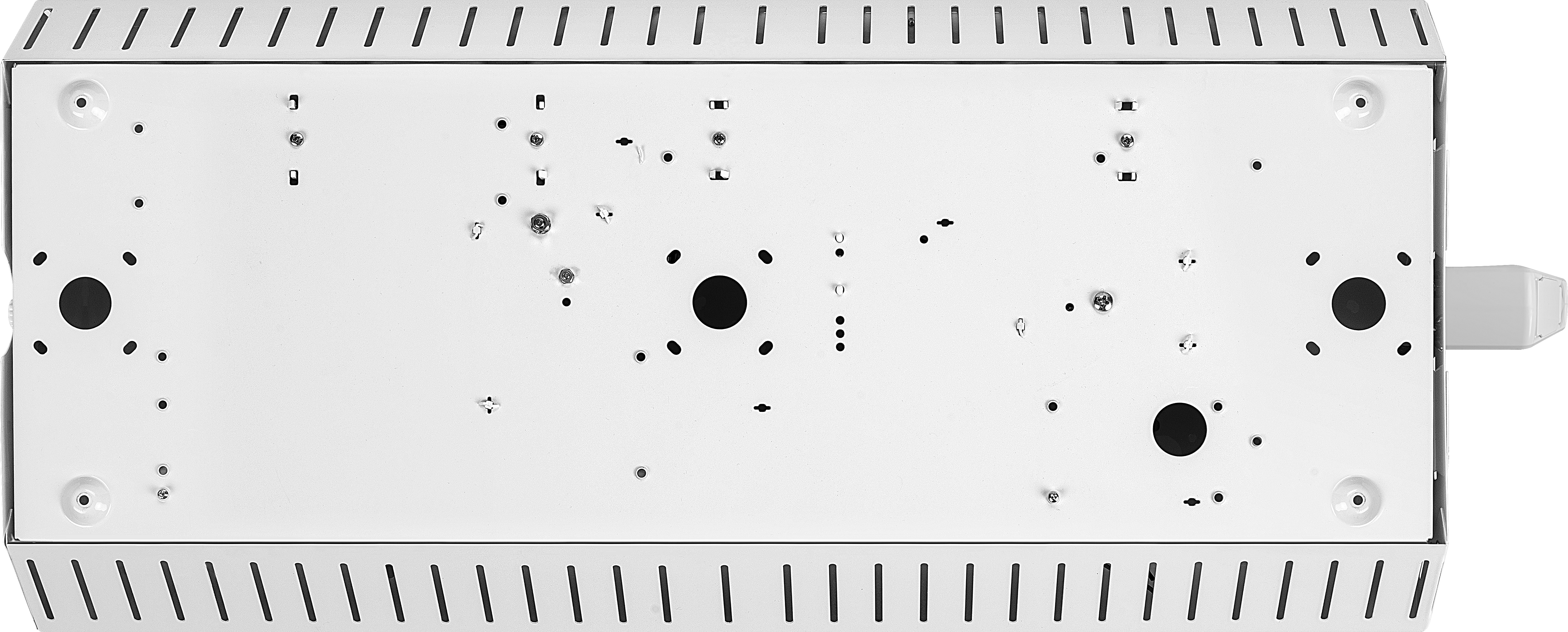

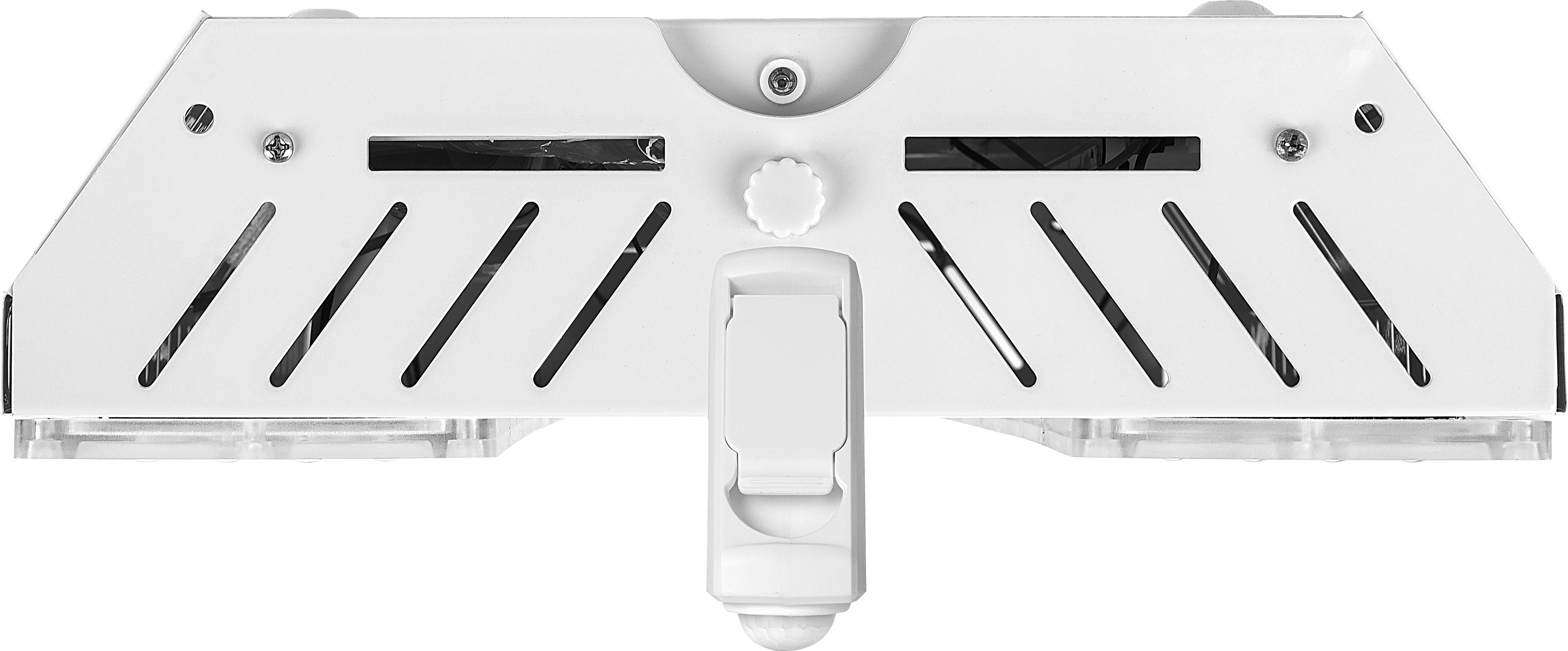

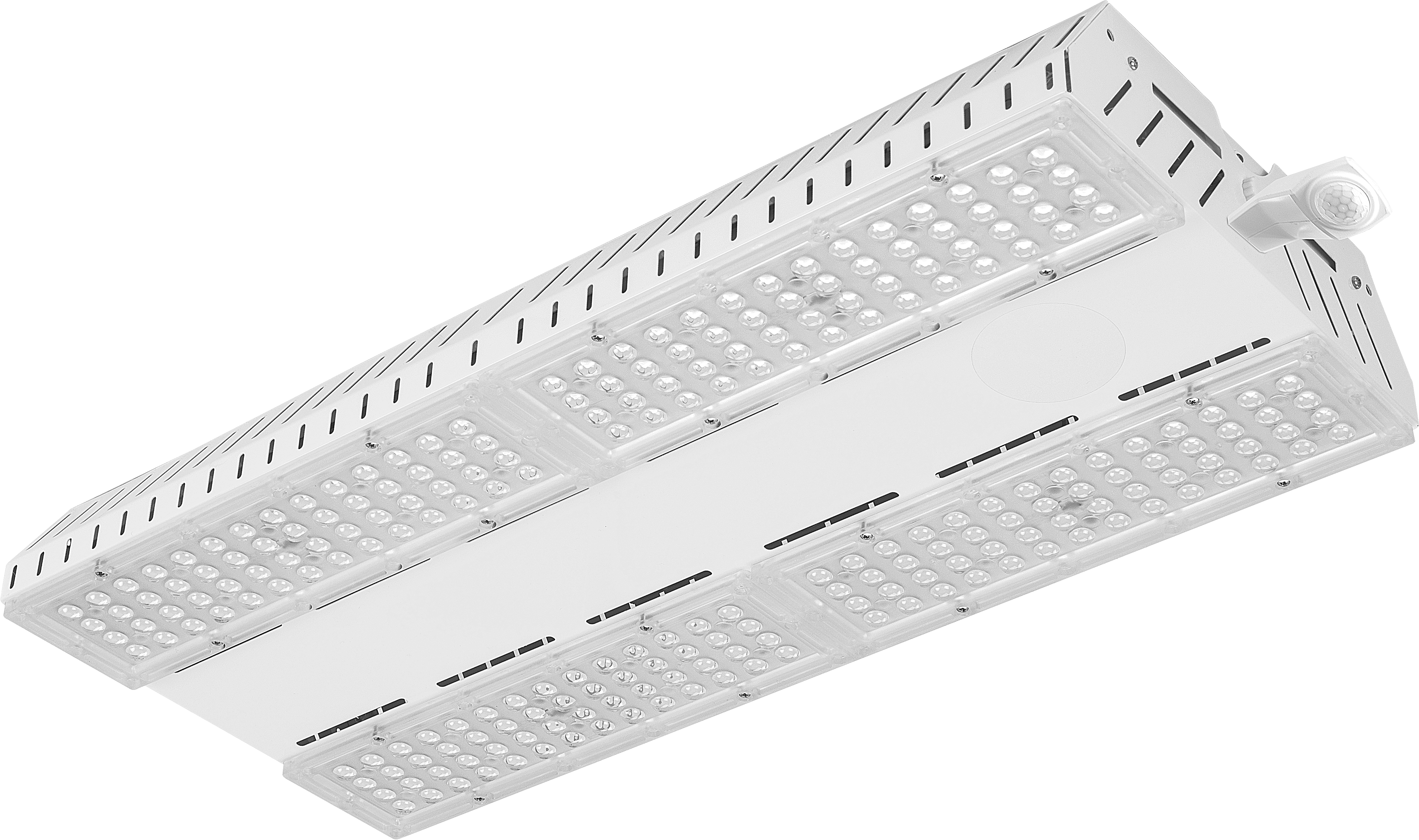

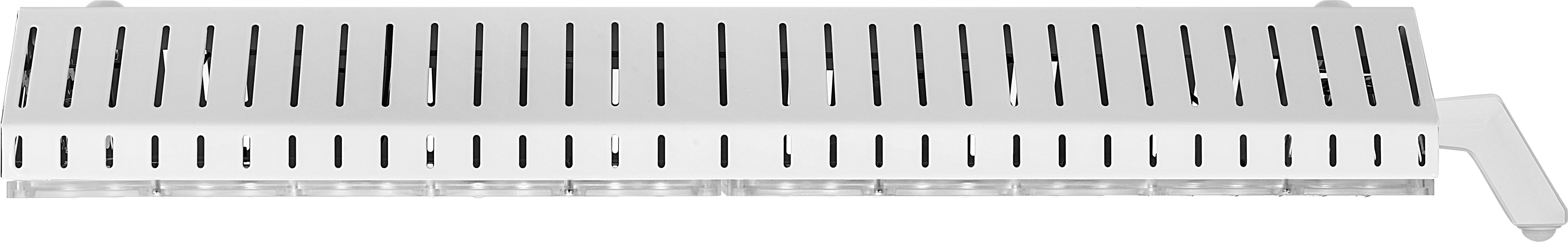

LED lowbay with fastfix geartray
Super Efficient LEDs achieving 125Llm/W
Open area optic
Fixed output control gear with 3hr maintained emergency
Very high lumen output
Technical Data
| Code | ELB30WE40PIR |
| Driver Type | Emergency + Sensor |
| Lumen Output (lm) | 30000 |
| Max Wattage (W) | 240 |
| Efficacy (Lm/W) | 125 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >80 |
| Standard Deviations of Colour Matching | <4 |
| Base Colour | White - RAL 9016 (Traffic White) |
| Onsite Warranty | Yes |
Dimensions and Installation
| Unpacked Depth (mm) | 569 |
| Unpacked Width (mm) | 265 |
| Unpacked Height (mm) | 85 |
| Unpacked Net Weight (kg) | 3.6 |
| IP Rating | IP20 |
| IK Rating | IK10 |
| Cutout (mm) | N/A |
Performance & Safety
| Lifetime (h) | 40000 |
| L/B at Life | L70-B50 |
| E-Class | Class1 |
| Power Factor | >0.9 |
| UGR 4H 8H | <23 |
