Luceco Contour Direct/Indirect
ItemLifetime 100000
PackageWarranty 5
ItemIPRating IP20
ItemColourTemp 4000
ItemCRI 80
ItemUGR4H8H 19
ItemComplianceUKCA True

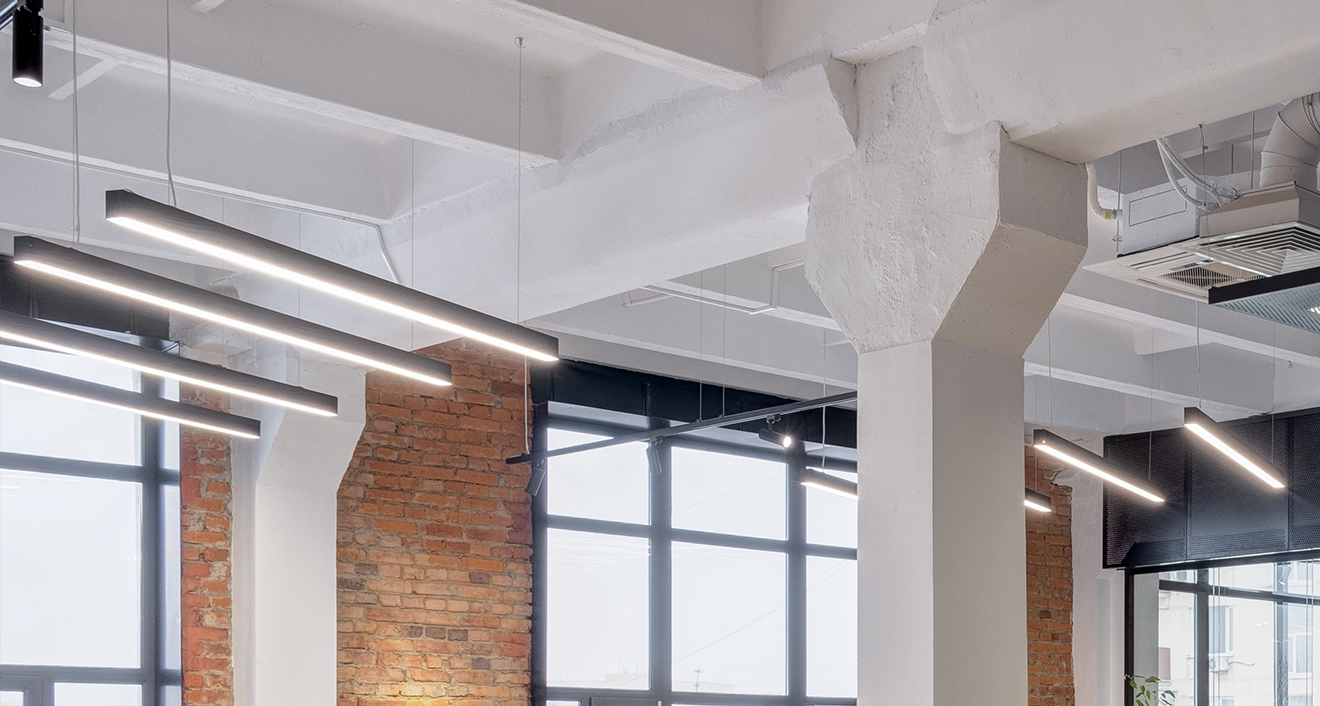

Top and bottom linear arrays provide direct and indirect lighting to work areas and reflect light off walls and ceilings for balances illumination. The Contour Suspended Direct/Indirect solution offers a continuous homogenous lighting system specifically designed to provide low-glare and balanced lighting conditions. Constructed of durable and light-weight aluminium and available in either RAL9016 class white or RAL9005 black finish to match any workspace

Continious direct/indirect lighting system providing balanced lighting conditions

Low-glare polycarbonate diffuser, available in opal or micro prism

Aluminium constructed body available in both RAL9016 white and RAL9005 black finishes

Suspension mounted via 1.5M suspension kit supplied plug and play wiring for continuous connection

Additional Product Options

We offer additional product options to give ultimate control and flexibility to match any application

DALI Digital Dimming

DALI Digital Dimming offers precise control of individual fixtures and groups of lights, which can lead to decreased energy consumption and saved running costs. All options are available as DALI dimmable Insert D, eg. LCOT12WO12D40









3hr Emergency

3-hour Emergency feature guarantee's that in the event of a power outage, the lights will remain illuminated for an extended period of time, enabling a safe exit. This can be critical for safety reasons, allowing people to exit a building safely in the event of an emergency. All modules with exception of 600mm length are available with three hour emergency. Insert E, eg. LCOT12WO12E40









Self-Test Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's self-test emergency pack provides 3 hours worth of back-up power whilst the pack checks itself automatically to ensure that the battery and lamp in each emergency light are fully operational to meet all standards and regulations.





DALI Addressable Emergency

Emergency lighting is required to allow safe evacuation of an area in the event of mains failure. Luceco's DALI addressable emergency pack provides 3 hours worth of back-up power, the pack automatically monitors itself to ensure that the battery and lamp in each emergency light are fully operational along with recording valuable data to meet all standards and regulations.





3000K Colour Temperature

3000K light provides a warmer more comforting effect that can be preferred in many of applications including certain public areas and domestic settings.





Code Base Colour Unpacked Depth (mm) Driver Type Lumen Output (lm) Max Wattage (W) Efficacy (Lm/W) Add to Spec
Code
LCO12UDWO30S40
Base Colour
White - RAL 9016 (Traffic White)
Unpacked Depth (mm)
1134
Driver Type
Fixed Output
Lumen Output (lm)
3000
Max Wattage (W)
28
Efficacy (Lm/W)
107
Add to Spec Remove from Spec Processing
Code
LCO12UDBO30S40
Base Colour
Black - RAL9005 (Jet Black)
Unpacked Depth (mm)
1134
Driver Type
Fixed Output
Lumen Output (lm)
3000
Max Wattage (W)
28
Efficacy (Lm/W)
107
Add to Spec Remove from Spec Processing
Specification
2 Items
View
