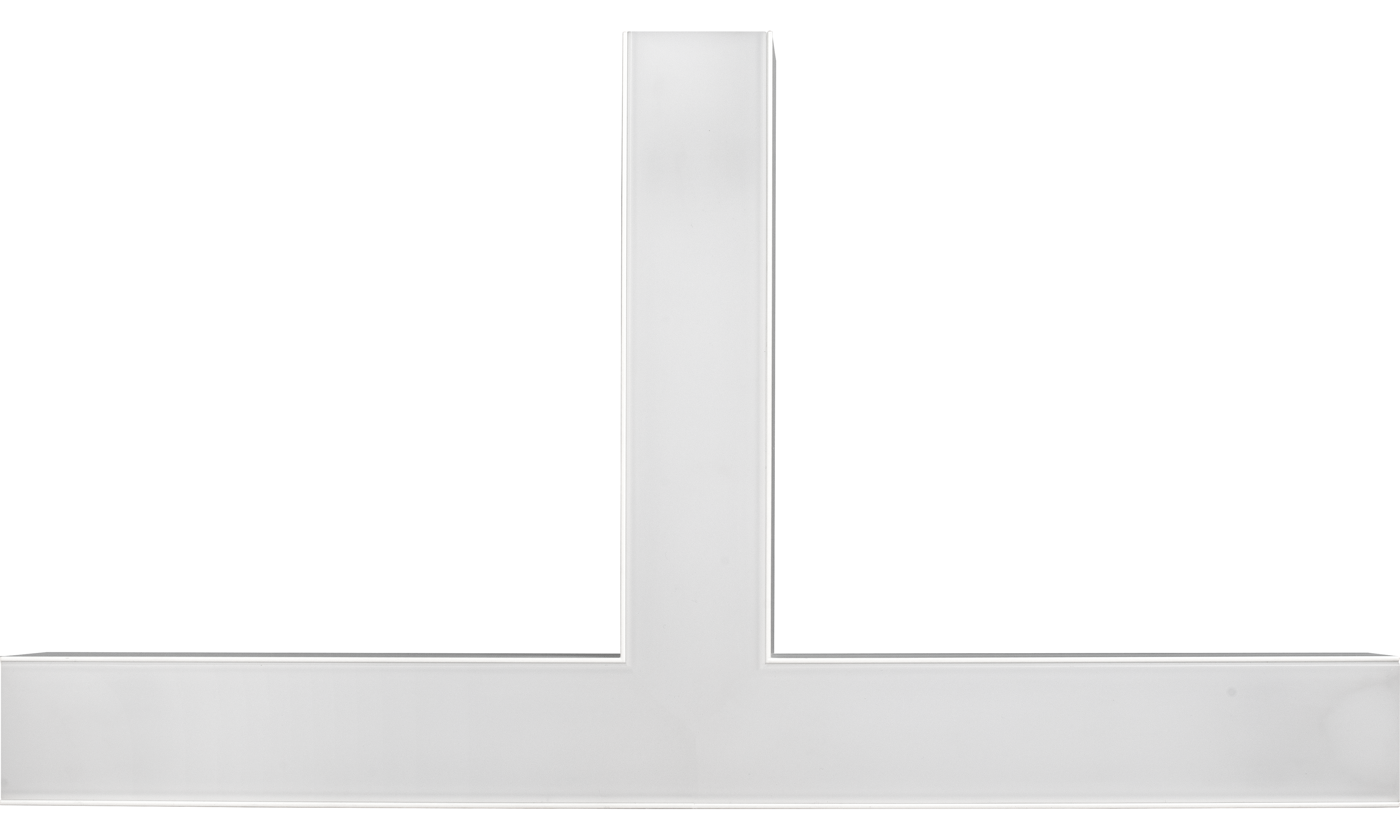

Direct Suspended T connector module
Very Efficient LEDs achieving 106Llm/W
Neutral white 4000k CCT with SDCM <3
Fixed output control gear
LCOFB fixing brackets required for continuous mounting LCOCC wiring connector required one per electrical connection
Technical Data
| Code | LCOTCWO18S40 |
| Driver Type | Fixed Output |
| Lumen Output (lm) | 1800 |
| Max Wattage (W) | 17 |
| Efficacy (Lm/W) | 106 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >80 |
| Base Colour | White - RAL 9016 (Traffic White) |
| Onsite Warranty | Yes |
Dimensions and Installation
| Unpacked Depth (mm) | 568 |
| Unpacked Width (mm) | 314 |
| Unpacked Height (mm) | 94 |
| Unpacked Net Weight (kg) | 2.436 |
| IP Rating | IP40 |
| IK Rating | IK04 |
Performance & Safety
| Lifetime (h) | 100000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 100000 |
| Operating Temperature (C) | -20°C to +25°C |
| E-Class | Class1 |
| Power Factor | >0.9 |
| Battery Duration (h) | N/A |
| Battery Type | None |
