Contour Wall
The Luceco Contour Wall range is a perfect linear lighting solution, perfect for many commercial areas including boardrooms, meeting areas, offices, retail shops, and domestic areas.

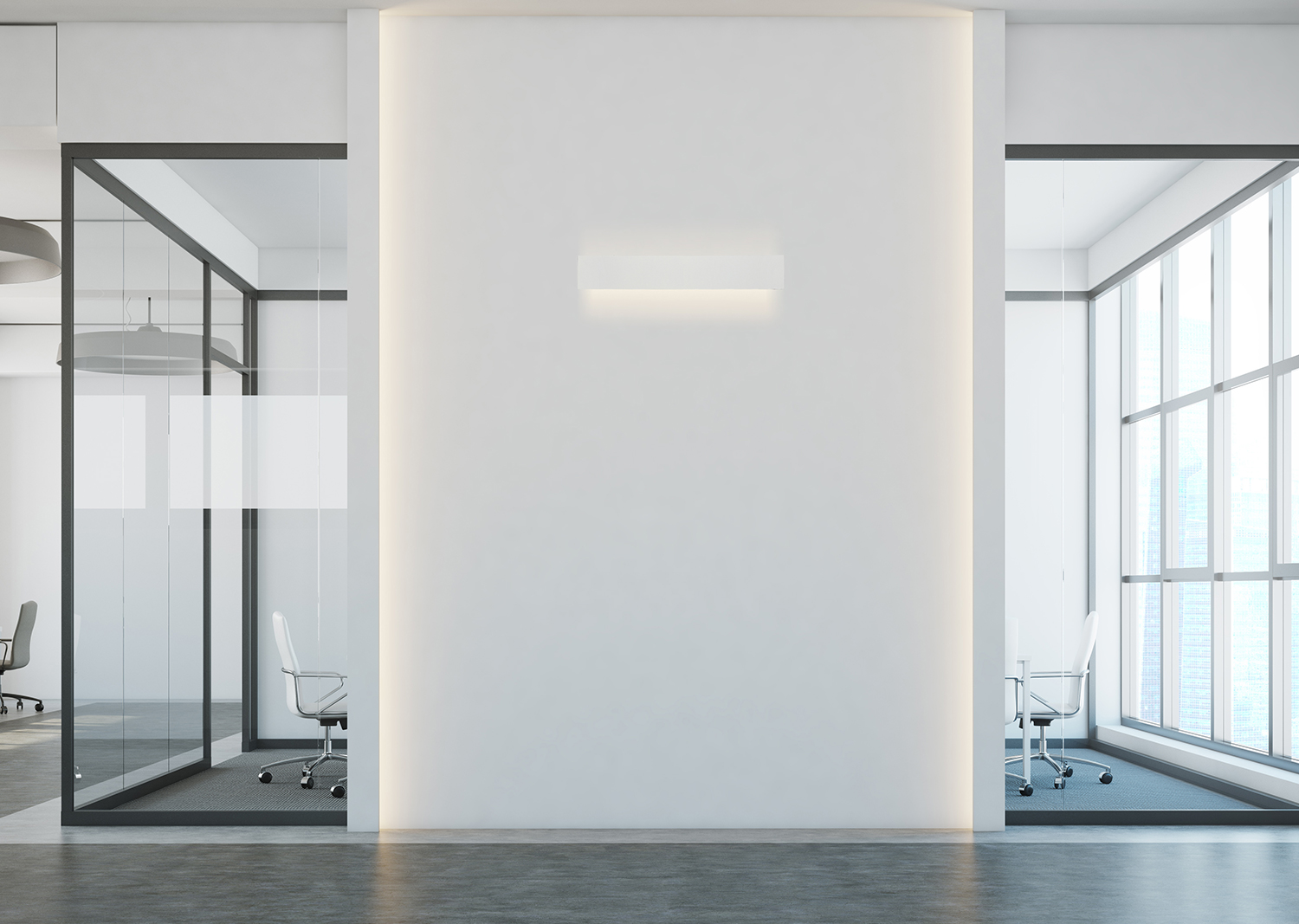

The Luceco Contour Wall series extends the Contour Linear Lighting family's versatility by including a wall-mounted luminaire with an up/down wall washing effect. Opal and Microprism optical options meet commercial requirements.

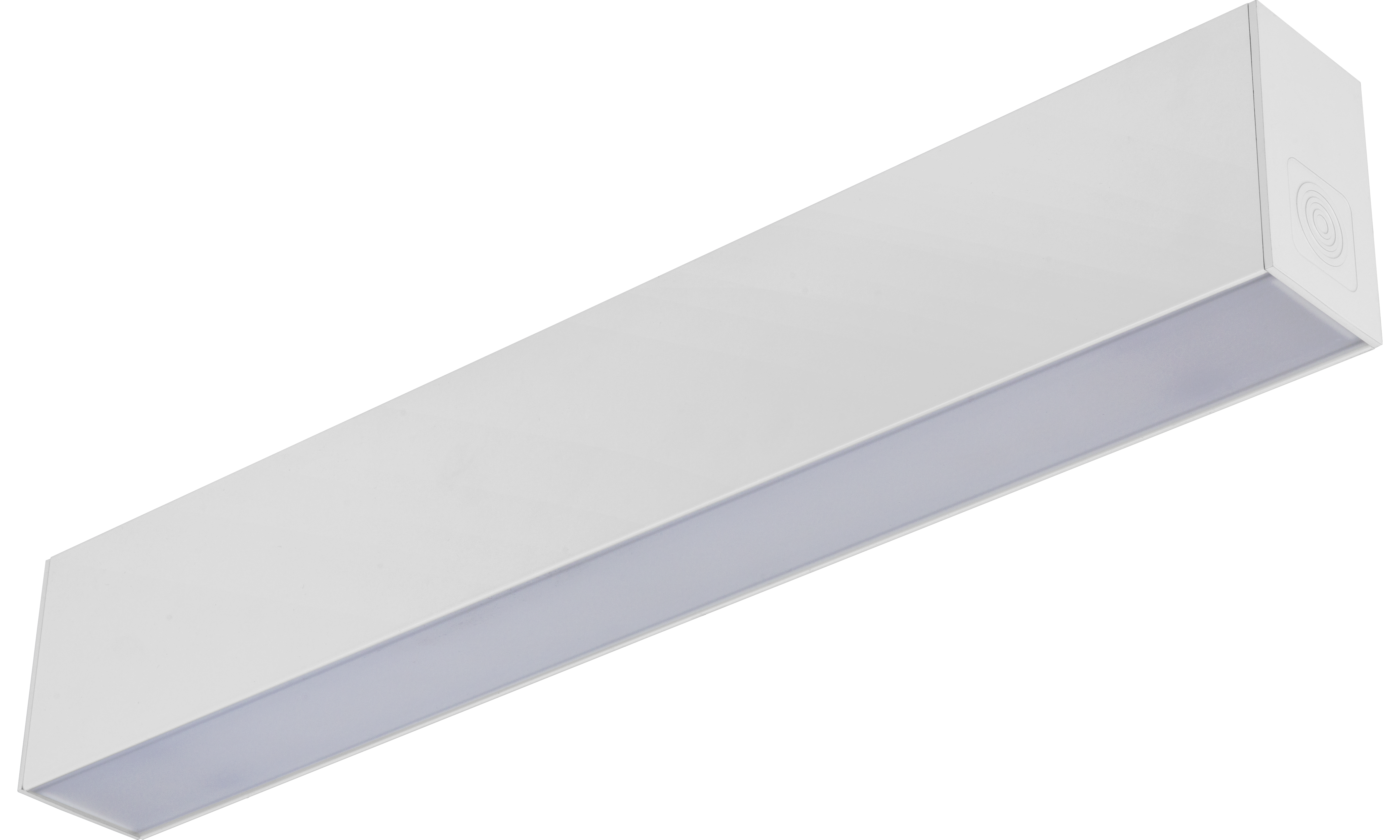

Wall mounted up/down variant of the Luceco Contour range with 70% downlight and 30% upward
Aluminium extruded body with polycarbonate diffuser
Opal and micro-prism diffuser optics available
Efficacy up to 124Llm/cW
| Code | Base Colour | Unpacked Depth (mm) | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Add to Spec |
|---|---|---|---|---|---|---|---|
|
Code
LCOW06WO26S40
|
Base Colour
White - RAL 9016 (Traffic White)
|
Unpacked Depth (mm)
574
|
Driver Type
Fixed Output
|
Lumen Output (lm)
2600
|
Max Wattage (W)
21
|
Efficacy (Lm/W)
124
|
|
|
Code
LCOW06WO26E40
|
Base Colour
White - RAL 9016 (Traffic White)
|
Unpacked Depth (mm)
574
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
2600
|
Max Wattage (W)
21
|
Efficacy (Lm/W)
124
|
|
|
Code
LCOW06WO26D40
|
Base Colour
White - RAL 9016 (Traffic White)
|
Unpacked Depth (mm)
574
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2600
|
Max Wattage (W)
21
|
Efficacy (Lm/W)
124
|
|
|
Code
LCOW06WO26ED40
|
Base Colour
White - RAL 9016 (Traffic White)
|
Unpacked Depth (mm)
574
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
2600
|
Max Wattage (W)
21
|
Efficacy (Lm/W)
124
|
