Litera
The Luceco Litera offers efficient and high-performance linear lighting in both Surface and Suspended installation options.
Designed for versatility, the Litera comes in Surface and Suspended installation models, providing seamless integration into any environment. With its continuous lighting system and extruded aluminium body, the Litera ensures efficiency, low power consumption, and high performance, delivering optimal illumination for various applications.
Slim aluminium extrusion finished in RAL9016, offers superior quality lighting for any commercial or educational environment, including compliance with semi-cylindrical illuminance valuesÂ

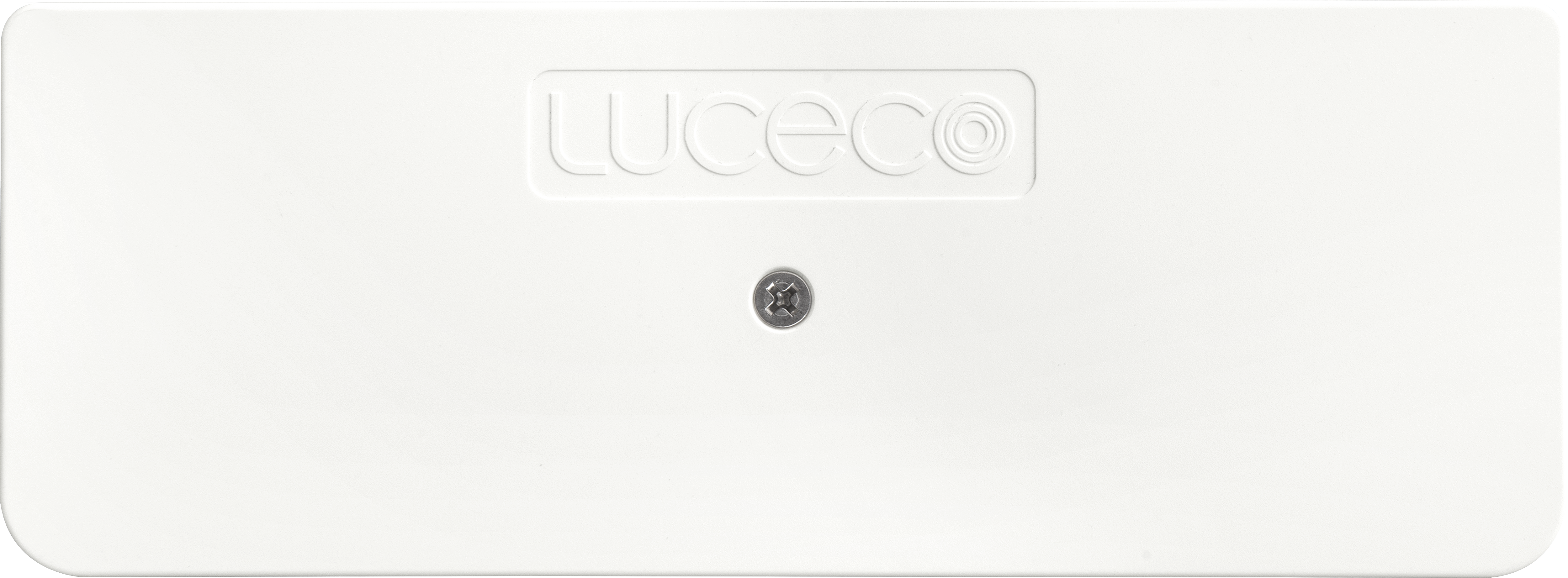

This complete solution offers blank infill sections, with through wiring as standard and options for emergency and wireless lighting controlsÂ
Low power and higher performance with efficacy up to 125Llm/cWÂ
| Code | Driver Type | Lumen Output (lm) | Max Wattage (W) | Efficacy (Lm/W) | Add to Spec |
|---|---|---|---|---|---|
|
Code
LIT12W38S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
3800
|
Max Wattage (W)
29
|
Efficacy (Lm/W)
131
|
|
|
Code
LIT12W38D40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
3800
|
Max Wattage (W)
29
|
Efficacy (Lm/W)
131
|
|
|
Code
LIT12W38ED40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
3800
|
Max Wattage (W)
29
|
Efficacy (Lm/W)
131
|
|
|
Code
LIT12W48D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
4800
|
Max Wattage (W)
37
|
Efficacy (Lm/W)
130
|
|
|
Code
LIT12W48ED40
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
4800
|
Max Wattage (W)
37
|
Efficacy (Lm/W)
130
|
|
|
Code
LIT12W38E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
3800
|
Max Wattage (W)
29
|
Efficacy (Lm/W)
131
|
|
|
Code
LIT12W48S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
4800
|
Max Wattage (W)
37
|
Efficacy (Lm/W)
130
|
|
|
Code
LIT12W48E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
4800
|
Max Wattage (W)
37
|
Efficacy (Lm/W)
130
|
|
|
Code
LIT12W58S40
|
Driver Type
Fixed Output
|
Lumen Output (lm)
5800
|
Max Wattage (W)
44
|
Efficacy (Lm/W)
132
|
|
|
Code
LIT12W58E40
|
Driver Type
Fixed Output + Emergency
|
Lumen Output (lm)
5800
|
Max Wattage (W)
44
|
Efficacy (Lm/W)
132
|
|
|
Code
LIT12W58D40
|
Driver Type
Digital Dimmable
|
Lumen Output (lm)
5800
|
Max Wattage (W)
44
|
Efficacy (Lm/W)
132
|
|
|
Code
LIT12W58ED40
|
Driver Type
Digital Dimmable + Emergency
|
Lumen Output (lm)
5800
|
Max Wattage (W)
44
|
Efficacy (Lm/W)
132
|
