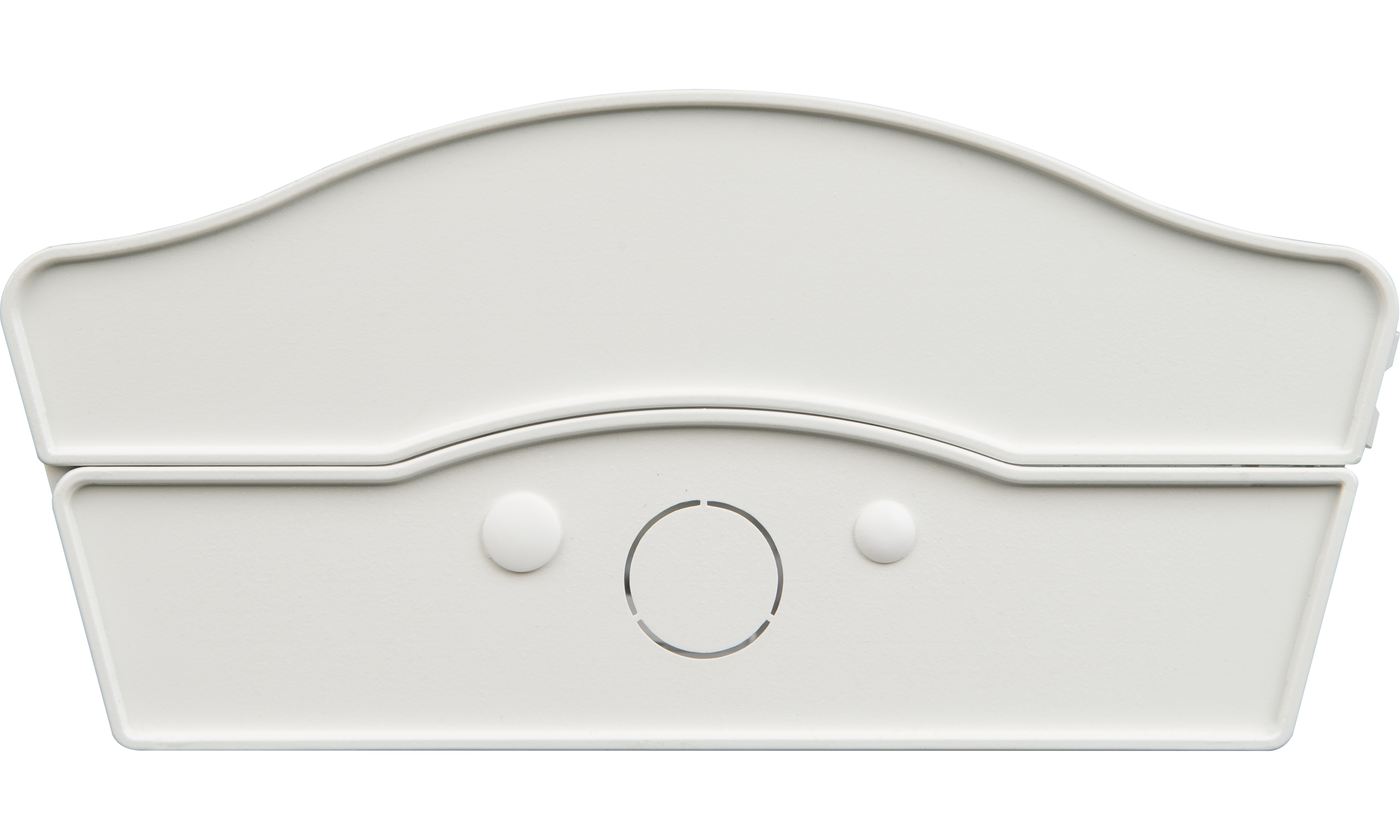

White painted steel body with polycarbonateopal diffuser and hinged secured end caps
Two body sizes 1200mm and 1500mm each with low and high output options available with efficacy up to 130 Llm/cW
Surface or suspension mounted with BESA fixings and central and end cable entry
Technical Data
| Code | LOE12WLE40 |
| Driver Type | Fixed Output + Emergency |
| Lumen Output (lm) | 2800/5200 |
| Max Wattage (W) | 22/40 |
| Efficacy (Lm/W) | 127/130 |
| Colour Temp (CCT) (K) | 4000 |
| CRI | >80 |
| Base Colour | White |
Dimensions and Installation
| Unpacked Depth (mm) | 1205 |
| Unpacked Width (mm) | 180 |
| Unpacked Height (mm) | 85 |
| Unpacked Net Weight (kg) | 2.486 |
| IP Rating | IP20 |
| IK Rating | IK06 |
| Cutout (mm) | n/a |
Performance & Safety
| Lifetime (h) | 50000 |
| Operating Temperature (C) | 0°C to +25°C |
| Power Factor | >0.9 |
