UTF6WD2W-01

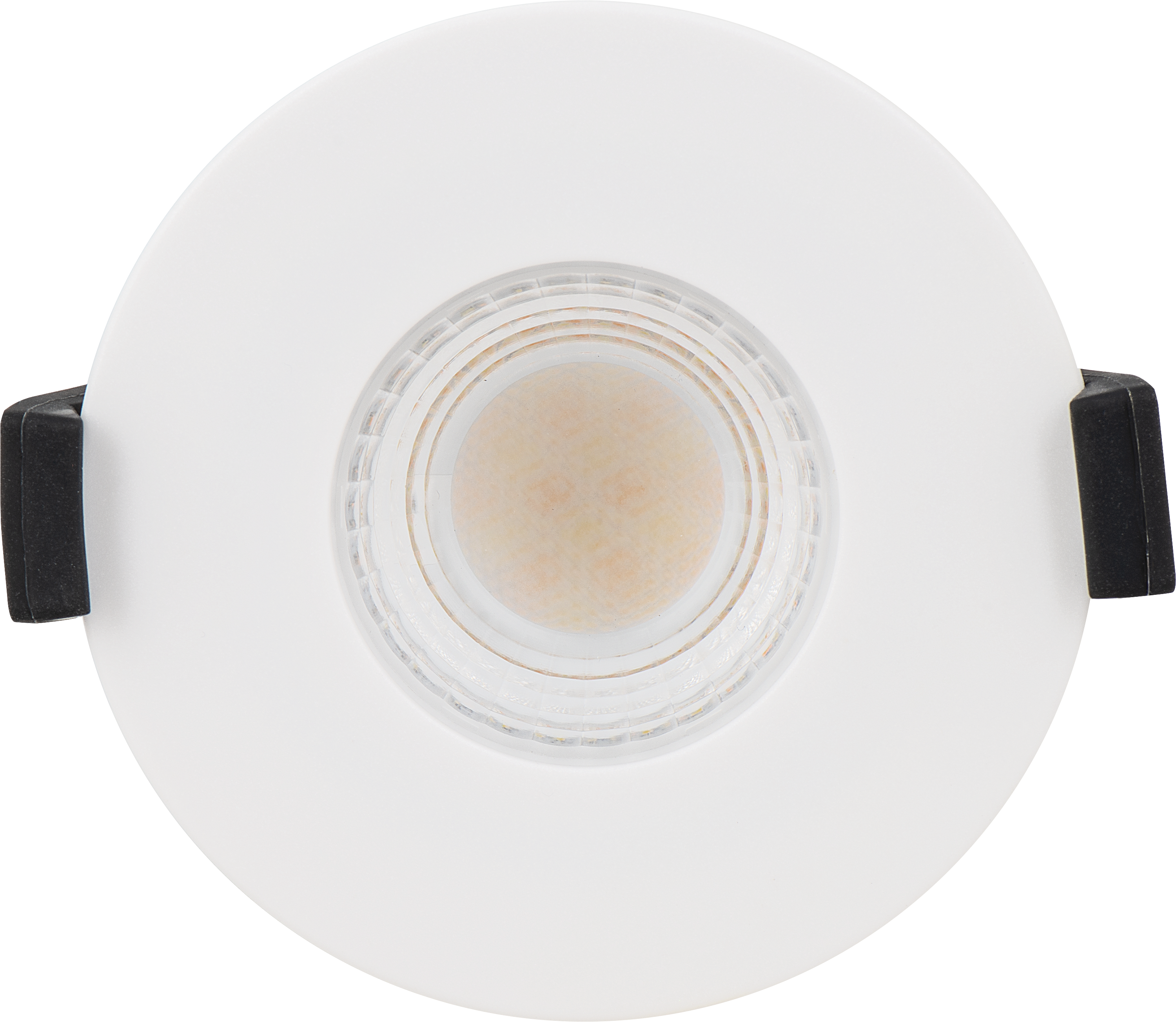

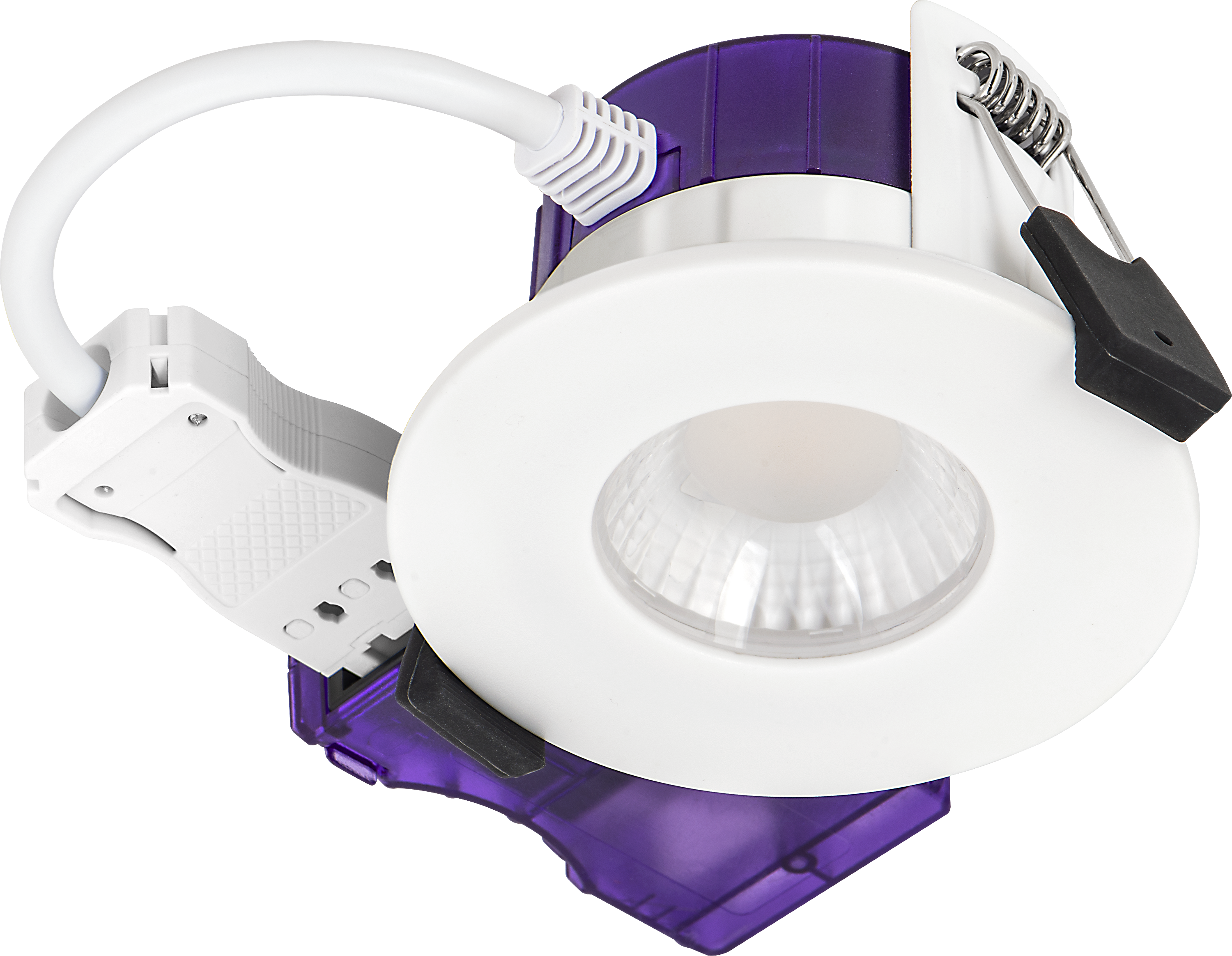

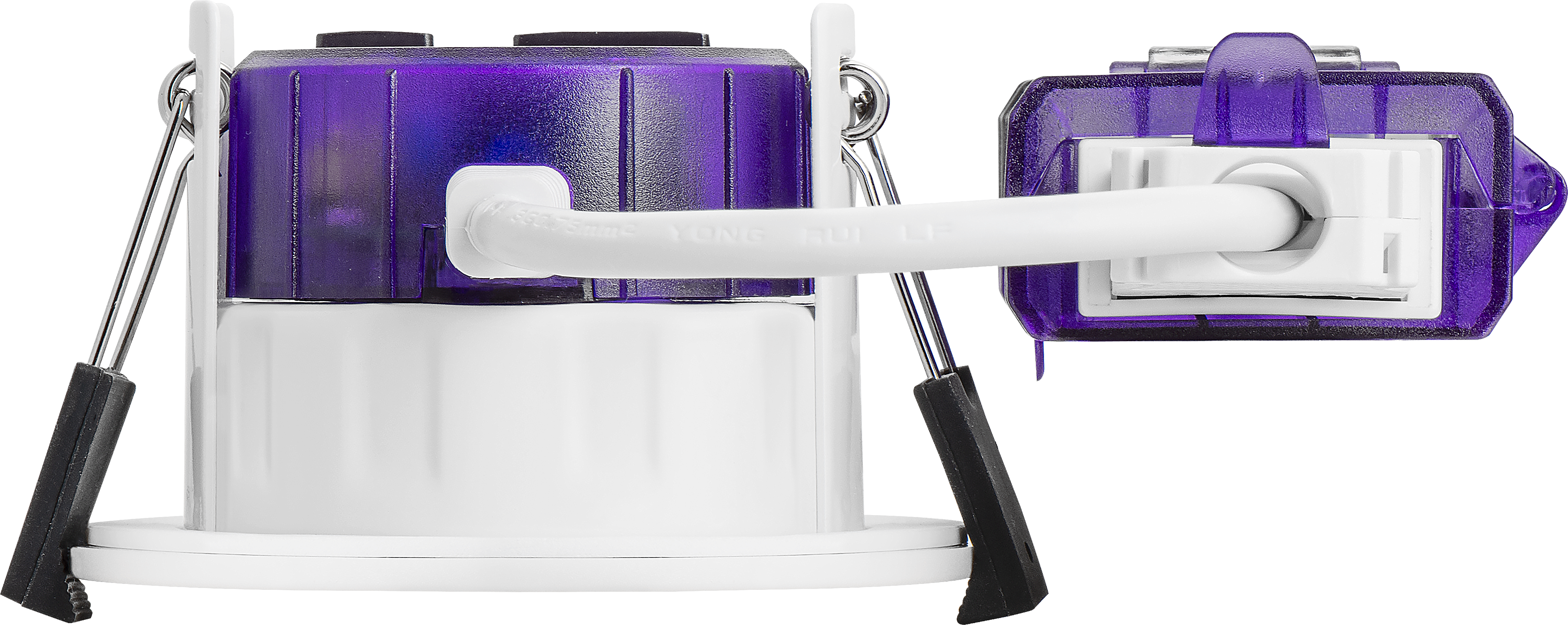

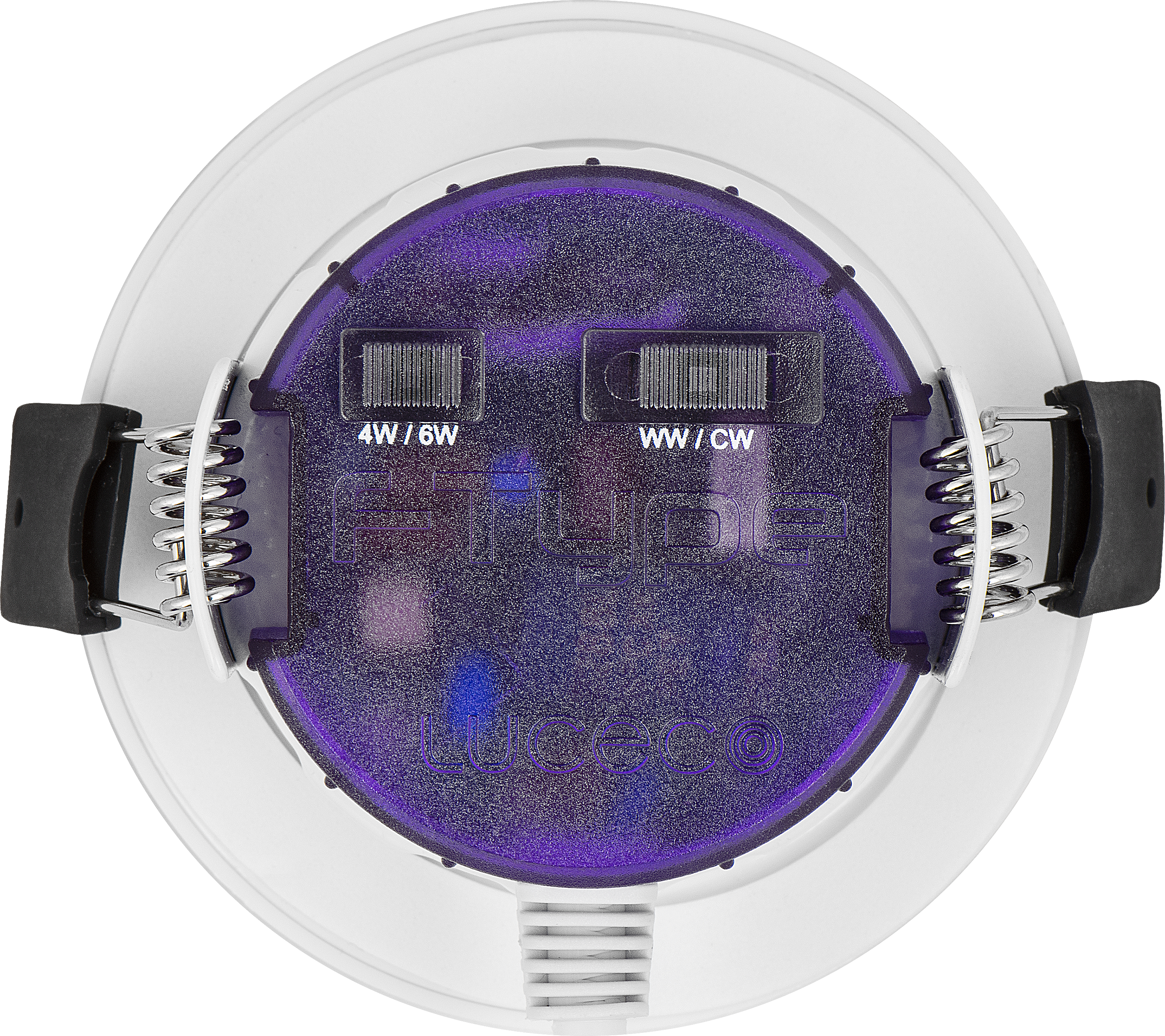

FType Ultra Fire Rated Downlight 4W/6W 690lm Power Change & CCT Change 3000K / 4000K Dim2Warm Dimmable IP65 White - Flat
Technical Data
| Code | UTF6WD2W |
| Driver Type | Dim To Warm |
| Lumen Output (lm) | 460/690 |
| Max Wattage (W) | 4/6 |
| Efficacy (Lm/W) | 115/115 |
| Colour Temp (CCT) (K) | 3000, 4000, Dim2Warm 3000K-2400K |
| Beam Angle (degrees) | 60 |
| CRI | >80 |
| Base Colour | White |
| Bezel Type | Flat |
Dimensions and Installation
| Cutout (mm) | 76 |
| Unpacked Depth (mm) | 54.5 |
| Unpacked Width (mm) | 90 |
| Unpacked Height (mm) | 90 |
| Unpacked Net Weight (kg) | 0.24 |
Performance & Safety
| Lifetime (h) | 50000 |
| L/B at Life | L70-B50 |
| L70 Hours (h) | 50000 |
| Operating Temperature (C) | -25°C to +40°C |
| Power Factor | >0.9 |
| IK Rating | IK05 |
