Luxpack Batten Essence

The Luceco Luxpack Essence Batten is a durable surface-mounted LED that features a strong steel body and a large polycarbonate diffuser for better lighting consistency. Offering a Plug 'n' Play emergency pack installable on site.

View Product Family

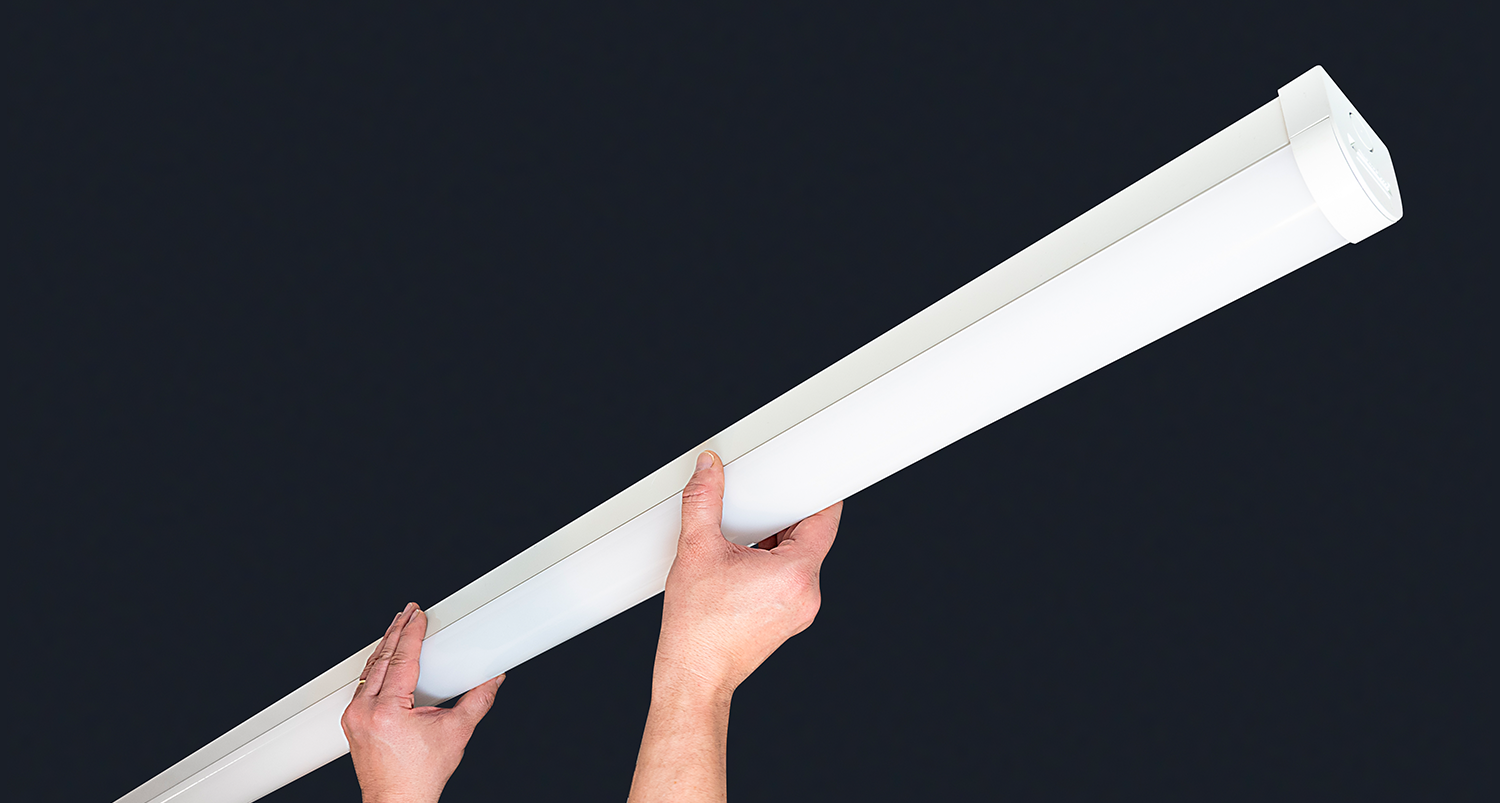

Luxpack Batten is a surface mounted linear batten with a robust steel constructed body. Offering BESA fixing points the large opal polycarbonate diffuser provided improved uniformity. Installation is made easy thanks to the quick slide release tabs which delivers straightforward plug and play fitting of the hinged LED diffuser.

Selectable CCT of 3000K,4000K and 6500K available to suit application

Plug 'n' Play Emergency Pack & Microwave sensor available, easily installable on site.

Replaceable driver & LED Array offering sustainability and the ability to replace failed parts on a modular basis.

Sliding release tabs for fast and easy installation of SpeedFit diffuser

Sustainable and Adaptable.
Industrial Illumination Made Easy.

Designed for sustainability, the Luceco Luxpack Essence offers unmatched flexibility for industrial lighting needs. Enjoy effortless installation, hassle-free maintenance, and superior performance. With replaceable LED boards and driver units, maintenance becomes a breeze, saving time and promoting eco-friendliness.

Adjustable Colour. Adjustable Power.

In-built selectors allow for effortless adaptation to varying lighting needs, whether you seek a vibrant, well-lit atmosphere or a more subdued, energy-conscious ambience. Seamlessly switch between power outputs and colour temperatures using a single switch, providing users with unprecedented control over their lighting environment.

3000K Warm White
4000K Cool White
6500K Daylight

Hassle-free and quick installation.

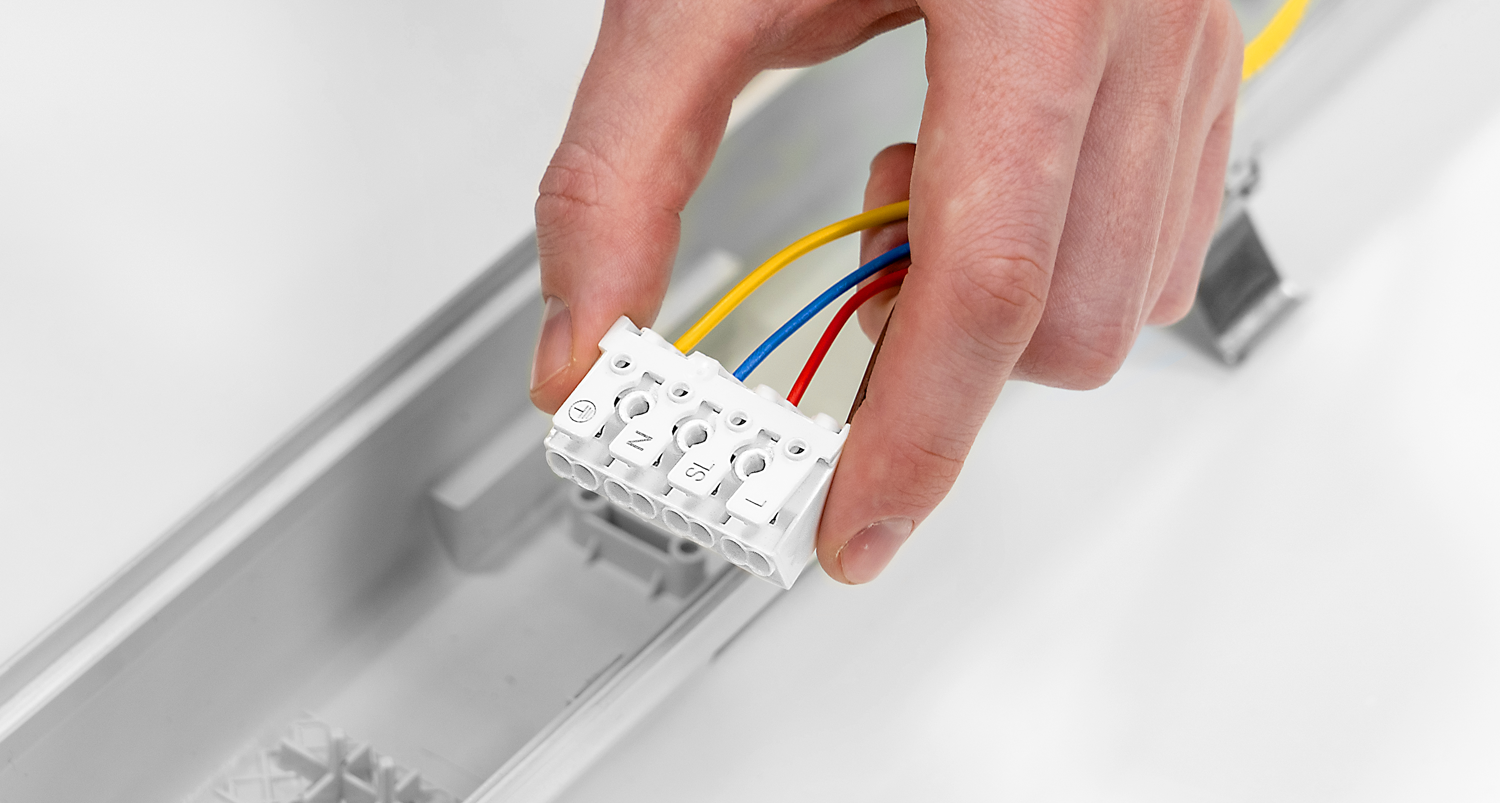

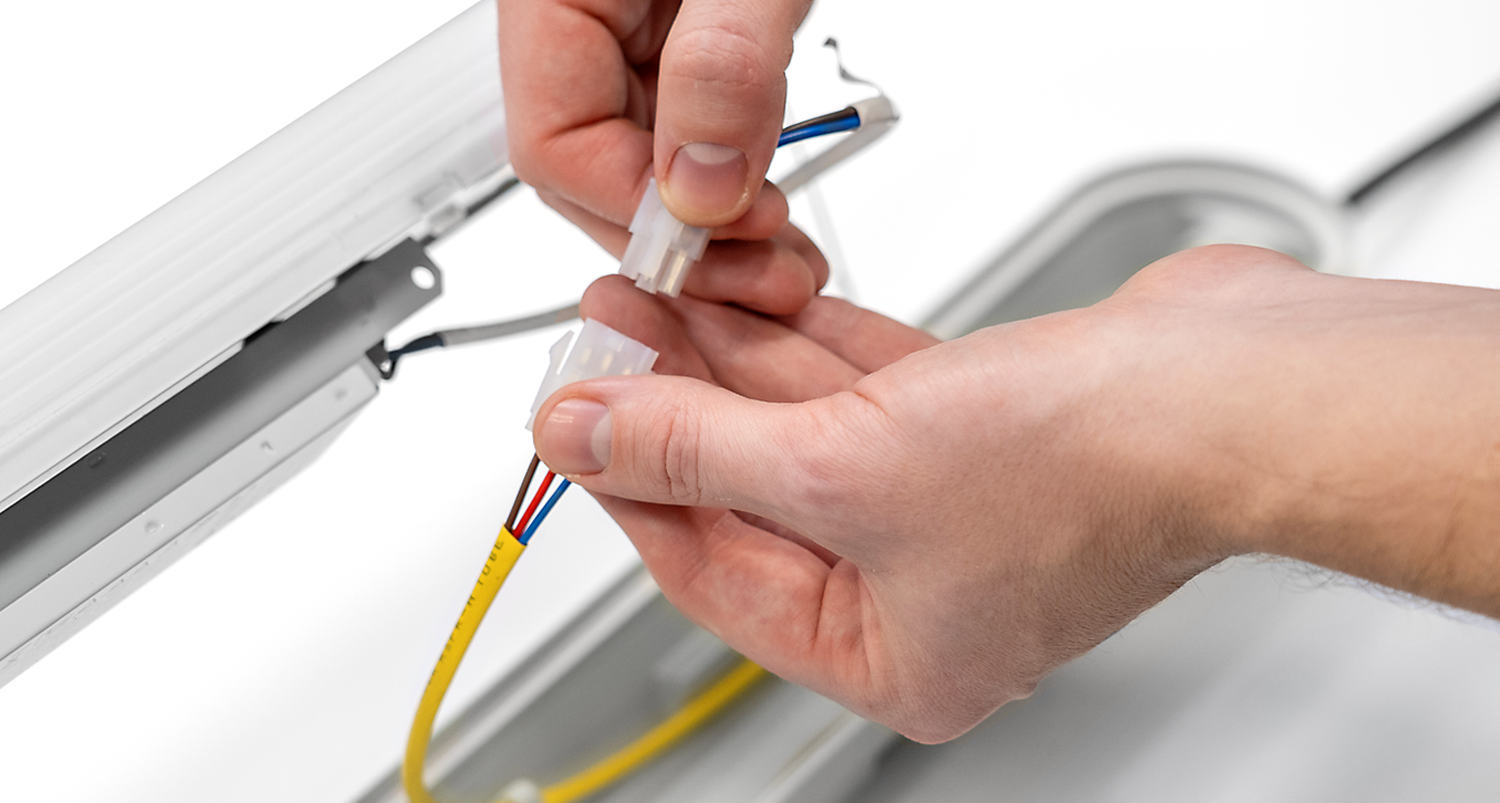

Designed for hassle-free installation with colour matched connectors and flexible first-fix bracket offer customers speed and accuracy of installation, minimising downtime and installation costs.

Flexible solutions. Versatility from a reduced range.

Utilising Plug-and-Play modules, the Climate Essence range is now much more flexible and versatile. In-built colour temperature and power selectors, combined with Emergency and Microwave pack compatibly, offers customisable solutions for all industrial and commercial applications, reducing stock holding needs and eliminating the decisions required ahead of time.

Code	Driver Type	Colour Temp (CCT) (K)	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code LXB12WL40	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 2400/4800	Max Wattage (W) 20/40	Efficacy (Lm/W) 120/120	Add to Spec Remove from Spec Processing
Code LXB12WLCC	Driver Type Fixed Output	Colour Temp (CCT) (K) 3000, 4000, 6500	Lumen Output (lm) 2400/4800	Max Wattage (W) 20/40	Efficacy (Lm/W) 120/120	Add to Spec Remove from Spec Processing
Code LXB12WLE40	Driver Type Fixed Output + Emergency	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 2400/4800	Max Wattage (W) 20/40	Efficacy (Lm/W) 120/120	Add to Spec Remove from Spec Processing
Code LXB12WLECC	Driver Type Fixed Output + Emergency	Colour Temp (CCT) (K) 3000, 4000, 6500	Lumen Output (lm) 2400/4800	Max Wattage (W) 20/40	Efficacy (Lm/W) 120/120	Add to Spec Remove from Spec Processing

Code	Driver Type	Colour Temp (CCT) (K)	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code LXB15WL40	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 3600/7200	Max Wattage (W) 30/60	Efficacy (Lm/W) 120/120	Add to Spec Remove from Spec Processing
Code LXB15WLCC	Driver Type Fixed Output	Colour Temp (CCT) (K) 3000, 4000, 6500	Lumen Output (lm) 3600/7200	Max Wattage (W) 30/60	Efficacy (Lm/W) 120/120	Add to Spec Remove from Spec Processing
Code LXB15WLE40	Driver Type Fixed Output + Emergency	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 3600/7200	Max Wattage (W) 30/60	Efficacy (Lm/W) 120/120	Add to Spec Remove from Spec Processing
Code LXB15WLECC	Driver Type Fixed Output + Emergency	Colour Temp (CCT) (K) 3000, 4000, 6500	Lumen Output (lm) 3600/7200	Max Wattage (W) 30/60	Efficacy (Lm/W) 120/120	Add to Spec Remove from Spec Processing

Code	Driver Type	Colour Temp (CCT) (K)	Lumen Output (lm)	Max Wattage (W)	Efficacy (Lm/W)	Add to Spec
Code LXB18WL40	Driver Type Fixed Output	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 4800/9500	Max Wattage (W) 37/75	Efficacy (Lm/W) 130/127	Add to Spec Remove from Spec Processing
Code LXB18WLE40	Driver Type Fixed Output + Emergency	Colour Temp (CCT) (K) 4000	Lumen Output (lm) 4800/9500	Max Wattage (W) 37/75	Efficacy (Lm/W) 130/127	Add to Spec Remove from Spec Processing
